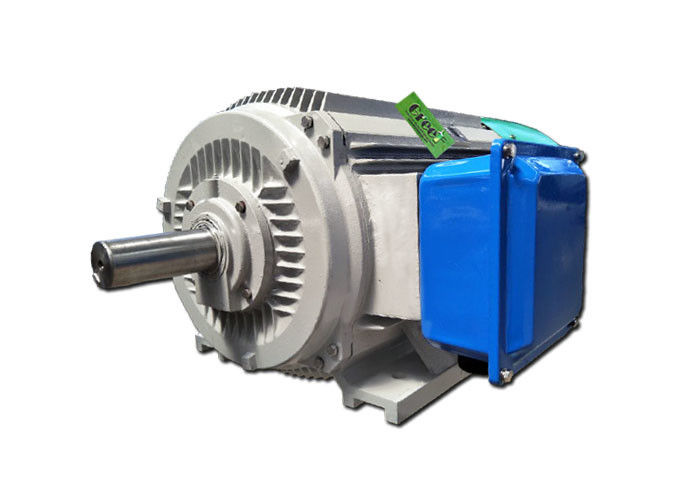

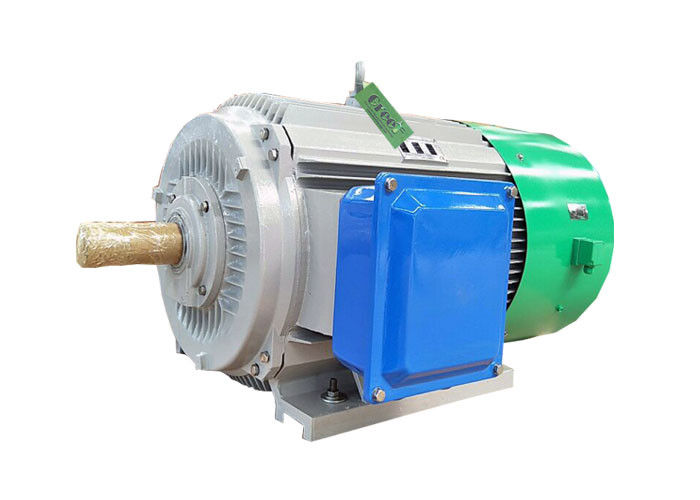

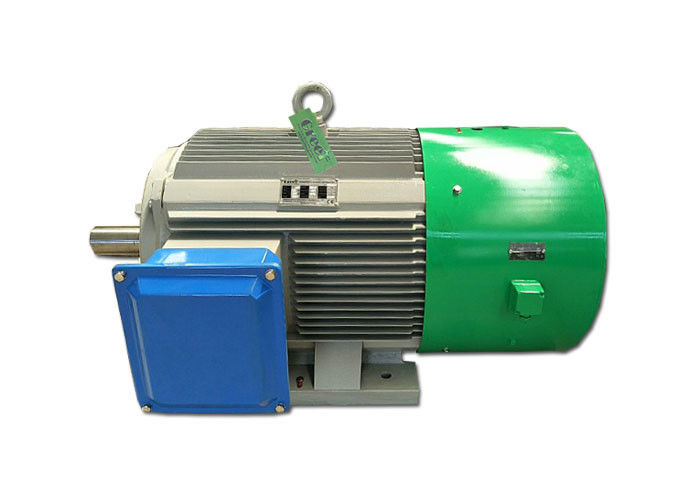

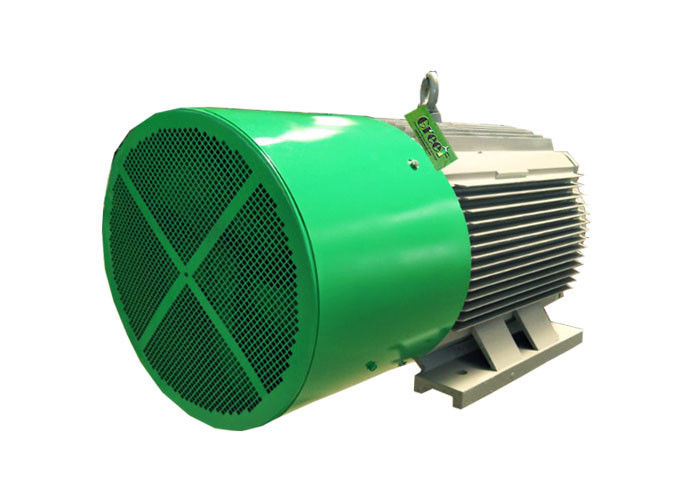

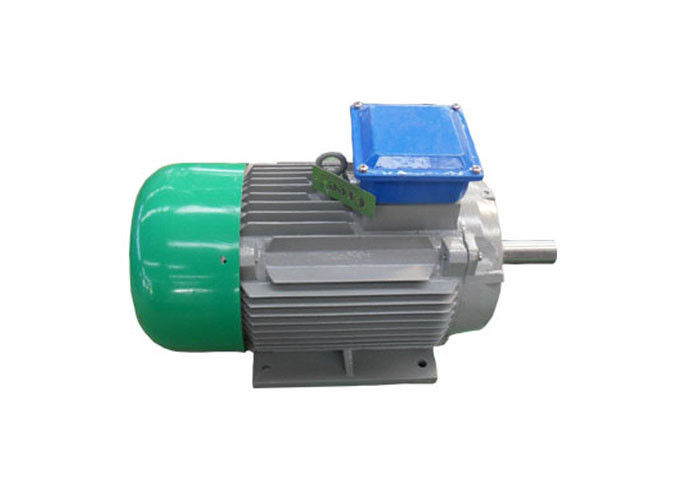

3 Phase Permanent Magnet Generator , Permanent Magnet Electric Generator

3 Phase Permanent Magnet Generator , Permanent Magnet Electric Generator

permanent magnet synchronous generator

low rpm wind turbine generator

Place of Origin:

CHINA

Brand Name:

GreeF

Certification:

CE

Model Number:

GDF

Contact Us
Request A Quote
Product Details
Rated Power:
0.5kW-5000kW
Rated Rotate Speed:
20rpm-3000rpm
Rated Voltage:
Customized
Magnet Type:
NdFeB
Winding Method:
Star/Y
Insulate Grade:
H
Generator Shell Material:
Cast Iron
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Foam + Plywooden Case
Delivery Time
20-25 working days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
400 sets per month
Product Description

 Permanent Magnet Alternator Generator







NOTICE:For Exactly Price please send your inquiry with your details request . POWER,SPEED,VOLTAGE etc.



Product Description



GreeF company supply variety of permaent magent generators which is suitable for driven by following equipment to

  1. Driven by Wind Power --------Wind turbine
  2. Driven by Water Power ------- Hydro generator
  3. Driven by Belt with  Motors
  4. Driven by Motor
  5. Dirven by test plant
  6. Dirven by yourselves  creation

Advantages:


 1. Rare earth Nd-Fe-B permanent magnet generator. energy save energy more than 15% than ordinary generators.

2. Permanent magnet rotor structure, no excitation winding, no carbon brushes, no slip rings, no need gear box. Simple structure, reliable ,durable and Maintenance free.

3. Multi poles design, improve the frequency and efficiency of rectifiers and inverters. Saving cost .

4. Started directly, without control cabinet, replace the asynchronous motor totally.

5. H class insulation, vacuum pressure impregnation.

6. Use SKF bearings

7. Power factor close to 1,no need add power factor compensation equipment.

8. Small heat, aslo can add fan cooling or water cooling

9. Long life time >20years, Strong rotors, could run at high speed.24hours 365days running.

10. Energy-saving, return investment within 1-2years.

3 Phase Permanent Magnet Generator , Permanent Magnet Electric Generator 0





Technical Data


 Generator type : Pemanent Magnet  Synchronous   Direct drive   3Phase  AC

Customized     Voltage, Speed, Power ,Frequency.

Customized shaft size ,Spline shaft, biaxial extension, flange can be used.

Varity structures design : vertical axis, horizontal axis, internal rotor, external rotor, plate type.    3 Phase Permanent Magnet Generator , Permanent Magnet Electric Generator 1





Drawing Sample





 3 Phase Permanent Magnet Generator , Permanent Magnet Electric Generator 2




Packaging & Shipping

1. Alternator for wind generator use inner foam protection outer Plywooden case .

2.Pakage size and weight please refer to our sales.

3.Shipping  by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request.



3 Phase Permanent Magnet Generator , Permanent Magnet Electric Generator 3




Our Services





Generators are free 3 years warranty, All lifelong  technical support and part cost supply.



(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.





Any questions, please feel free to contact us !
