Micro Coreless Permanent Magnet Generator , Magnet Motor Generator

Micro Coreless Permanent Magnet Generator , Magnet Motor Generator

low speed dc generator

low rpm wind generator

Place of Origin:

China

Brand Name:

GreeF

Certification:

CE

Model Number:

GDG

Contact Us
Request A Quote
Product Details
Rated Power:
50W-10KW
Option Rated Voltage:
Option Rated Voltage
Efficiency:
>85%
Structure:
Outer Rotor
Shaft Material:
Steel
Stator:
Coreless Wire Coil
Rotor:
Rare Earth Permanent Magnet
Generator Shell Material:
Aluminum Alloy
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Foam + Plywooden Case
Delivery Time
15-25 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
400 sets per month
Product Description

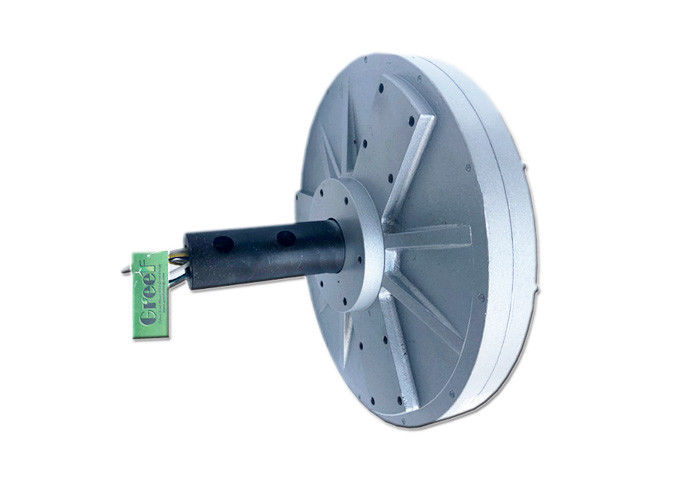

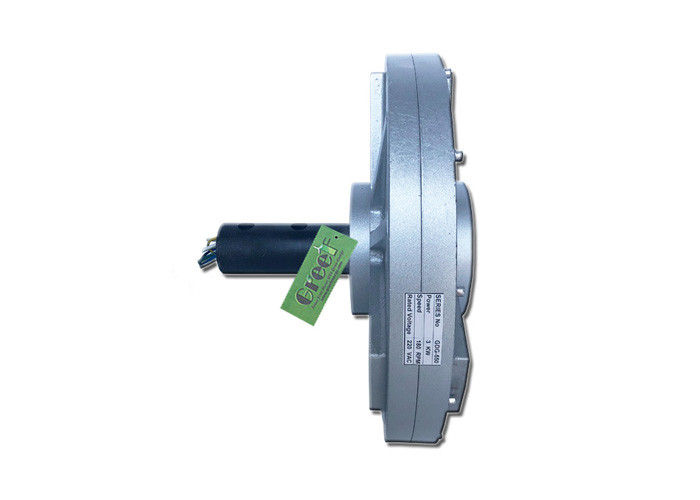

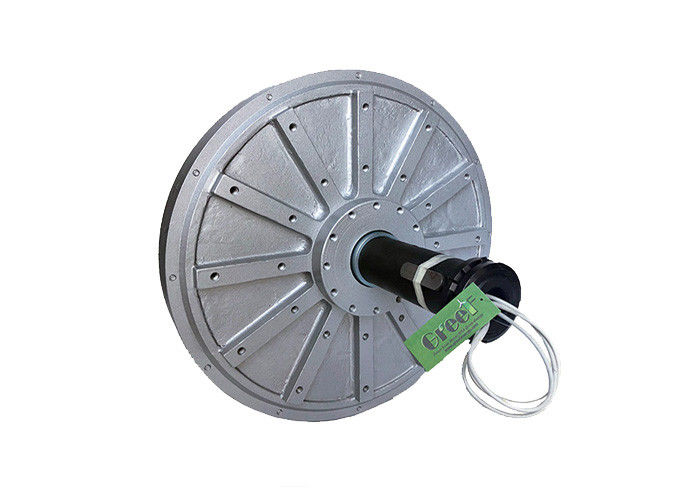

Disc Coreless Permanent Magnet Generator






Product Advantages





This Coreless Permanent Magnet always being used in vertical axis wind turbine, and other generator system which requests very low start torque and low rated rotate speed, low start wind speed, low weight and small size.



1 Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <0.1N.M
2 Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
3 Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
4 Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
5 Gearless, direct drive, low RPM generator.
6 High standard, quality components for use in harsh and extreme environments for wind turbines
7 High efficiency and Low mechanical resistance energy loss
8 Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.






Technical Data





Model GDG
Rated Power 5KW
Option Rated Voltage 220V-440Vac
Efficiency >85%
Wending Method Y
Insulating Resistance 100Mohm Min(500V DC)
Phase Type 3 Phase
Structure Outer rotor
Stator Coreless wire coil
Rotor Rare Earth Permanent Magnet
Generator shell material Aluminum alloy
Shaft material Carbon steel
Bearing NSK Deep groove ball bearing








Drawing Sample and Pictures














Application



 We can provide the complete generator system including Controller and Inverter:

Off-grid Generator System
GDG OFF-GRID.jpg

Micro Coreless Permanent Magnet Generator , Magnet Motor Generator 2






Company Information



--- Bureau Audited Supplier.

--- Products quality and on time delivery are guaranteed by alibaba.com.

--- 10 years’ experience engineer & QC team

--- 7days*24 hours on time service

--- Focus on after-sale service.

--- One stop customized system solution

--- Trade experience with more than 60 countries.

--- CE ,TUV, UL , RoHS, SAA certificated

--- OEM ,ODM are accepted







FAQ





1. Q: Is it possible to get a sample?

    A: Yes, we can provide just one generator to you.



2. Q: Can this coreless generator output Single Phase voltage?

    A: No, it can only output 3-Phase voltage.



3. Q: Can we make 3 Phase 4 Wires for this coreless generator?

    A: No, it can only make 3 Live Wires.



4. Q: Do you have more lower rpm for this coreless generator?

    A: Please tell our sales your other requirements like power, we will check it for you.





If you have other requirements, please feel free to contact us directly!
