Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC

Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC

Pitch Wind Turbine Generator

30KW Wind Turbine Generator

25m/s Horizontal Pitch Wind Turbine

Place of Origin:

QINGDAO

Brand Name:

GREEF

Certification:

CE

Model Number:

AH-30KW

Contact Us
Request A Quote
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Inner Foam + Plywooden case
Delivery Time
25DAY
Payment Terms
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
50
RELATED PRODUCTS
Good price 5.6M Rotor Diameter Home Wind Turbine System For Customer Requirements online Video

5.6M Rotor Diameter Home Wind Turbine System For Customer Requirements

Get Best Price
Good price Up Wind Yawing Pitch Control Wind Turbine 11.5 M/S Rated Wind Speed 60m/S 133.8mph online Video

Up Wind Yawing Pitch Control Wind Turbine 11.5 M/S Rated Wind Speed 60m/S 133.8mph

Get Best Price
Good price Start Torque 0.3N.M Three Phase Permanent AC Magnet Generator For Wind Electric Generator online Video

Start Torque 0.3N.M Three Phase Permanent AC Magnet Generator For Wind Electric Generator

Get Best Price
Good price Start Torque 0.3N.M Pitch Control Wind Turbine with FRP Blades Material Quantity 3PCS online Video

Start Torque 0.3N.M Pitch Control Wind Turbine with FRP Blades Material Quantity 3PCS

Get Best Price
Contact Us
Contact Now
Product Description
Horizontal Axis Wind Turbine

Model: 30KW Horizontal axis wind turbine |Off-grid system |on-grid system| Folding tower

Leading technology-intelligent control, strong system scalability
1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.

High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.

A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 0
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-30KW
Rotor diameter (m)
13.1
Blade material & Qty.
FRP *3
Rated power (kW)
30
Rated wind speed (m/s)
11
Rated rotating speed (r/min)
95
Generator type
3-phase PMG
Working wind speed (m/s)
3-30
Start-up wind speed(m/s)
2.5
Cut-in wind speed(m/s)
3
Survival wind speed (m/s)
60
Rated voltage (VDC)
450
Speed regulation method
Auto yawing+pitch-controlled
Wind answering method
Up wind+yawing
Stop method
Auto brake
Gale protection
Smart control+unattended
weight (kg)
2800
Noise level (dB)
≤65
Tower height (m)
≥20
Tower type
Free stand tower
Working temperature
-20℃～+50℃
Products Description
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 1
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 2
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 3
Project case

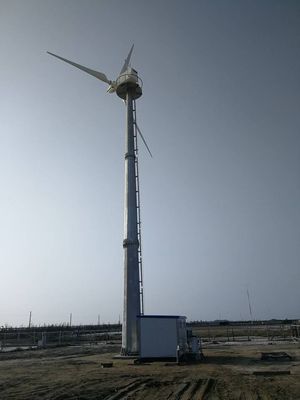

Seawater Desalination Project in Dafeng City Project at Xiliguole League in Inner Mongolia


Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 4
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 5

28 Farm On-grid Systems in Italy


Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 6
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 7

More projects


Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 8
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 9
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 10
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 11
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 12
Systems
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 13
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 14
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 15
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 16
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 17
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 18
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 19
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 20
Horizontal Axis 30KW Pitch Wind Turbine Generator 450VDC 21
