Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW

Certification
China Qingdao Greef New Energy Equipment Co., Ltd certification
China Qingdao Greef New Energy Equipment Co., Ltd certification
Customer Reviews
greef team is the best! i love them, they give professional and timely after-service. because of my unprofessional operation, the generator went wrong, but greef team helped me to solve this issue very patiently, the generator is good now, thanks again.

—— Jeam Mareie from Canada

¡Perfecto! Ayer, recibí este generador en Bogotá, muy buen generador. ¡Gracias

—— Stephen Brinker from Colombia

I ordered 10kW 100RPM model at the year of 2017, i ordered 1kW 180rpm this year, the disc generator has small torque,it is easy to rotate,thanks Greef new energy, I hope to do more buisness with more cheaper price on the year of 2019.

—— Prime Leisure from US

I'm Online Chat Now

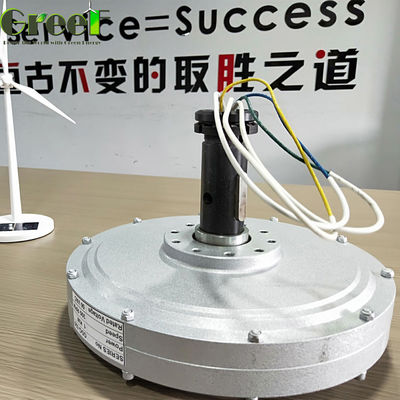

Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW

Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW
Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW

Large Image :  Low RPM Axial Flux Coreless Permanent Magnet Generator 50W 20kW

Product Details:

Place of Origin: QINGDAO
Brand Name: GREEF
Certification: CE
Model Number: GDG

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $299-12999
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAY
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 16
Detailed Product Description
Type: Wind Power Generator Rated Power: 300w-30kw
Rated Voltage: Customized Generator Type: 3 Phase AC Permanent-magnet
Application: Wind Hybrid System Blade Material: Aluminium Alloy
Warranty: 3 Years Frequency: 50hz/60hz
Rated Rotor Speed: 20-900RPM Rated Speed: 125rpm,100RPM-1200RPM
Start-up Wind Speed: 1.8-2.5m/s Generator Material: 100% Copper Wire+Nd-Fe-B
Color: Multi-color
High Light:

50W Coreless Permanent Magnet Generator

,

120RPM Coreless Permanent Magnet Generator

,

Axial Flux Low RPM Wind Generator

Low RPM Axial flux coreless permanent magnet generator
50W-20kW
They have two types: Outer Rotor and Inner rotor
Outer rotor: The shell will rotate to produce electricity, the shaft is fixed.
Inner rotor: The shaft will rotate to produce electricity, the shell is fixed.
3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine
Magnetic Generator Product Description



GreeF company supply modified kinds of Coreless Disk Permanent Magnet Generator. The main models are as follow:

Outer Rotor Model:

The shell will rotate to produce electricity, the shaft is fixed.

  • GDG-0.05kW 200RPM
  • GDG-0.1kW 200RPM
  • GDG-0.2kW 200RPM
  • GDG-0.3KW 200RPM
  • GDG-0.5KW 200RPM
  • GDG-1KW 180RPM
  • GDG-1KW 200RPM
  • GDG-2KW 120RPM
  • GDG-2KW 180RPM
  • GDG-3KW 100RPM
  • GDG-3KW 180RPM
  • GDG-5KW 100RPM
  • GDG-5KW 150RPM
  • GDG-10KW 100RPM
  • GDG-12kW 100RPM
  • GDG-20kW 150RPM

Inner Rotor Model:

The shaft(axis) will rotate to produce electricity, the shell is fixed.

  • GDI-0.05kW 200RPM
  • GDI-0.1kW 200RPM
  • GDI-0.2kW 200RPM
  • GDI-0.3kW 200RPM
  • GDI-0.5kW 200RPM
  • GDI-1kW 150RPM/180RPM/300RPM
  • GDI-2kW 180RPM
  • GDI-3kW 180RPM
  • GDI-5kW 100RPM





This is John, if you want to get the best price and more specification, also can contact us direatly:
Mobile:+86-13299938899(What app) Skype:greef_11
Email:greef@ greefenergy.cn Wechat:shunqiziran817412



The magnetic generators are always being used in vertical axis wind turbine generator, hydroelectric generator(water-power generator) and other generator system which requests very low start torque and low RPM.
Magnetic Generator Overview



The coreless disk permanent magenetic generator is made of high-stability Nd-Fe-B materials.



The specific outer rotor magnetic circuit is designed in a special way. The magnetic generator



has following features:



Low starting torque, Low start wind speed, Low weight,small size ,High generating efficiency

3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine




Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <1N.M

  • Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
  • Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
  • Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
  • Gearless, direct drive, low RPM generator.
  • High standard, quality components for use in harsh and extreme environments for wind turbines
  • High efficiency and Low mechanical resistance energy loss.
  • Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.



Magnetic Generator Technical Data



Model GDG-0.5KW-200 GDG-1KW-180 GDG-1KW-200 GDG-2KW-120 GDG-2KW-180
Rated Power 0.5KW 1KW 1KW 2KW 2KW
Rated Rotate Speed 200 RPM 180RPM 200RPM 120RPM 180RPM
Rated Voltage 56VAC 56VAC 56VAC 115VAC 115VAC
Rated Current 9A 12A 17.9A 10A 17.4A
Efficiency >85%
Wending Method Y
Insulating Resistance 100Mohm Min(500V DC)
Leakage Level <5 ma
Start Torque <0.1N/M <0.3 N/M <0.3 N/M <0.5 N/M <0.3 N/M
Phase Type 3 Phase
Structure Out rotor
Stator Coreless wire coil
Rotor Rare Earth Permanent Magnet
Generator Shell Diameter 320 380 380 550 450
Generator Shell Length 232 241 241 330 258
Weight 20 32 32 75 51
Shaft drameter 45 50 50 78 59
Generator shell material Aluminum alloy
Shaft material Carbon steel
Bearing Deep groove ball bearing







Model GDG-3KW-100 GDG-3KW-180 GDG-5KW-100 GDG-5KW-150 GDG-10KW-100
Rated Power 3KW 3KW 5KW 6KW 10KW
Rated Rotate Speed 100RPM 180RPM 100RPM 150RPM 100RPM
Rated Voltage 380VAC 380VAC 380VAC 380VAC 400VAC
Rated Current 4.6 4.7 7.6 15.2 14.5
Efficiency >85% >85% >88% >88% >88%
Wending Method Y Y Y Y Y
Insulating Resistance 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(501V DC)
Leakage Level <5 ma <5 ma <5 ma <5 ma <5 ma
Start Torque <1 N/M <0.5 N/M <0.5 N/M <1 N/M <1N/M
Phase Type 3 Phase 3 Phase 3 Phase 3 Phase 3 Phase
Structure Out rotor Out rotor Out rotor Out rotor Out rotor
Stator Coreless wire coil Coreless wire coil Coreless wire coil Coreless wire coil Coreless wire coil
Rotor Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet
Generator Shell Diameter 620 550 700 620 770
Generator Shell Length 410 330 400 410 590
Weight 110 65 125 110 245
Shaft drameter 80 78 98 80 85
Generator shell material Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
Shaft material Carbon steel Carbon steel Carbon steel Carbon steel Carbon steel
Bearing SKF Deep groove ball bearing SKF Deep groove ball bearing SKF Deep groove ball bearing SKF Deep groove ball bearing SKF Deep groove ball bearing





Magnetic Generator Drawing Sample




3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine

3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine





Magnetic Generator Power Curve

3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine

ON-LOAD Power Curve





3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine

If you need the datasheets specification of other model generator, please send the inquiry with your interested model (GDG or GDI series), we will send the details specification to you ASAP.



Magnetic Generator Pictures

3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine

3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine

3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine
Magnetic Generator Packaging & Shipping

1. The magnetic generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.

2. Pakage size and weight please refer to our sales.

3. Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request.

3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine






Our Services

OEM service



Our magnetic generator is free 3 years warranty, All lifelong technical support and part cost supply.



(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.





Company Information



3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine







FAQ



1. Q: Does installation Easy ?

A: Very easy, every customer can doing by themselves, we will supply all the components for installation and very detailed installation manual.



2. Q: Does our wnd is enough for a wind generator ?

A: As our wind generator can start running at low wind speed 3m/s. so your average annual wind speed is more than 5m/s then you can use it .



3. Q: Which model wind generator is suitable for me?

A: Plese contact our sales with following points :

1. What appliance do you want to running by the system? How many watts are they and their working time .

2. Your annual wind speed .

3. What kinds of system do you want ? On-grid or off-grid



4. Q:Can I only buy parts not whole system?

A: Yes,for example you can manufacture tower in local , we can suplly you tower drawing .



Any other questions ,please feel free to contact us .



Please send your inquiry,our team will contact you with 24 hours!



3kW Low RPM Axial flux coreless permanent magnet generator for vertical wind turbine

Contact Details
Qingdao Greef New Energy Equipment Co., Ltd

Contact Person: sales

Tel: +8619861460778

Send your inquiry directly to us (0 / 3000)
