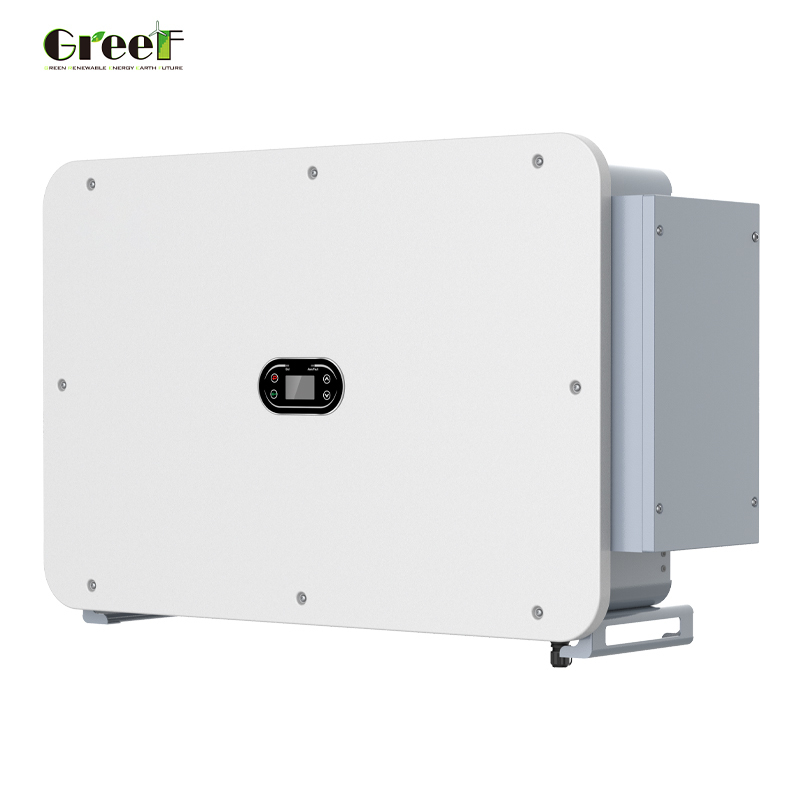

Name: 110kW On Grid Inverter 380V IP66 with WiFi 4G RS485
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: 3KW - 110KW
Price: 12999.00 USD
Availability: InStock

Home > products > On Grid Inverter >

110kW On Grid Inverter 380V IP66 with WiFi 4G RS485

110kW on grid inverter 380V

on grid inverter with WiFi 4G

IP66 on grid inverter RS485

Brand Name:

Greef

Certification:

Model Number:

3KW - 110KW

Request A Quote

110kW On Grid Inverter 380V IP66 with WiFi 4G RS485

Product Details

Ingress Protection:

IP66

Rated Output Voltage:

380V

Altitude:

≤2000m

Rated Power:

3kW-110kw

Warranty:

5 Years

Data Interfaces:

RS485 / WiFi / 4G

Mppt Efficiency:

99.9%

Rated Frequency:

50 Hz / 60 Hz

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

3kW-110kW On Grid Inverter with RS485 IP66 5-Year Warranty

Get Best Price

Greef Grid-Tied Inverter 3KW-110KW with IP66 Protection

Get Best Price

CE Certified On Grid Inverter 3kW-110kW with MPPT 50V-1000V

Get Best Price

RS485 WiFi 4G Grid-Tied Inverter with MPPT 50V-1000V

Get Best Price

Contact Now

Product Description

110kW On Grid Inverter with 99.9% MPPT Efficiency

Key Features

High MPPT efficiency of 99.9% for optimal energy harvesting
Rated output voltage of 380V with wide voltage range (220Vac-540Vac)
IP66 protection rating for harsh outdoor environments
Advanced safety mechanisms including DC reverse protection and anti-islanding
Multiple communication options: RS485, WiFi, and 4G
5-year warranty for long-term reliability
Wide operating temperature range (-30°C to +60°C)

Technical Specifications

Attribute	Value
Ingress Protection	IP66
Rated Output Voltage	380V
Altitude	≤2000m
Rated Power	3kW-110kW
Warranty	5 Years
Data Interfaces	RS485 / WiFi / 4G
MPPT Efficiency	99.9%
Rated Frequency	50 Hz / 60 Hz

Product Overview

INVT grid-connected inverter products deliver exceptional performance in PV systems through advanced technology. The intelligent diagnostic system precisely locates PV string faults and analyzes AC-side abnormalities via real-time waveform recording. With optional Arc Fault Protection (AFCI), it provides comprehensive safety from detection to response.

Featuring a wide MPPT voltage range and 98.8% conversion efficiency, this inverter significantly boosts power generation. The DC overmatching function enhances system expansion flexibility. Remote monitoring via RS485/WiFi/4G reduces on-site maintenance needs, while IP66 protection ensures durability in harsh environments.

Applications

Suitable for industrial, commercial, and residential applications, this solution supports clean energy projects in achieving high-efficiency, low-carbon development goals.

Detailed Parameters

Model	XG1KTL-S	XG2KTL-S	XG3KTL-S	XG4KTL-S	XG5KTL-S
Input (DC)
Max. Input Power	1.5kW	3kW	4.5kW	6kW	7.5kW
Max. Input Voltage	600V
Start Voltage	60V
Rated Input Voltage	360V
MPPT Voltage Range	50V ~ 550V
Number of MPP Trackers / String per MPPT	1 / 1
Max. Current per MPPT	20A
Max. Short Circuit Current per MPPT	26A
Output (AC)
Max. Output Current	5A	10A	15A	20A	22.7A
Rated Output Power	1kW	2kW	3kW	4kW	5kW
Max. Output Power	1.1kVA	2.2kVA	3.3kVA	4.4kVA	5kVA
Rated Grid Frequency	50Hz / 60Hz
Rated Grid Voltage	220Vac / 230Vac / 240Vac
Power Factor	>0.99 (0.8 leading ~ 0.8 lagging)
THDi	3%(Rated Power)
MPPT Efficiency	99.90%

The above table shows select product parameters. Contact our sales team for additional model specifications.

System Solution

Custom system solutions available - Contact our technical team to design a solution tailored to your specific requirements.

Customization Options

Brand Name: Greef
Model Number: 3KW - 110KW
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging: Foam + plywood case
Delivery Time: 25 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Warranty: 5 Years

Packaging & Shipping

Each inverter is securely packaged in protective materials within foam-lined plywood cases to ensure safe transportation. Orders are processed within 1-2 business days and shipped via reliable carriers with tracking information provided upon dispatch.
