Brand Name:
Greef
Certification:
CE
Model Number:
3KW - 110KW
| Attribute | Value |
|---|---|
| MPPT Voltage Range | 50V ~ 1000V |
| Power Output | 3kW-110kW |
| Max. Operating Altitude | 4000m |
| Protection | IP66 |
| Temperature Protection | Yes |
| Grid Monitoring | Yes |
| Output Voltage | 220V-540V |

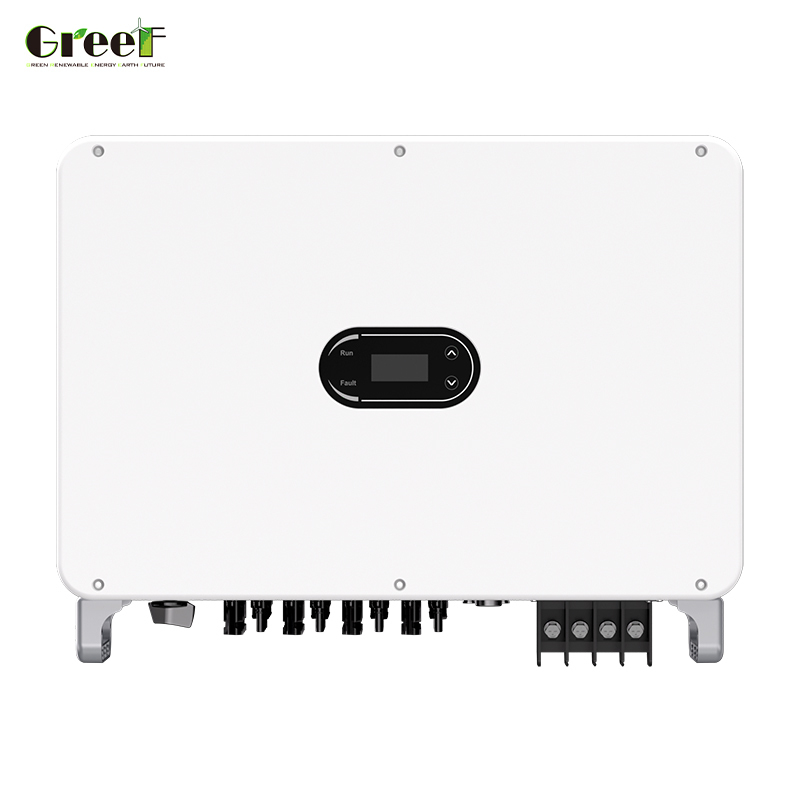

INVT grid-connected inverter products demonstrate excellent performance in PV systems through advanced technological advantages. The intelligent diagnostic system accurately locates PV string faults and analyzes AC side abnormalities via real-time waveform recording. Combined with the optional Arc Fault Protection Function (AFCI), it provides comprehensive safety from detection to response.
The wide MPPT voltage range design, with conversion efficiency up to 98.8%, significantly improves power generation. The DC overmatching function enhances system expansion flexibility. For operation and maintenance, the inverter supports multi-mode remote monitoring (RS485/WiFi/4G) with a simple interface, reducing on-site maintenance needs.
With IP66 protection, the inverter withstands harsh outdoor environments and integrates multiple safety mechanisms including DC reverse protection, anti-islanding, and surge protection. Compatible with high power components and featuring multi-MPP tracking technology, it's suitable for industrial, commercial, and residential applications.
| Model | XG1KTL-S | XG2KTL-S | XG3KTL-S | XG4KTL-S | XG5KTL-S |
|---|---|---|---|---|---|
| Input (DC) | |||||
| Max. Input Power | 1.5kW | 3kW | 4.5kW | 6kW | 7.5kW |
| Max. Input Voltage | 600V | ||||
| Start Voltage | 60V | ||||
| Rated Input Voltage | 360V | ||||
| MPPT Voltage Range | 50V ~ 550V | ||||
| Number of MPP Trackers / String per MPPT | 1 / 1 | ||||
| Max. Current per MPPT | 20A | ||||
| Max. Short Circuit Current per MPPT | 26A | ||||
| Output (AC) | |||||
| Max. Output Current | 5A | 10A | 15A | 20A | 22.7A |
| Rated Output Power | 1kW | 2kW | 3kW | 4kW | 5kW |
| Rated Grid Frequency | 50Hz / 60Hz | ||||
| Rated Grid Voltage | 220Vac / 230Vac / 240Vac | ||||
| THDi | 3%(Rated Power) | ||||
| MPPT Efficiency | 99.90% | ||||
We can customize the system to your specific requirements - please contact us for details.
This versatile solution is suitable for industrial, commercial, and residential environments, supporting clean energy initiatives to achieve high-efficiency, low-carbon development goals.
The brand name of the On Grid Inverter is Greef.
The On Grid Inverter is available in models ranging from 3KW to 110KW.
The On Grid Inverter is CE certified.
The minimum order quantity is 1 set.
We accept T/T, Western Union, and MoneyGram payments.
