Brand Name:
Greef
Certification:
CE
Model Number:
3KW - 110KW
| Attribute | Value |
|---|---|
| Rated Frequency | 50 Hz / 60 Hz |
| Output Voltage Range | 220Vac -540Vac |
| Rated Power | 3kW-110kw |
| Altitude | ≤2000m |
| Rated Output Voltage | 380V |
| Ingress Protection | IP66 |
| Mppt Efficiency | 99.9% |
| Warranty | 5 Years |

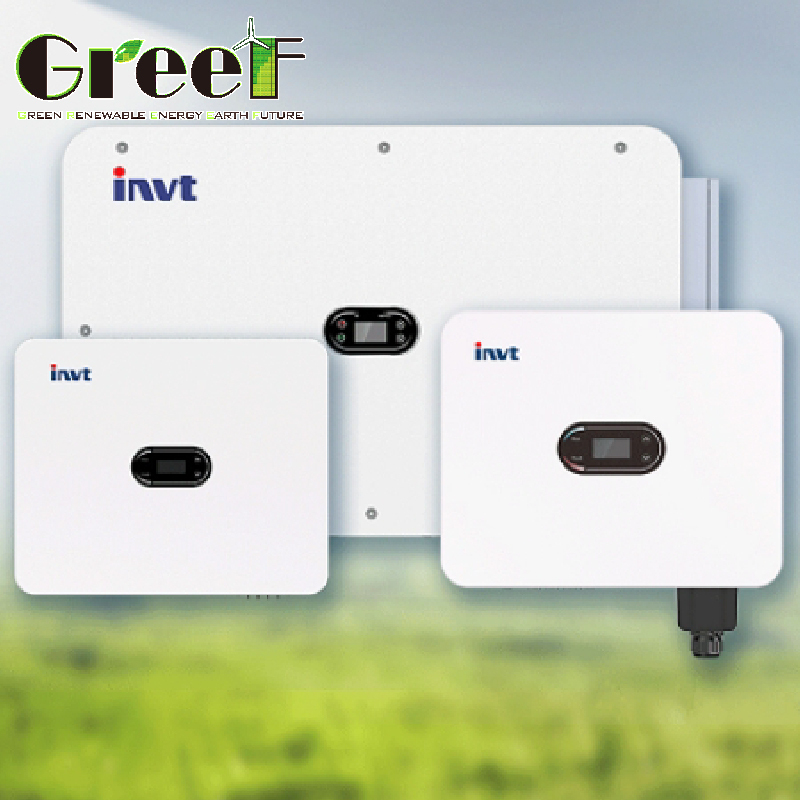

INVT grid-connected inverter products demonstrate excellent performance in PV systems through multiple core technology advantages:
| Model | XG1KTL-S | XG2KTL-S | XG3KTL-S | XG4KTL-S | XG5KTL-S |
|---|---|---|---|---|---|
| Input (DC) | |||||
| Max. Input Power | 1.5kW | 3kW | 4.5kW | 6kW | 7.5kW |
| Max. Input Voltage | 600V | ||||
| Start Voltage | 60V | ||||
| Rated Input Voltage | 360V | ||||
| MPPT Voltage Range | 50V ~ 550V | ||||
| Number of MPP Trackers / String per MPPT | 1 / 1 | ||||
| Max. Current per MPPT | 20A | ||||
| Max. Short Circuit Current per MPPT | 26A | ||||
| Output (AC) | |||||
| Max. Output Current | 5A | 10A | 15A | 20A | 22.7Ad |
| Rated Output Power | 1kW | 2kW | 3kW | 4kW | 5kWa |
| Max. Output Power | 1.1kVA | 2.2kVA | 3.3kVA | 4.4kVA | 5kVAc |
| Rated Grid Frequency | 50Hz / 60Hz | ||||
| Rated Grid Voltage | 220Vac / 230Vac / 240Vac | ||||
| Power Factor | >0.99 (0.8 leading ~ 0.8 lagging) | ||||
| THDi | 3%(Rated Power) | ||||
| MPPT Efficiency | 99.90% | ||||
Suitable for industrial, commercial, household, and other scenarios. Helps clean energy projects achieve high efficiency and low-carbon development goals.
The On Grid Inverter is carefully packaged in a sturdy cardboard box with ample cushioning materials to prevent damage during transit.
We partner with reliable shipping carriers and provide tracking numbers for all shipments.
