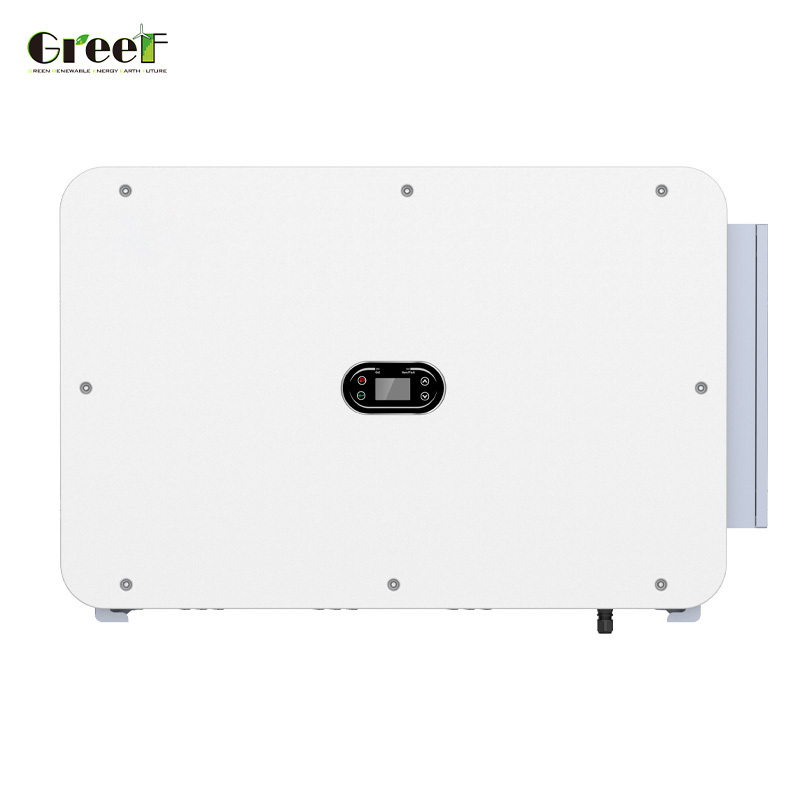

CE Certified On Grid Inverter MPPT Voltage Range 50V-1000V
Key Features
- Max. Operating Altitude: 4000m
- Display: LCD / LED+APP
- Temperature Protection: Yes
- Communication: RS485 / WiFi / 4G
- Certifications: CE, TUV, SAA
- MPPT Voltage Range: 50V ~ 1000V
- Output Voltage Range: 360-440VAC
- Power Output: 3kW-110kW
Technical Specifications
| Model |
XG1KTL-S |
XG2KTL-S |
XG3KTL-S |
XG4KTL-S |
XG5KTL-S |
| Input (DC) |
| Max. Input Power |
1.5kW |
3kW |
4.5kW |
6kW |
7.5kW |
| Max. Input Voltage |
600V |
| Start Voltage |
60V |
| Rated Input Voltage |
360V |
| MPPT Voltage Range |
50V ~ 550V |
| Number of MPP Trackers / String per MPPT |
1 / 1 |
| Max. Current per MPPT |
20A |
| Max. Short Circuit Current per MPPT |
26A |
| Output (AC) |
| Max. Output Current |
5A |
10A |
15A |
20A |
22.7A |
| Rated Output Power |
1kW |
2kW |
3kW |
4kW |
5kW |
| Max. Output Power |
1.1kVA |
2.2kVA |
3.3kVA |
4.4kVA |
5kVA |
| Rated Grid Frequency |
50Hz / 60Hz |
| Rated Grid Voltage |
220Vac / 230Vac / 240Vac |
| THDi |
3%(Rated Power) |
| MPPT Efficiency |
99.90% |
Note: The above table shows only a few product parameters. For other model specifications, please contact our sales team.
Product Highlights
INVT grid-connected inverters deliver exceptional performance in PV systems through advanced technological advantages. The intelligent diagnostic system precisely identifies PV string faults and analyzes AC-side anomalies via real-time waveform recording. When combined with the optional Arc Fault Protection Function (AFCI), it creates a comprehensive safety mechanism from detection to response.
Featuring a broad MPPT voltage range design and up to 98.8% conversion efficiency, this inverter significantly enhances power generation. It supports DC overmatching for increased system expansion flexibility.
Operation & Maintenance
The inverter offers multi-mode remote monitoring (RS485/WiFi/4G) to reduce on-site maintenance needs. With IP66 protection, it withstands challenging outdoor conditions and includes over ten safety mechanisms (DC reverse protection, anti-islanding, surge protection) to ensure system stability.
Compatible with high-power components, the product utilizes multi-MPP tracking technology to enhance single-loop accuracy. Suitable for industrial, commercial, and residential applications, it supports clean energy projects in achieving high-efficiency, low-carbon development goals.
Product Images
System Solution
Customization Options
Brand Name: Greef
Model Number: 3KW - 110KW
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging: Foam+plywood case
Delivery Time: 25 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Output Voltage Range: 360-440VAC
Integrated DC Switch: Yes
Certifications: CE, TUV, SAA
Grid Monitoring: Yes
Frequently Asked Questions
Q: What is the brand name of the On Grid Inverter?
A: The brand name is Greef.
Q: What are the available model numbers?
A: Models range from 3KW to 110KW.
Q: What certification does the inverter have?
A: The product is CE certified.
Q: What is the minimum order quantity?
A: Minimum order is 1 Set.
Q: What payment methods are accepted?
A: We accept T/T, Western Union, and MoneyGram.
