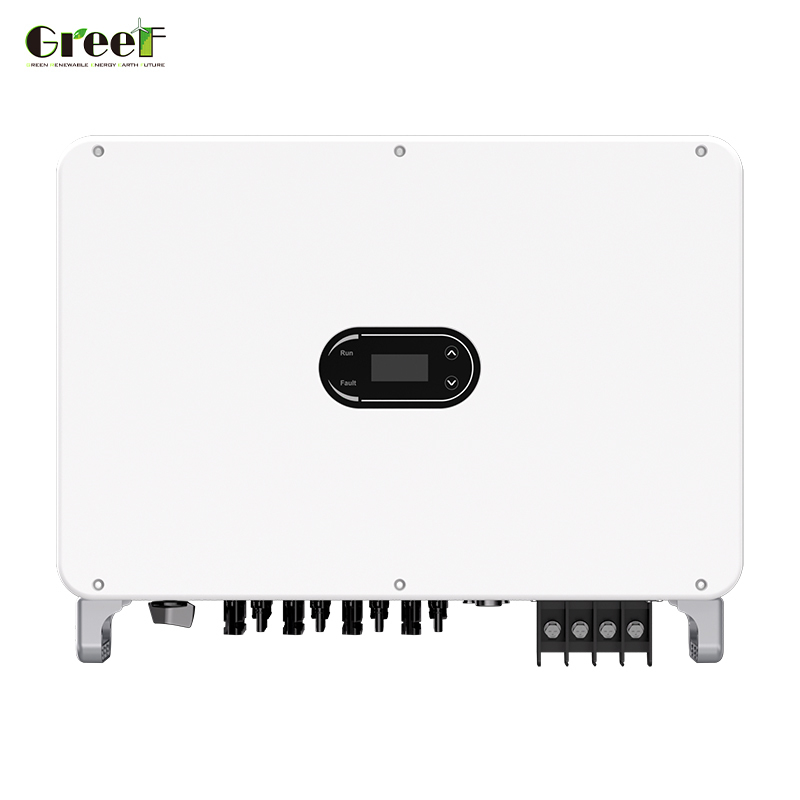

Max. Operating Altitude 4000m Choose Grid-Connected Inverter with Integrated DC Switch
Key Features
- Rated AC Frequency: 50/60Hz
- Protection: IP66
- Output Voltage: 220V-540V
- Temperature Protection: Yes
- Output Voltage Range: 360-440VAC
- Display: LCD / LED+APP
- Certifications: CE, TUV, SAA
- Grid Monitoring: Yes
Product Description
INVT grid-connected inverter products showcase outstanding performance in PV systems due to a range of core technological advantages. The intelligent diagnostic system accurately identifies faults in PV strings and promptly analyzes AC side abnormalities by recording real-time waveforms.
With the optional Arc Fault Protection Function (AFCI), it establishes a comprehensive safety mechanism from detection to response. The product features a wide MPPT voltage range design, along with an industry-leading conversion efficiency of up to 98.8%, significantly boosting power generation. Moreover, it supports DC overmatching function to enhance system expandability.
Applications
Well-suited for various scenarios including industrial, commercial, household, and others. This technology plays a key role in achieving the objectives of high efficiency and low carbon emissions for clean energy projects.
Product Parameters
| Model |
XG1KTL-S |
XG2KTL-S |
XG3KTL-S |
XG4KTL-S |
XG5KTL-S |
| Input (DC) |
| Max. Input Power |
1.5kW |
3kW |
4.5kW |
6kW |
7.5kW |
| Max. Input Voltage |
600V |
| Start Voltage |
60V |
| Rated Input Voltage |
360V |
| MPPT Voltage Range |
50V ~ 550V |
| Number of MPP Trackers / String per MPPT |
1 / 1 |
| Max. Current per MPPT |
20A |
| Max. Short Circuit Current per MPPT |
26A |
| Output (AC) |
| Max. Output Current |
5A |
10A |
15A |
20A |
22.7Ad |
| Rated Output Power |
1kW |
2kW |
3kW |
4kW |
5kWa |
| Max. Output Power |
1.1kVA |
2.2kVA |
3.3kVA |
4.4kVA |
5kVAc |
| Rated Grid Frequency |
50Hz / 60Hz |
| Rated Grid Voltage |
220Vac / 230Vac / 240Vac |
| THDi |
3%(Rated Power) |
| MPPT Efficiency |
99.90% |
The above table shows only a few of the product parameters. For parameters of other product models, please contact our sales staff.
Customization
Brand Name: Greef
Model Number: 3KW - 110KW
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Foam+plywooden Case
Delivery Time: 25 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Output Voltage Range: 360-440VAC
Output Voltage: 220V-540V
Grid Monitoring: Yes
Communication: RS485 / WiFi / 4G
Temperature Protection: Yes
Frequently Asked Questions
Q: What is the brand name of the On Grid Inverter product?
A: The brand name of the On Grid Inverter product is Greef.
Q: What is the model range available for the On Grid Inverter?
A: The model range for the On Grid Inverter is from 3KW to 110KW.
Q: What certification does the On Grid Inverter product have?
A: The On Grid Inverter product is certified with CE.
Q: What are the accepted payment terms for purchasing the On Grid Inverter?
A: The accepted payment terms for purchasing the On Grid Inverter are T/T, Western Union, and MoneyGram.
Q: What is the packaging details for the On Grid Inverter product?
A: The packaging details for the On Grid Inverter product include Foam+plywooden Case.
