Product Details:
Payment & Shipping Terms:
|
| Rated Power: | 200W | Start Wind Speed: | 1m/s |
|---|---|---|---|
| Rated Wind Speed: | 10m/s | Rated Rotor Speed: | 200RPM |
| Generator Type: | Disc Coreless Permanent Magnent Generator | Generator Material: | Aluminium Body+copper Wire+Nd-Fe-B |
| Blades Number/Material: | 3pcs / FRP | Optional Voltage: | 12 - 24Vac |
| Tower Height: | 6m Free Folding Tower | ||
| High Light: | vertical axis wind turbine,12 volt wind generator |
||

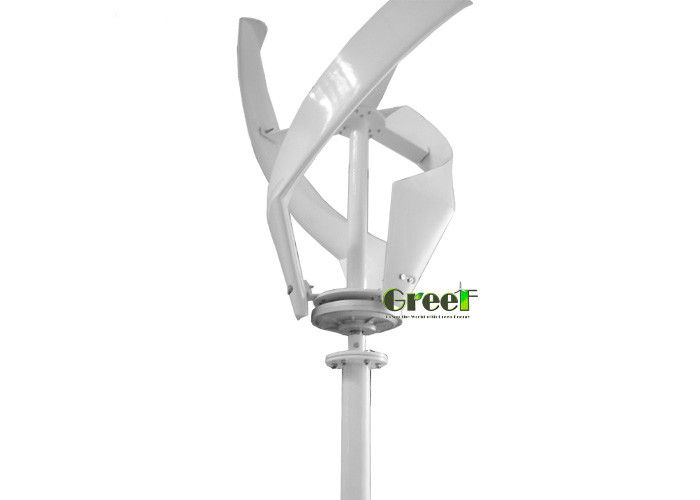

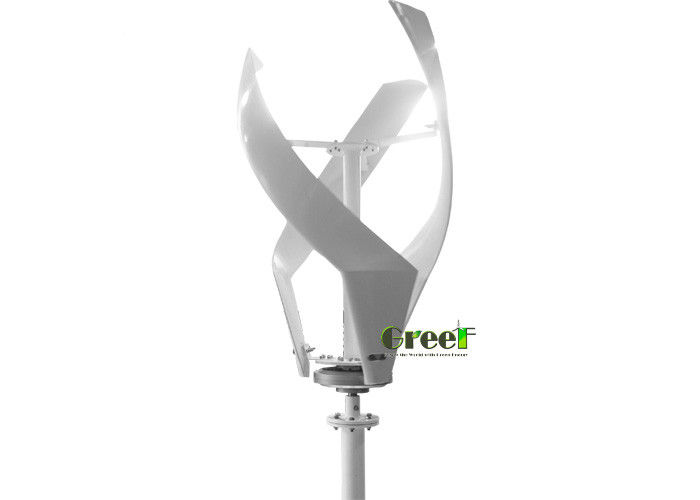

200W Vertical Axis Wind Turbine
Product Parameters
200W vertical axis wind mill are a type of wind turbine where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. they are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.
GreeF 200W vertical axis wind mill are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.
Project Details Show
| Model | ROSE-2.0 |
| Performance | |
| Rated Power | 200W |
| Max Power | 250W |
| Start Wind Speed | 1.0m/s (2.24mph) |
| Rated Wind Speed | 10m/s(22.4mph) |
| Working Wind Speed | 1-25m/s (2.24-56 mph) |
| Safety Wind Speed | 50m/s(112mph) |
| Physical Parameters | |
| Blades Length | 1.16M(3.80ft) |
| Blades Rotor Diameter | 0.75M(2.46ft) |
| Blades Material &Quantity | FRP /3PCS |
| Mill Weight | 33kg(11+22) |
| Swept Area | 0.90㎡ |
| Tower Height | 6m(19.68ft.) |
| Generator Parameters | |

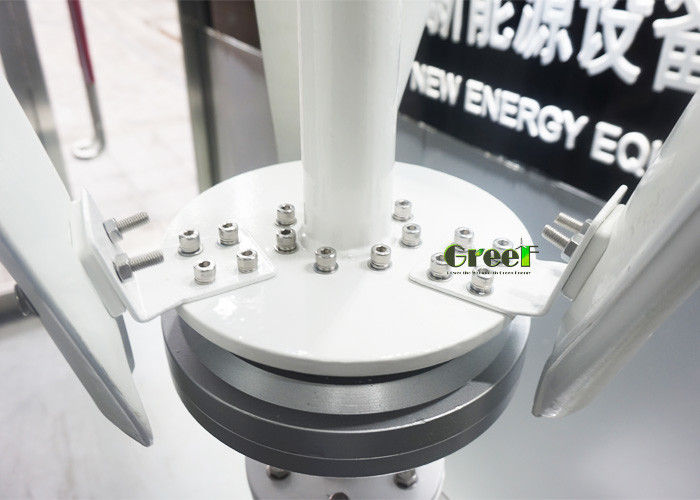

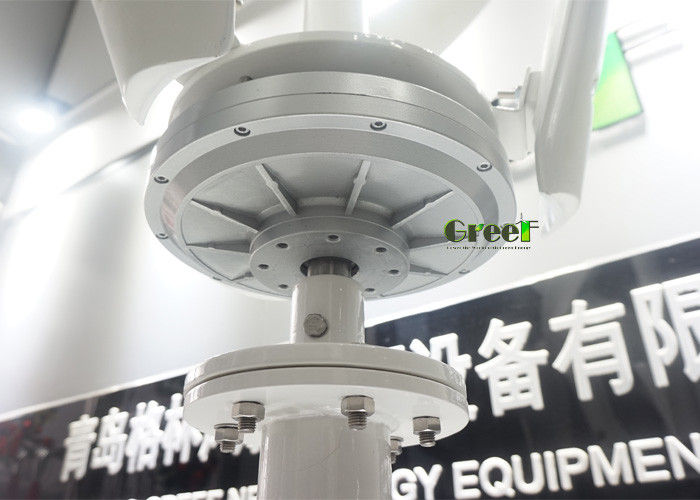

| Generator Type | Axial Flux Coreless outer rotor disc permanent magnet direct drive generator |
| Rated Speed | 200RPM |
| Start Torque | <0.1N.M |
| Option Voltage | 12-24V |
| Protection Method | Electromagnetic Brake +PWM |
| Protection Grade | IP54 |
| Working Temperature | -40-50℃ |
| Life time | 20 Years |
Application
Project Show
Packaging and Shipping
Our Company
Qingdao Greef New Energy Equipment Co., Ltd are global supplier, Gold Plus Supplier on Alibaba.com.
As TOP 3 supplier of generator products all our products quantliy and on time delivery are guaranteed by alibaba.com.
Our main Vertical Axis Wind Turbines are free 3 years warranty
All lifelong technical support and part cost supply.
