Name: 3KW Vertical Axis Wind Turbine Generator For Home And Commercial Use CE Certificate
Brand: GreeF
SKU: GV-3KW
Price: 1 USD
Availability: InStock
Rating: 4.6 (165 reviews)

Home > products > Vertical Axis Wind Turbine >

3KW Vertical Axis Wind Turbine Generator For Home And Commercial Use CE Certificate

3KW Vertical Axis Wind Turbine Generator

Home Vertical Axis Wind Turbine Generator

3KW vertical wind turbine for home use

Place of Origin:

CHINA

Brand Name:

GreeF

Certification:

Model Number:

GV-3KW

Request A Quote

3KW Vertical Axis Wind Turbine Generator For Home And Commercial Use CE Certificate

Product Details

Rated Power:

3KW

Start Wind Speed:

2.8m/s (6.27mph)

Rated Wind Speed:

12m/s(26.88mph)

Generator Type:

Disc Coreless Permanent Magnent Generator

Generator Material:

Aluminium Body+copper Wire+Nd-Fe-B

Rated Rotor Speed:

160RPM

Rated Option Voltage:

48-380V

Blades Material:

FRP

Blades Quantity:

3PCS

Warranty:

3 Years

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Packaging Details

Foam + Plywooden Case

Delivery Time

25-35 Working Days

Payment Terms

L/C, T/T, Western Union

3 AC Phase 300W Low Start Vertical Axis Wind Turbines For Home

Get Best Price

3 AC Phase 300W Low Noise Vertical Axis Wind Turbines For Home

Get Best Price

300W Low Noise AC 3 Phase Rugged Vertical Axis Wind Turbines For Home

Get Best Price

300W Low Rpm Rugged Vertical Axis Wind Turbines For Home / Supermarket

Get Best Price

Contact Now

Product Description

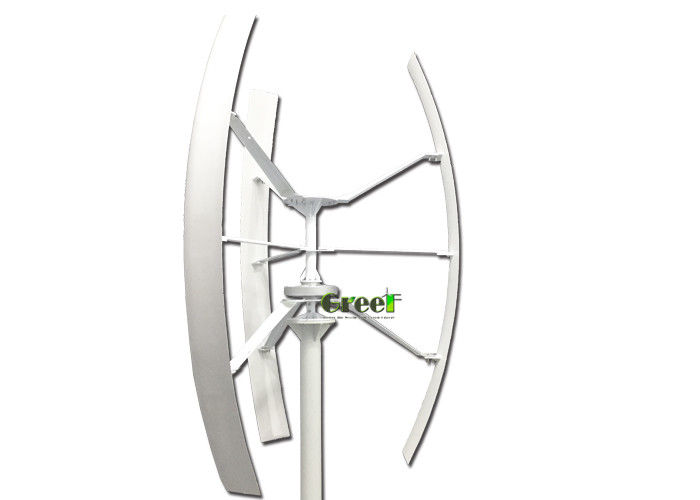

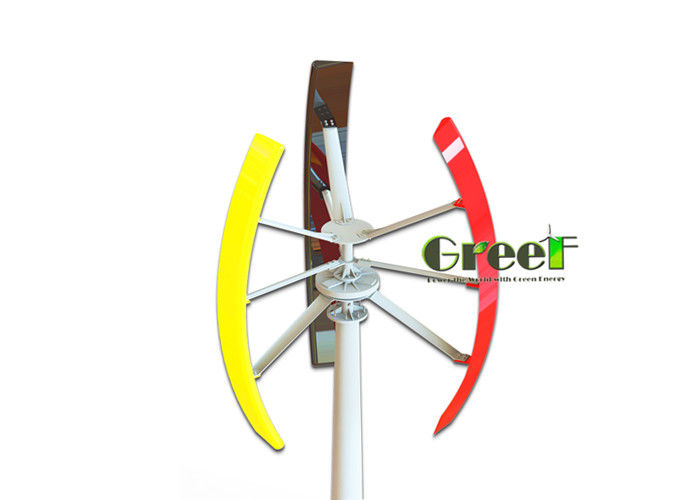

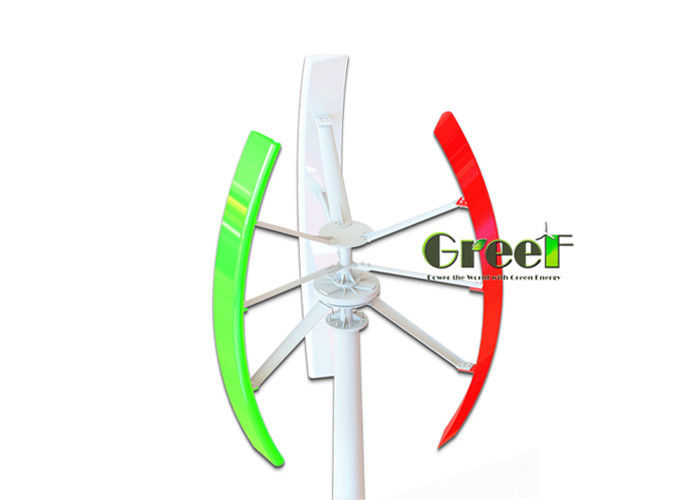

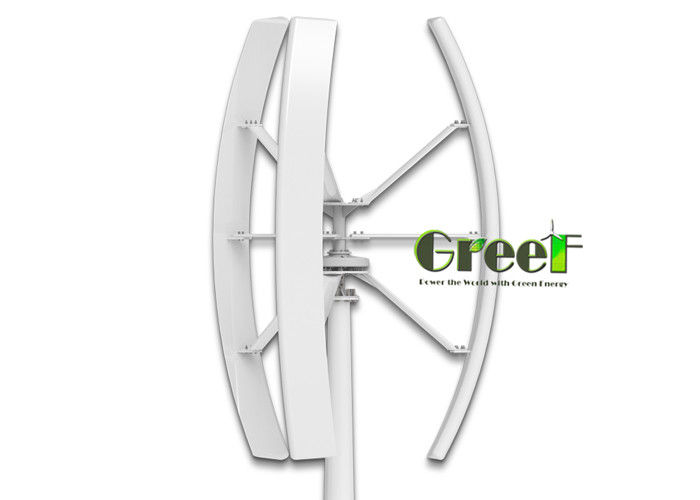

3KW Vertical Axis Wind Turbine Generator , CE Certificate Wind Generator for Home and Commercial Use

●Simple structure ,1hour installation

Technical specification

Model	GV-2KW	GV-3KW
Rated Power	2kW	3kW
Max Power	2.5kW	4kW
Start Wind Speed	2.8m/s (6.27mph)
Rated Wind Speed	11m/s(24.64mph)	12m/s(26.88mph)
Working Wind Speed	3-25m/s (6.72-56 mph)
Safety Wind Speed	50m/s(112mph)
Blades Length	3.65M(11.97ft)
Blades Rotor Diameter	2.3M(7.54ft)
Blades Material &Quantity	FRP /3PCS
Mill Weight	285kg	300kg
Swept Area	8.395㎡	8.1㎡
Tower Height	6m(19.68ft.)	8m(26.24ft.)
Generator Type	Axial Flux Coreless outer rotor disc permanent magnet direct drive generator
Rated Speed	160RPM
Start Torque	<0.3N.M	<1N.M
Option Voltage	24-380V	48-380V
Protection Method	Electromagnetic Brake +PWM
Protection Grade	IP54
Working Temperature	-40-50℃
Life time	20 Years

System Solution

Buyer Feedback

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.

Why Choose Us

Our vertical wind generator and battery are free 3 years warranty, controller and invertor are 1 years warranty.All lifelong technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.

(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.

(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
