Product Details:
Payment & Shipping Terms:
|
| Type: | Wind Power Generator,50kw To 500KW Permanent Magnet Alternator | Rated Power: | 300w-30kw |
|---|---|---|---|
| Rated Voltage: | 12V / 24V / 48V | Generator Type: | 3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator |
| Application: | Electricity Generation | Warranty: | 3 Years |
| Portection Grade: | IP 54 | Color: | Multicolor |
| Size: | Customized Magnet Size | Generator Material: | 100% Copper Wire+Nd-Fe-B |
| Generator: | 3-Phase Permanent Magnet Generator AC Alternator | ||
| High Light: | 2kw Disk Permanent Magnet Generator,Coreless Disk Permanent Magnet Generator,Coreless 2kw low rpm alternator |
||
| Model | GDG-2KW-180 |
| Rated Power | 2KW |
| Rated Rotate Speed | 180 RPM |
| Option Rated Voltage | 72V-400Vac |
| Efficiency | >90% |
| Wending Method | Y |
| Insulating Resistance | 100Mohm Min(500V DC) |
| Leakage Level | <5 ma |
| Start Torque | <0.5N/M |
| Rated Torque | 120N/M |
| Phase Type | 3 Phase |

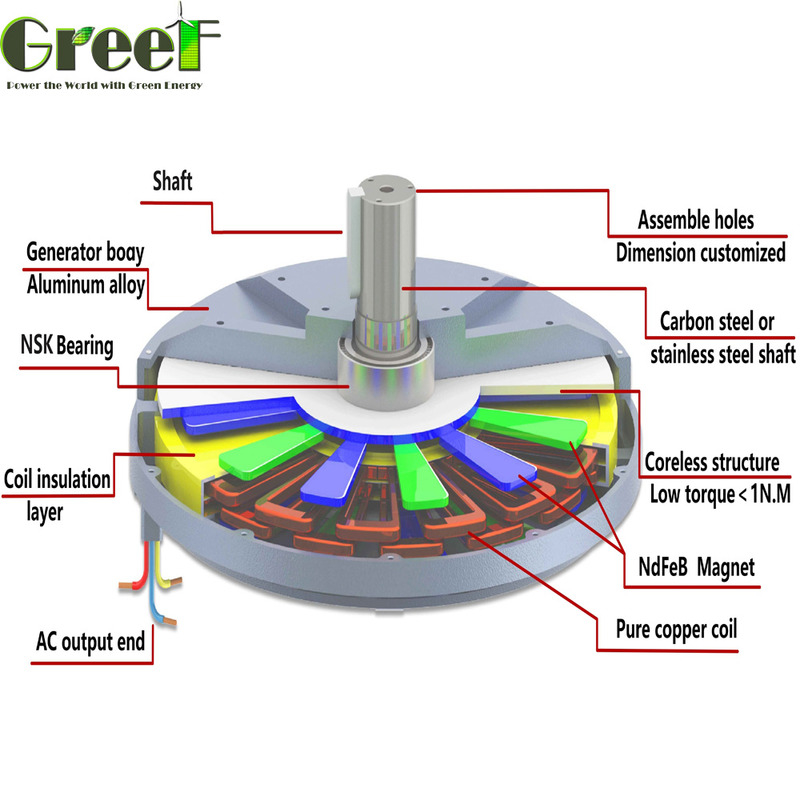

| Structure | Outer rotor |

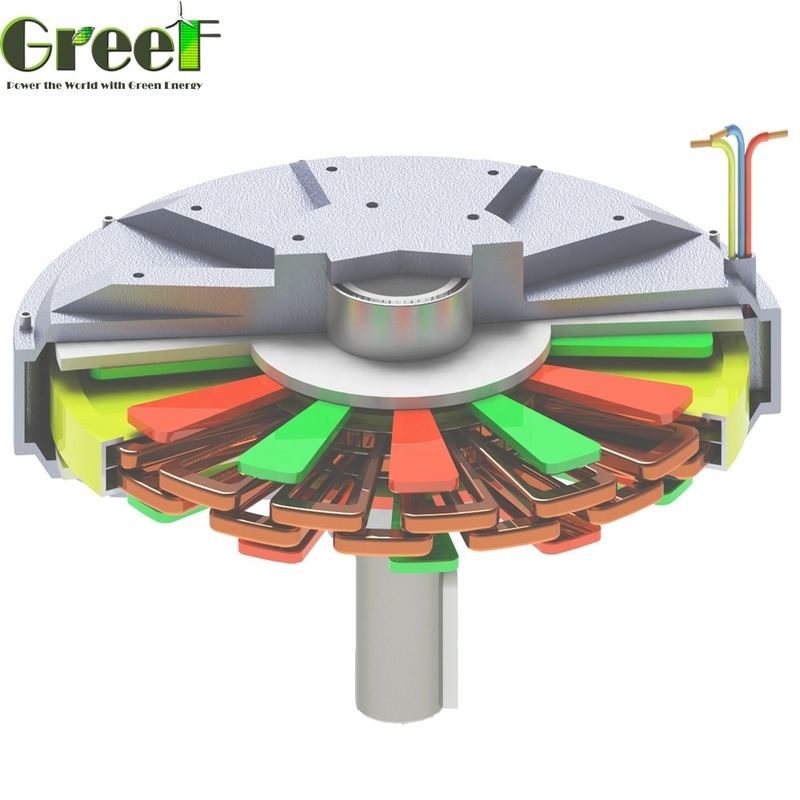

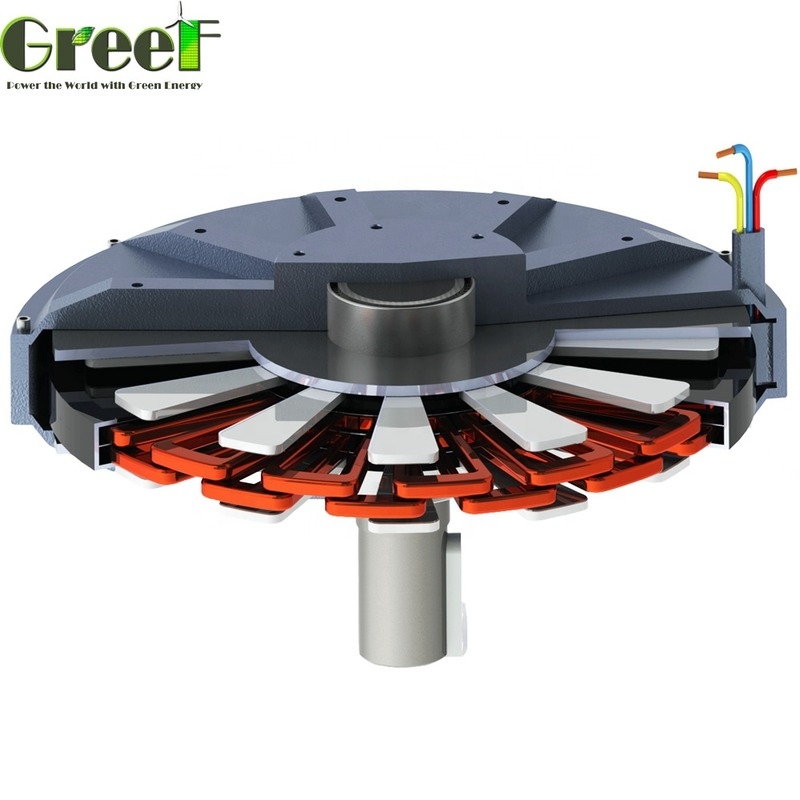

| Stator | Coreless wire coil |
| Rotor | Rare Earth Permanent Magnet |
| Generator Shell Diameter | 445mm |
| Generator Shell Length | 258mm |
| Weight | 51KG |
| Shaft drameter | 59mm |
| Generator shell material | Aluminum alloy |
| Shaft material | Carbon steel |
| Bearing | NSK Deep groove ball bearing |

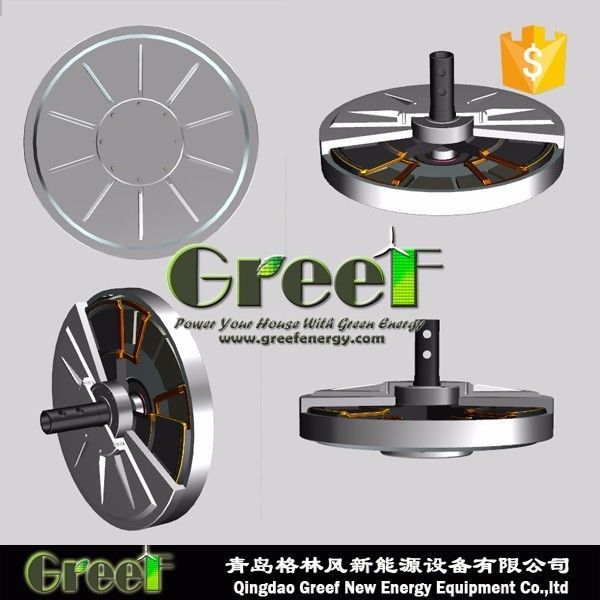

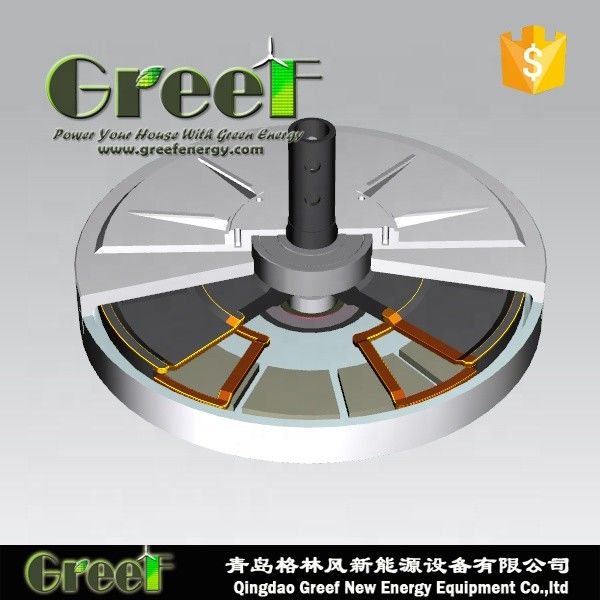

Drawing Sample

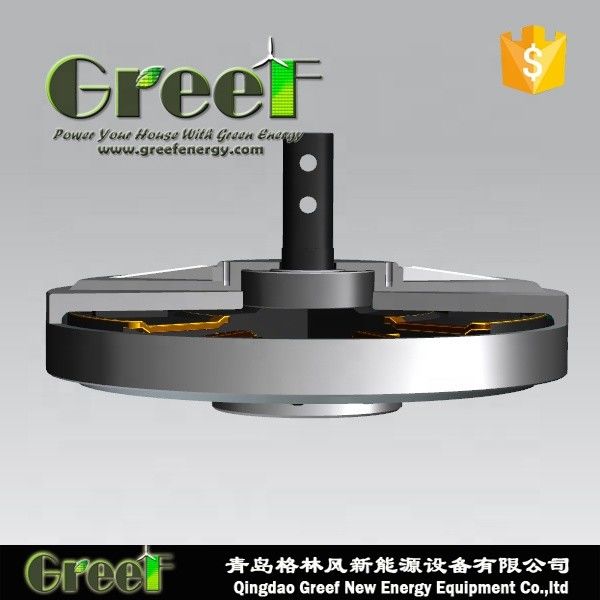

This Coreless Permanent Magnet always being used in vertical axis wind turbine, and other generator system which requests very low start torque and low rated rotate speed, low start wind speed, low weight and small size.
| 1 | Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <0.5N.M |
| 2 | Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight. |
| 3 | Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy. |
| 4 | Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor. |
| 5 | Gearless, direct drive, low RPM generator. |
| 6 | High standard, quality components for use in harsh and extreme environments for wind turbines |
| 7 | High efficiency and Low mechanical resistance energy loss |
| 8 | Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure. |
We are Top 3 suppliers of generators products on alibaba.com
--- Bureau Audited Supplier.
--- Products quality and on time delivery are guaranteed by alibaba.com.
--- 10 years’ experience engineer & QC team
--- 7days*24 hours on time service
--- Focus on after-sale service.
--- One stop customized system solution
--- Trade experience with more than 60 countries.
--- CE ,TUV, UL , RoHS, SAA certificated
--- OEM ,ODM are accepted
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
