Place of Origin:
Qingdao
Brand Name:
Greef
Certification:
CE
Model Number:
GT-PCTC Series Controller

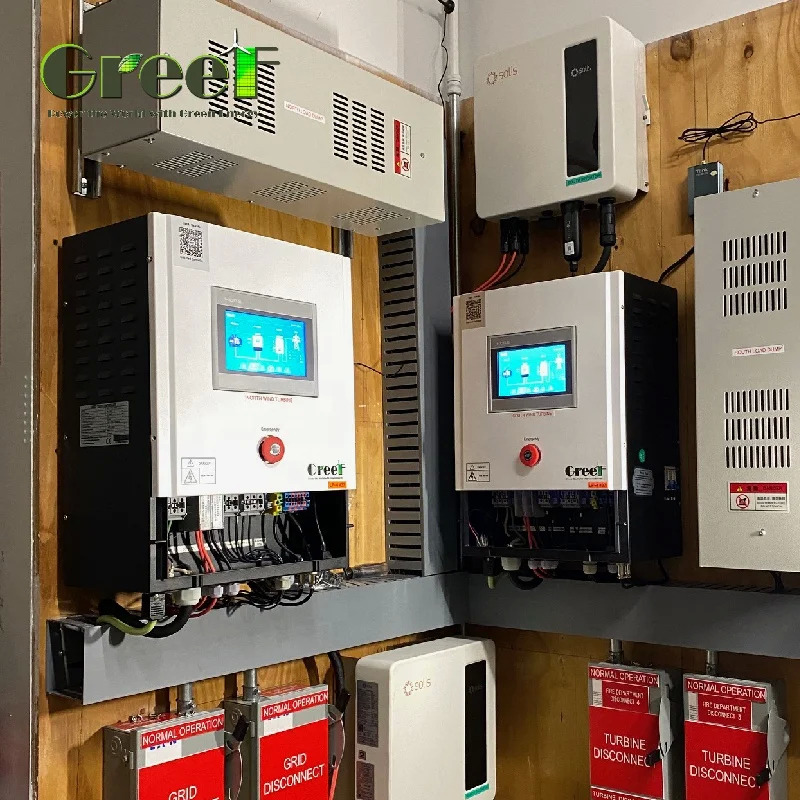

The GREEF PCTC series WIND TRACKER CONTROLLER (1KW-100KW) is an intelligent core component specially designed for modern wind energy systems. It is compatible with mainstream photovoltaic inverters on the market, while solving the cost and certification challenges of small wind turbine grid-connected inverters. It also integrates advanced monitoring, protection and remote management functions.
Through precise speed-power curve control, we ensure high efficiency and stability in wind power generation. Meanwhile, innovative noise control technology enables harmonious coexistence with the surrounding environment.
| Type | PCTC-1.5KW | PCTC-2KW | PCTC-3KW | PCTC-5KW |
|---|---|---|---|---|
| Wind turbine rated power | 1.5KW | 2KW | 3KW | 5KW |
| Wind turbine rated voltage | AC220V-240V | AC220V-240V | AC220V-380V | AC380-450V |
| Function | Rectifier, Control, DC output | |||
| Automatic protection function | Over voltage protection, Grid cut off protection, Regulated supply output, Arrester | |||
| Manual function | Manual brake, Reset, Emergency switch | |||
| Display mode | LCD Touch Screen | |||
| Display content (larger one) | Generator speed(rpm), Input voltage (Vdc), Input current(Vac), Output power(kW), Grid voltage (Vac), Grid current(A), Power generate today(kWh), Power generate this month, Power generate last month, Power generate this year, Power generate last year, Power Curve setting. | |||
| 3-phase dump load time-lapse | 12-20 min | 12-20 min | 12-20 min | 12-20 min |
| Wind turbine 3-phase dump load voltage | 450±5Vdc | 750±5Vdc | 750±5Vdc | 750±5Vdc |
| PWM constant voltage | ≥400dc | ≥700dc | ≥700dc | ≥700dc |
| Environment temperature | -30-60°C | |||
| Relative humidity | <90% No condensation | |||
| Noise (1m) | <40dB | |||
| Degree of protection | IP20(Indoor) IP65 (Outdoors) | |||
| Cooling method | Forced air cooling | |||
| Communication interface (optional) | RS485/USB/GPRS/WIFI/Ethernet | |||
| Type | PCTC-10KW | PCTC-20KW | PCTC-30KW | PCTC-50KW | PCTC-80KW | PCTC-100KW |
|---|---|---|---|---|---|---|
| Wind turbine rated power | 10KW | 20KW | 30KW | 50KW | 80KW | 100KW |
| Wind turbine rated voltage | AC380-520V | AC450-600V | ||||
| Automatic protection function | Over voltage protection, Grid cut off protection, Regulated supply output, Arrester | |||||
| Manual function | Manual brake, Reset, Emergency switch | |||||
| Display mode | LCD Touch Screen | |||||
| Display content (larger one) | Generator speed(rpm), Input voltage (Vdc), Input current(Vac), Output power(kW), Grid voltage (Vac), Grid current(A), Power generate today(kWh), Power generate this month, Power generate last month, Power generate this year, Power generate last year, Power Curve setting. | |||||
| PWM constant voltage | ≥700dc | |||||
| Wind turbine 3-phase dump load voltage | 750±5Vdc | |||||
| Wind turbine 3-phase dump load time-lapse | 12-20 min | |||||
| Environment temperature | -30-60°C | |||||
| Relative humidity | <90% No condensation | |||||
| Noise (1m) | <40dB | |||||
| Degree of protection | IP20(Indoor) IP65 (Outdoors) | |||||
| Cooling method | Forced air cooling | |||||
| Communication interface (optional) | RS485/USB/GPRS/WIFI/Ethernet | |||||
