Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw

Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw
Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw

Large Image :  Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw

Product Details:

Place of Origin: QINGDAO
Brand Name: GREEFcc
Certification: CE
Model Number: GDG

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $299-12999
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAY
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: $299-12999
Detailed Product Description
Type: Wind Power Generator Rated Power: 300w-30kw
Rated Voltage: Customized Generator Type: 3 Phase AC Permanent-magnet,Permanent Magnent Generator
Application: Wind Hybrid System,on-grid/off-grid Blade Material: Aluminium Alloy
Warranty: 3 Years Rated Wind Speed: 12m/s
Frequency: 50HZ Rated Rotor Speed: 20-900RPM
Rated Speed: 125rpm Portection Grade: IP 54
High Light:

500W Vertical Wind Turbine Generator

,

180rpm Vertical Wind Turbine Generator

,

Ce Low Rpm Wind Generator

Low Rpm Vertical Generator 500Watt 1kw 5kw 10kw ,Vertical Wind Turbine Pmg

Coeless Permanent Magnet Generator

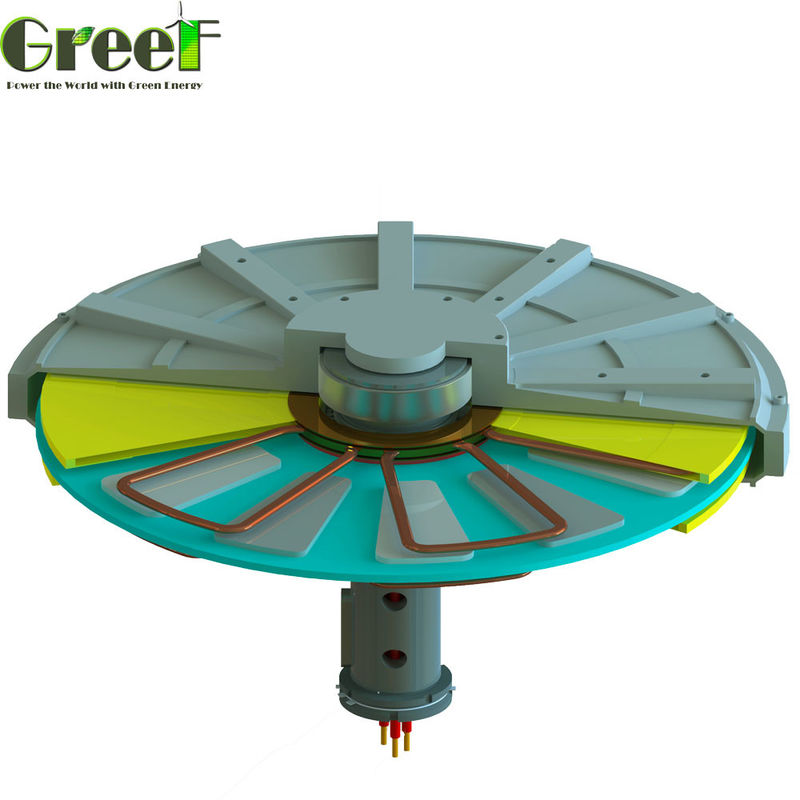

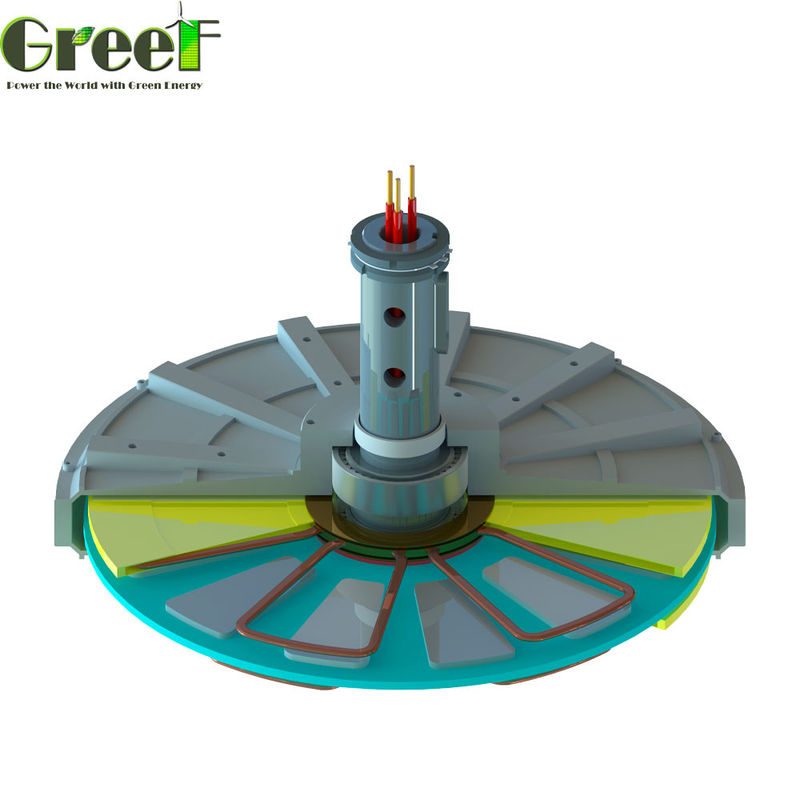

This Coreless Permanent Magnet always being used in vertical axis wind turbine, and other generator system which requests very low start torque and low rated rotate speed, low start wind speed, low weight and small size.
1
Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <0.3N.M
2
Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
3
Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
4
Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
5
Gearless, direct drive, low RPM generator.
6
High standard, quality components for use in harsh and extreme environments for wind turbines
7
High efficiency and Low mechanical resistance energy loss
8
Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.
Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw 0
Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw 1
Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw 2
Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw 3
Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw 4
Product Description
Model
GDG-0.5KW-200
GDG-1KW-180
GDG-1KW-200
GDG-2KW-120
GDG-2KW-180
Rated Power
0.5KW
1KW
1KW
2KW
2KW
Rated Rotate Speed
200 RPM
180RPM
200RPM
120RPM
180RPM
Rated Voltage
56Vac
56Vac
56Vac
115Vac
115Vac
Rated Current
9A
12A
17.9A
10A
17.4A
Efficiency
>85%
Wending Method
Y
Insulating Resistance
100Mohm Min(500V DC)
Leakage Level
<5 ma
Start Torque
<0.1N/M
<0.3 N/M
<0.5 N/M
<0.3 N/M
Phase Type
3 Phase
Structure
Out rotor
Stator
Coreless wire coil
Rotor
Rare Earth Permanent Magnet
Generator Shell Diameter
320
380
550
450
Generator Shell Length
232
241
241
330
258
Weight
20
32
32
75
51
Shaft drameter
45
50
50
78
59
Generator shell material
Aluminum alloy
Shaft material
Carbon steel
Bearing
Deep groove ball bearing
Model
GDG-3KW-100
GDG-3KW-180
GDG-5KW-100
GDG-5KW-150
GDG-10KW-100
Rated Power
3KW
3KW
5KW
6KW
10KW
Rated Rotate Speed
100RPM
180RPM
100RPM
150RPM
100RPM
Rated Voltage
380VAC
380VAC
380VAC
380VAC
400VAC
Rated Current
4.6A
4.7A
7.6A
15.2A
14.5A
Efficiency
>85%
Wending Method
Y
Insulating Resistance
100Mohm Min(500V DC)
Leakage Level
<5 ma
Start Torque
<1 N/M
<0.5 N/M
<1 N/M
Phase Type
3 Phase
Structure
Out rotor
Stator
Coreless wire coil
Rotor
Rare Earth Permanent Magnet
Generator Shell Diameter
620
550
700
620
770
Generator Shell Length
410
330
400
410
590
Weight
110
65
125
110
245
Shaft drameter
80
78
98
80
85
Generator shell material
Aluminum alloy
Shaft material
Carbon steel
Bearing
Deep groove ball bearing
System Solution
We can provide the complete generator system including Controller and Inverter:
Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw 5
Packaging & Shipping
1. The magnetic generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.
2.Pakage size and weight please refer to our sales.
3.Shipping by sea with FCL LCL or by air .
If you have any request in package and shipping please tell our sales we will do according to your request.Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw 6Low Rpm Vertical Wind Turbine Generator 500Watt 1kw 5kw 10kw 7
