HOT! Low Speed Axial Flux Coreless Permanent Magnetic Generator, 5kw Permanent Magnet Generator!

Coreless Permanent Magnetic Generator
Magnetic Generator Product Description



GreeF company supply modified kinds of Coreless Disk Permanent Magnet Generator. The main models are as follow:

  • GDG-0.2KW 200RPM
  • GDG-0.5KW 200RPM
  • GDG-1KW 150RPM
  • GDG-1KW 180RPM
  • GDG-2KW 120RPM
  • GDG-2KW 180RPM
  • GDG-3KW 100RPM
  • GDG-3KW 180RPM
  • GDG-5KW 100RPM
  • GDG-5KW 150RPM
  • GDG-10KW 100RPM
  • GDG-10KW 150RPM
The magnetic generators are always being used in vertical axis wind turbine generator, diesel gasoline generator ,hydroelectric generator(water-power generator) and other generator system which requests very low start torque and low RPM.





Magnetic Generator Overview



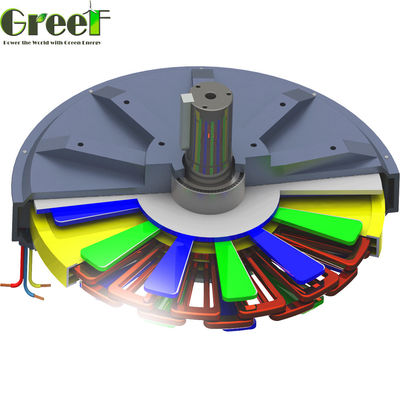

The coreless disk permanent magenetic generator is made of high-stability Nd-Fe-B materials.



The specific outer rotor magnetic circuit is designed in a special way. The magnetic generator



has following features:



Low starting torque, Low start wind speed, Low weight,small size ,High generating efficiency





Magnetic Generator Features



  • Torque Patent Technology: use newest “Precise Coil” technology. No hysteresis and gear notches effect make the start torque very low <1N.M
  • Original Structure: use disc coreless motor to take place traditional motor makes it less volume and weight.
  • Higher Utilization: use special coreless motor technology to eliminate the use bottlenecks of lower speed wind energy.
  • Higher Reliability: special structure make it bigger ratio of power to volume, power to weight and have long life of 8 times longer than traditional motor.
  • Gearless, direct drive, low RPM generator.
  • High standard, quality components for use in harsh and extreme environments for wind turbines
  • High efficiency and Low mechanical resistance energy loss.
  • Excellent heat dissipation due to the Aluminum alloy outer frame and special internal structure.



Magnetic Generator Technical Data



Model GDG-0.5KW-200 GDG-1KW-180 GDG-1KW-200 GDG-2KW-120 GDG-2KW-180
Rated Power 0.5KW 1KW 1KW 2KW 2KW
Rated Rotate Speed 200 RPM 180RPM 200RPM 120RPM 180RPM
Rated Voltage 56Vac 56Vac 56Vac 115Vac 115Vac
Rated Current 9A 12A 17.9A 10A 17.4A
Efficiency >85%
Wending Method Y
Insulating Resistance 100Mohm Min(500V DC)
Leakage Level <5 ma
Start Torque <0.1N/M <0.3 N/M <0.3 N/M <0.5 N/M <0.3 N/M
Phase Type 3 Phase
Structure Out rotor
Stator Coreless wire coil
Rotor Rare Earth Permanent Magnet
Generator Shell Diameter 320 380 380 550 450
Generator Shell Length 232 241 241 330 258
Weight 20 32 32 75 51
Shaft drameter 45 50 50 78 59
Generator shell material Aluminum alloy
Shaft material Carbon steel
Bearing Deep groove ball bearing







Model GDG-3KW-100 GDG-3KW-180 GDG-5KW-100 GDG-5KW-150 GDG-10KW-100
Rated Power 3KW 3KW 5KW 6KW 10KW
Rated Rotate Speed 100RPM 180RPM 100RPM 150RPM 100RPM
Rated Voltage 380VAC 380VAC 380VAC 380VAC 400VAC
Rated Current 4.6A 4.7A 7.6A 15.2A 14.5A
Efficiency >85% >85% >88% >88% >88%
Wending Method Y Y Y Y Y
Insulating Resistance 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(501V DC)
Leakage Level <5 ma <5 ma <5 ma <5 ma <5 ma
Start Torque <1 N/M <0.5 N/M <0.5 N/M <1 N/M <1N/M
Phase Type 3 Phase 3 Phase 3 Phase 3 Phase 3 Phase
Structure Out rotor Out rotor Out rotor Out rotor Out rotor
Stator Coreless wire coil Coreless wire coil Coreless wire coil Coreless wire coil Coreless wire coil
Rotor Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet
Generator Shell Diameter 620 550 700 620 770
Generator Shell Length 410 330 400 410 590
Weight 110 65 125 110 245
Shaft drameter 80 78 98 80 85
Generator shell material Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
Shaft material Carbon steel Carbon steel Carbon steel Carbon steel Carbon steel
Bearing Deep groove ball bearing Deep groove ball bearing Deep groove ball bearing Deep groove ball bearing Deep groove ball bearing





Currently we offer wide range:



------ 300W-100kw FRP wind turbine blades

------ Horizontal Axis Wind Turbine generator (HAWT)

------ Vertical Axis Wind Turbine generator (VAWT)

------ Solar and wind hybrid system

------ Solar panel

------ Permanent Magnent Generator

------ Controllers, invertor, battery and relation products







This is Victor, if you want to get the best price and more information, also can contact us directly:

Email:info@ greefenergy.com Mobile:+86-15264246886

Skype:greefenergy_c Wechat:haorenchensheng

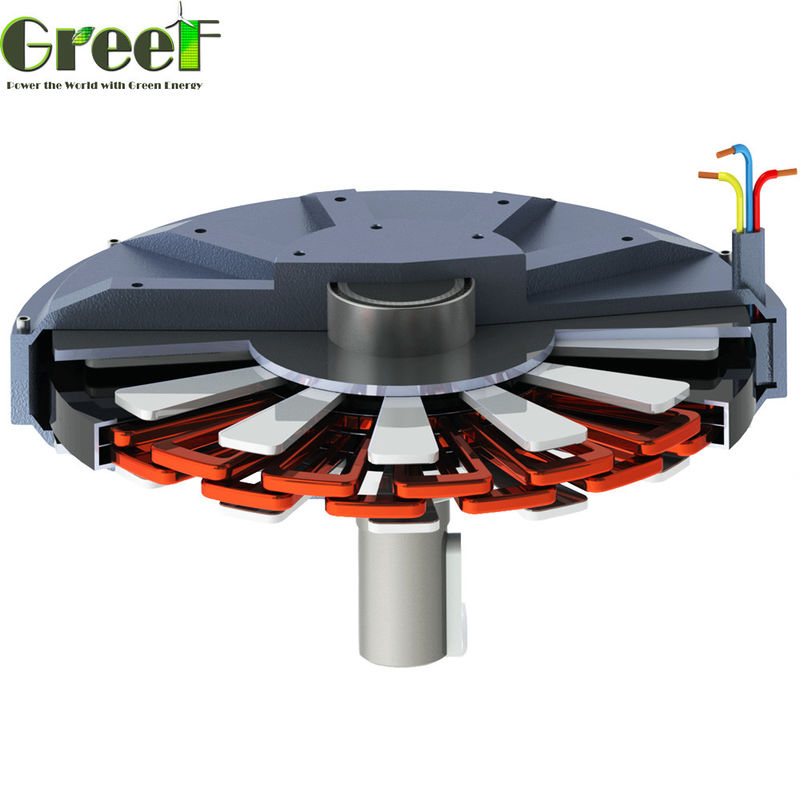

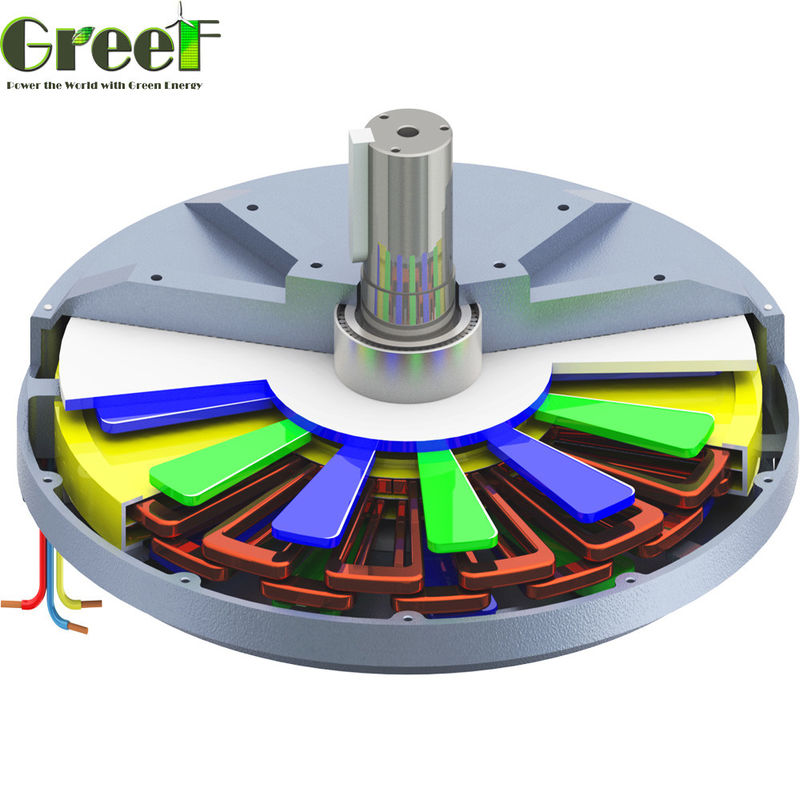

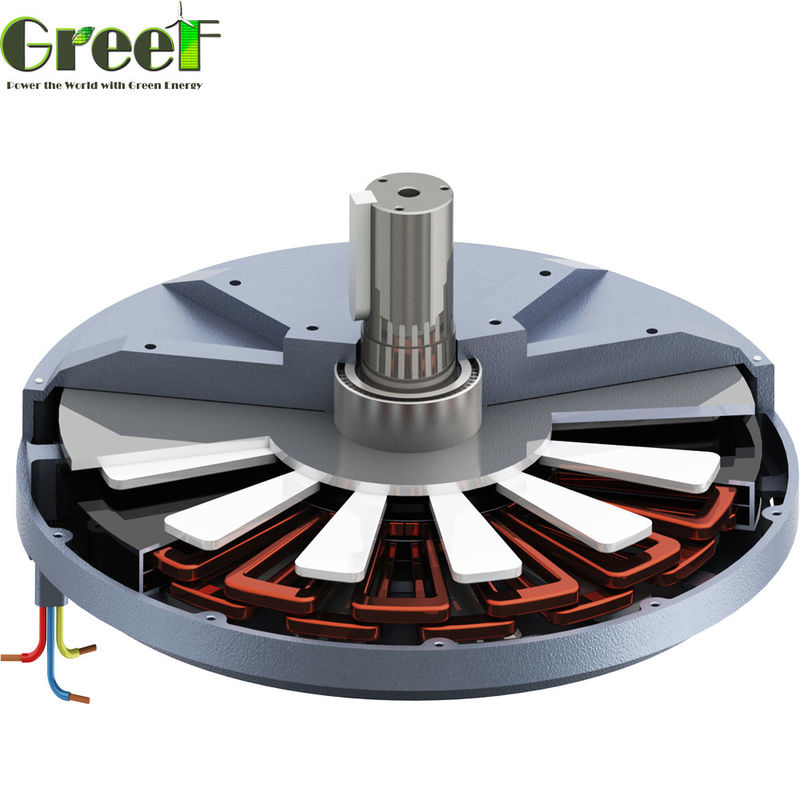

Magnetic Generator Drawing Sample




HOT! Low speed Axial Flux Coreless Permanent Magnetic generator, 5kw permanent magnet generator!

HOT! Low speed Axial Flux Coreless Permanent Magnetic generator, 5kw permanent magnet generator!

HOT! Low speed Axial Flux Coreless Permanent Magnetic generator, 5kw permanent magnet generator!





Magnetic Generator Power Curve



Low Speed Axial Flux Permanent Magnet Generator Coreless 5kw 3

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Low Speed Axial Flux Permanent Magnet Generator Coreless 5kw 4

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Low Speed Axial Flux Permanent Magnet Generator Coreless 5kw 5

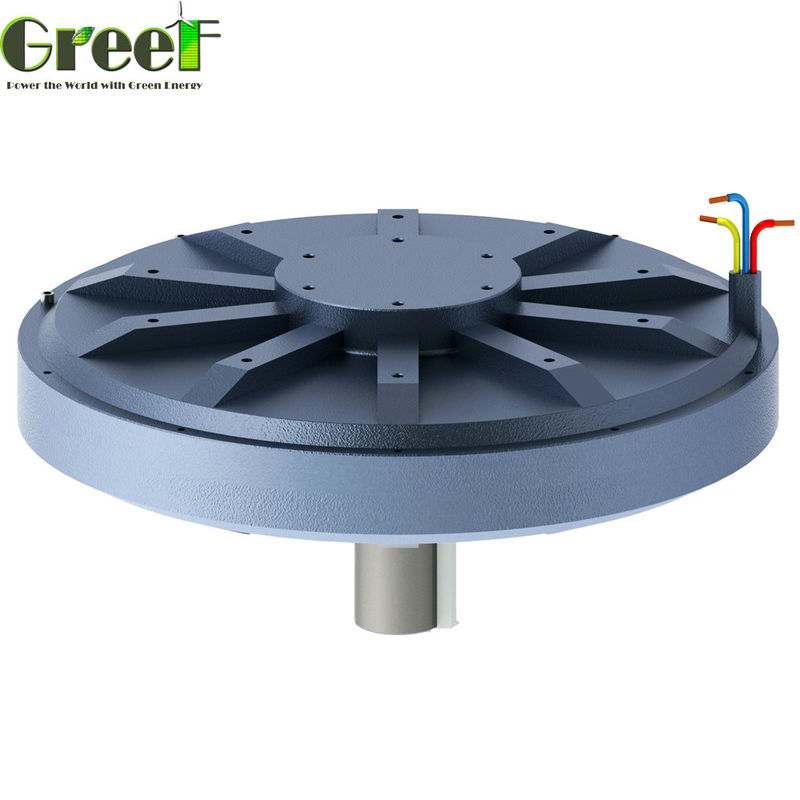

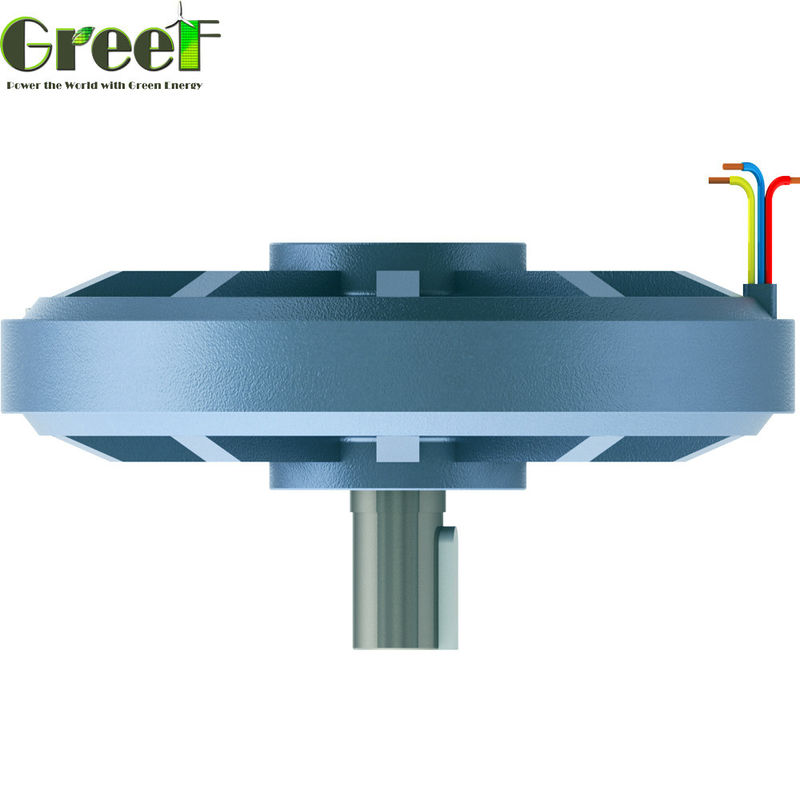

Magnetic Generator Pictures

HOT! Low speed Axial Flux Coreless Permanent Magnetic generator, 5kw permanent magnet generator!

HOT! Low speed Axial Flux Coreless Permanent Magnetic generator, 5kw permanent magnet generator!


Magnetic Generator Packaging & Shipping

1. The magnetic generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.

2.Pakage size and weight please refer to our sales.

3.Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request.
