Name: wind turbine inverter on-grid hybrid inverter system 1kw 2kw 3kw 5kw
Brand: GREEF
SKU: S6-EH1P3/5K-L-EU
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (200 reviews)

Home > products > On Grid Inverter >

wind turbine inverter on-grid hybrid inverter system 1kw 2kw 3kw 5kw

Place of Origin:

CHINA

Brand Name:

GREEF

Certification:

Model Number:

S6-EH1P3/5K-L-EU

Request A Quote

wind turbine inverter on-grid hybrid inverter system 1kw 2kw 3kw 5kw

Product Details

Max. Input Voltage:

600 V

Rated Voltage:

330 V

Start-up Voltage:

90 V

MPPT Voltage Range:

90-520 V

Max. Input Current:

16 A / 16 A

Max. Short Circuit Current:

24 A / 24 A

Rated Grid Voltage:

220 V / 230 V

Input Voltage Range:

187-253 V

Rated Frequency:

50 Hz / 60 Hz

Max. Efficiency:

> 97.5%

Ingress Protection:

IP66

Communication:

RS485, CAN, Optional: Wi-Fi, GPRS, LAN

Display:

LED + APP

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Negotiable

Packaging Details

Carton or Plywooden Case

Delivery Time

25-30 Working Days

Payment Terms

T/T, Western Union, L/C

Supply Ability

400 Sets per Month

Innovative Grid Connected Inverter With Humidity 0-90%RH At 95% Efficiency

Get Best Price

3KW 5KW 15KW 30KW 50KW Grid Tied Solar Inverter For House

Get Best Price

3KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home

Get Best Price

3KW 5KW On Grid Wind Turbine Inverter For Grid Tie Wind Turbine For Home

Get Best Price

Contact Now

Product Description

Product details

wind turbine inverter on-grid hybrid inverter system 1kw 2kw 3kw 5kw 0

Integrated 2 MPPTs for multiple array orientations

Industry leading 125A/6kW max charge/discharge rating

Automatic UPS switching

Supports Peak Shaving Mode

Pre-made Battery, Meter and CAN cabling to reduce installation time

Supports 1ph and 3ph flexible connection on both the Grid and Backup Port

Compatible with multiple brands of lithium battery models

Increased battery protection and operation features to extend battery life

wind turbine inverter on-grid hybrid inverter system 1kw 2kw 3kw 5kw 1

Solis Series Single phase series string inverter are green power leader in affordable small residential and commercial rooftops, adopt full digital control technology, advanced topological structure and accurate MPPT algorithm, whose efficiency higher than the industry's leading conversion is up to 97.5% at the maximum.Meanwhile adopt multiple

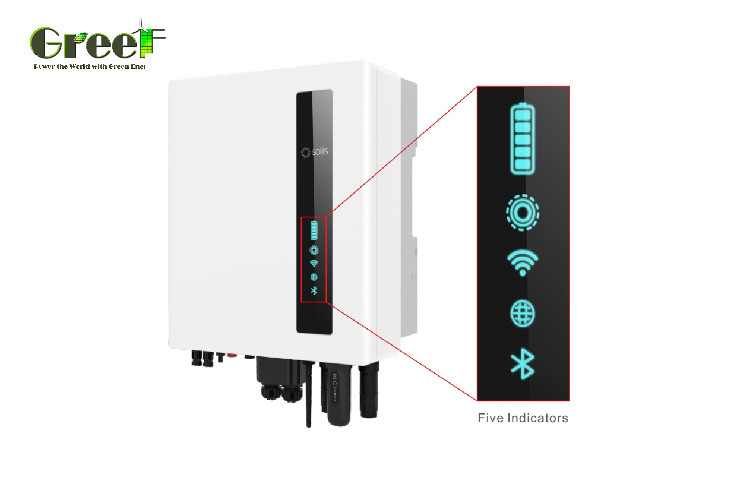

There are five indicators on the The Solis S6-EH1P(3-6)K-L Series Inverter (Battery, Power, WiFi, Ethernet and Bluetooth) which indicate the working status of the inverter.

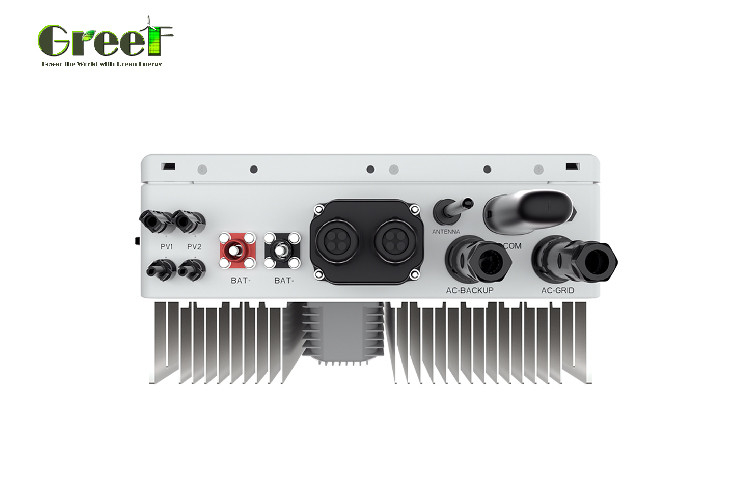

The Bluetooth Antenna or WiFi datalogger shall be installed at the Antenna/COM port of the hybrid inverter before local debugging.

System diagram

We can make customized solar generation system solutions according to your requirements.

wind turbine inverter on-grid hybrid inverter system 1kw 2kw 3kw 5kw 5

Since the system can be customized, the price will be different depending on the equipment, if you need specific parameters, please contact us directly.

Product Parameters

wind turbine inverter on-grid hybrid inverter system 1kw 2kw 3kw 5kw 6
