3 Phase Coreless Permanent Magnet Generator 0.1kw-20kw IP54

3 phase coreless permanent magnet generator

IP54 coreless permanent magnet generator

0.1kw-20kw coreless generator

Place of Origin:

Qingdao

Brand Name:

Greef

Certification:

Model Number:

GDG

Document:

GDG Factory QC Testing Repo...t .pdf

Request A Quote

Product Details

Phase Type:

Portection Grade:

IP 54

Poles:

16-20

Generator Type:

3 Phase AC Permanent Magnet

Power:

0.1kw-20kw

Generator Material:

Aluminum Alloy

Speed:

100-500RPM

Start Torque:

<1 N/M

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden case

Delivery Time

25 working days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

3 Phase Coreless Permanent Magnet Generator 0.1kw-20kw IP54

Get Best Price

Video

5kw Low Rpm Low Rotation Speed Inner Rotor Outer Rotor Permanent Magnet Generator Alternator For Wind Turbine Home Use

Get Best Price

2kw Coreless Disk Permanent Magnet Generator 3 Phase Electricity Generation

Get Best Price

12-450V Customized Coreless Permanent Magnet Generator Outer Rotor / Inner Rotor Horizontal And Vertical Shaft Type

Get Best Price

Contact Now

Product Description

Powerful and Versatile Coreless Permanent Magnet Generator for Sustainable Energy Production

Product Specifications

Attribute	Value
Phase Type	3
Protection Grade	IP 54
Poles	16-20
Generator Type	3 Phase AC Permanent Magnet
Power	0.1kw-20kw
Generator Material	Aluminum Alloy
Speed	100-500RPM
Start Torque	<1 N/M

Coreless Permanent Magnet Generator Overview

A Coreless Permanent Magnet Generator is an advanced generator that utilizes an axial flux design with an ironless core structure to efficiently produce electricity. This innovative design eliminates iron core losses and hysteresis losses commonly found in conventional generators.

Generator Structure

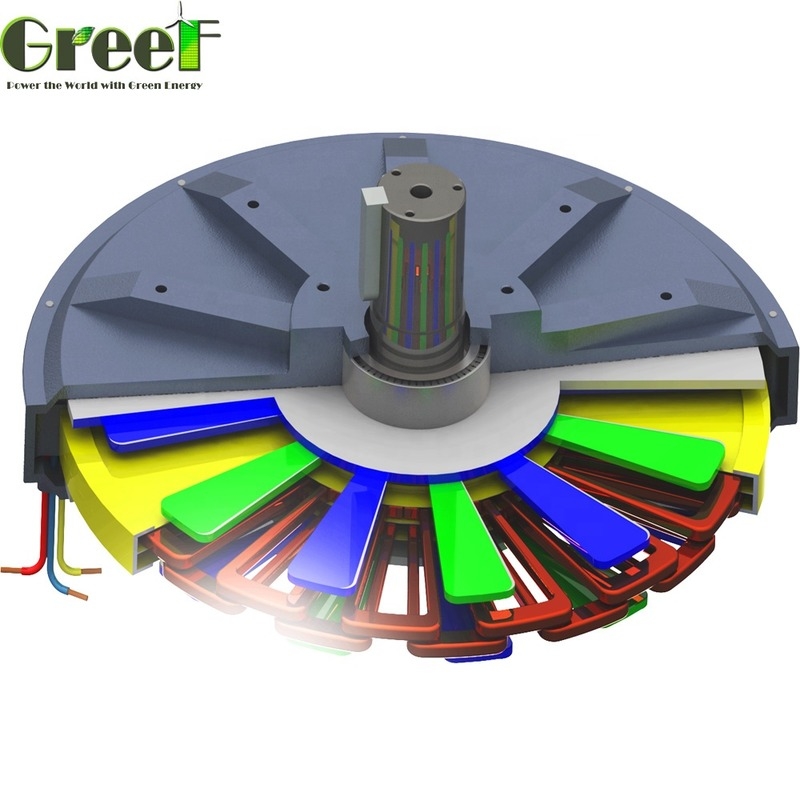

The axial flux ironless core generator consists of:

Permanent magnets to create the magnetic field
Coils that capture magnetic energy and convert it to electrical energy
Protective casing that provides structural support

Operating Principle

The generator operates on electromagnetic induction principles. When permanent magnets move relative to conductor coils, they induce electromotive force (EMF) that is converted into usable electrical energy for powering external devices.

Applications

Wind Power Generation: Ideal for megawatt-class wind turbines, increasing output density and efficiency
Renewable Energy Systems: Perfect for solar and wind power applications due to high efficiency and reliability
Industrial Applications: Provides efficient, lightweight power for backup and auxiliary systems
Custom Solutions: Parameters can be customized including power, speed, and output voltage

Technical Specifications

Model	GDG
Rated Power	0.5KW-10KW
Rated Voltage	24V-440Vac
Efficiency	>85%
Winding Method	Y
Insulating Resistance	100Mohm Min (500V DC)
Phase Type	3 Phase
Structure	Outer rotor
Stator	Coreless wire coil
Rotor	Rare Earth Permanent Magnet
Generator Shell Material	Aluminum alloy
Shaft Material	Carbon steel
Bearing	NSK Deep groove ball bearing
