Home > Products > Coreless Permanent Magnet Generator >

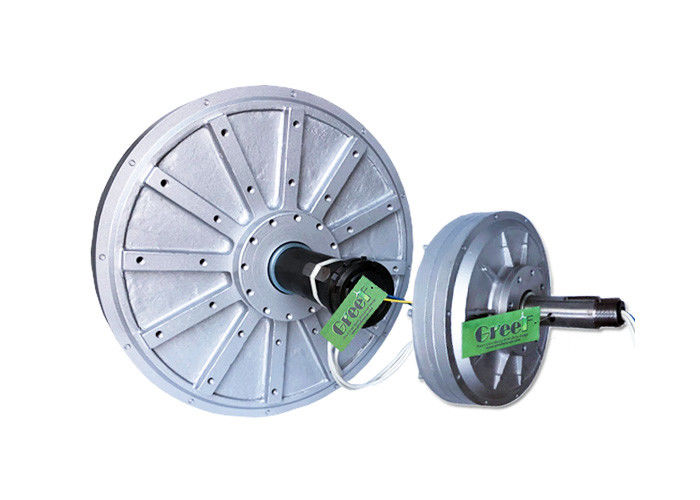

50W-10KW Permanent Magnet Generator with Outer Rotor and >85% Efficiency Coreless Alternator

50W-10KW Permanent Magnet Generator with Outer Rotor and >85% Efficiency Coreless Alternator

magnetic energy generator

low speed dc generator

Place of Origin:

China

Brand Name:

GreeF

Certification:

CE

Model Number:

GDG

Contact Us
Request A Quote
50W-10KW Permanent Magnet Generator with Outer Rotor and >85% Efficiency Coreless Alternator 50W-10KW Permanent Magnet Generator with Outer Rotor and >85% Efficiency Coreless Alternator 50W-10KW Permanent Magnet Generator with Outer Rotor and >85% Efficiency Coreless Alternator 50W-10KW Permanent Magnet Generator with Outer Rotor and >85% Efficiency Coreless Alternator 50W-10KW Permanent Magnet Generator with Outer Rotor and >85% Efficiency Coreless Alternator 50W-10KW Permanent Magnet Generator with Outer Rotor and >85% Efficiency Coreless Alternator
Product Details
Rated Power:
50W-10KW
Option Rated Voltage:
Option Rated Voltage
Efficiency:
>85%
Structure:
Outer Rotor
Generator Material:
Aluminium Body+copper Wire+Nd-Fe-B
Bearing Brand:
NSK
Installation:
Vertically
Warranty:
3 Years
Highlight:

magnetic energy generator

,

low speed dc generator

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Foam + Plywooden Case
Delivery Time
15-25 working days
Payment Terms
L/C,T/T,Western Union
Supply Ability
400 sets per month
RELATED PRODUCTS
Good price 50W-10KW Permanent Magnet Generator with Outer Rotor and >85% Efficiency Coreless Alternator online

50W-10KW Permanent Magnet Generator with Outer Rotor and >85% Efficiency Coreless Alternator

Get Best Price
Good price Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Maintenance-Free Design online Video

Coreless Permanent Magnet Generator with Low Start Torque High Efficiency and Maintenance-Free Design

Get Best Price
Good price Low Start Torque High Efficiency Maintenance-Free Coreless Permanent Magnet Generator with Axial Flux Design online Video

Low Start Torque High Efficiency Maintenance-Free Coreless Permanent Magnet Generator with Axial Flux Design

Get Best Price
Good price Coreless Permanent Magnet Generator with Rare Earth Permanent Magnet, Low Start Torque, and High Efficiency for Wind Power online

Coreless Permanent Magnet Generator with Rare Earth Permanent Magnet, Low Start Torque, and High Efficiency for Wind Power

Get Best Price
Contact Us
Contact Now
Product Description
50W-10KW Permanent Magnet Motor Generator Disc Coreless Alternator
Disc Coreless Permanent Magnet Generator

Advanced coreless permanent magnet generator designed for efficient power generation with exceptional performance characteristics.

Technical Specifications
Model GDG
Rated Power 50W-10KW
Option Rated Voltage 24V-440Vac
Efficiency >85%
Winding Method Y
Insulating Resistance 100Mohm Min (500V DC)
Phase Type 3 Phase
Structure Outer rotor
Stator Coreless wire coil
Rotor Rare Earth Permanent Magnet
Generator Shell Material Aluminum alloy
Shaft Material Carbon steel
Bearing NSK Deep groove ball bearing
Product Images

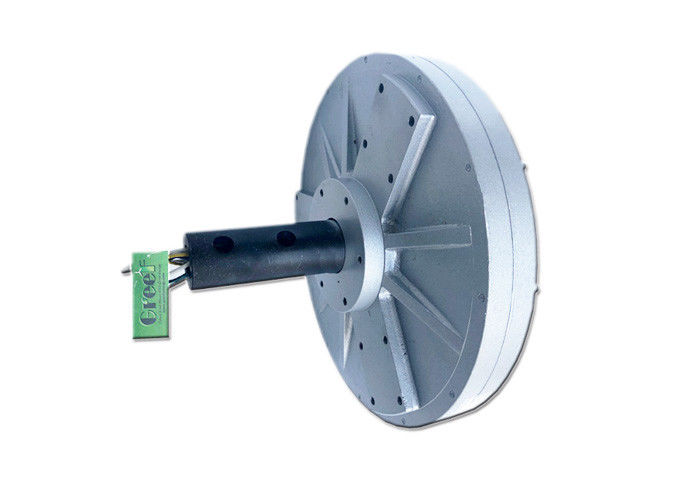

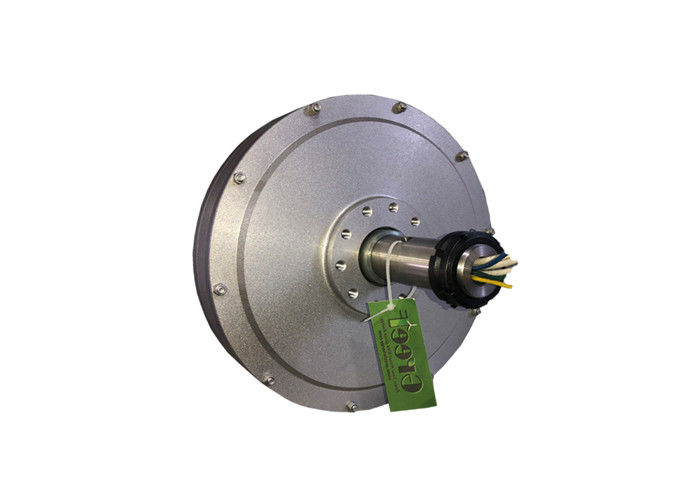

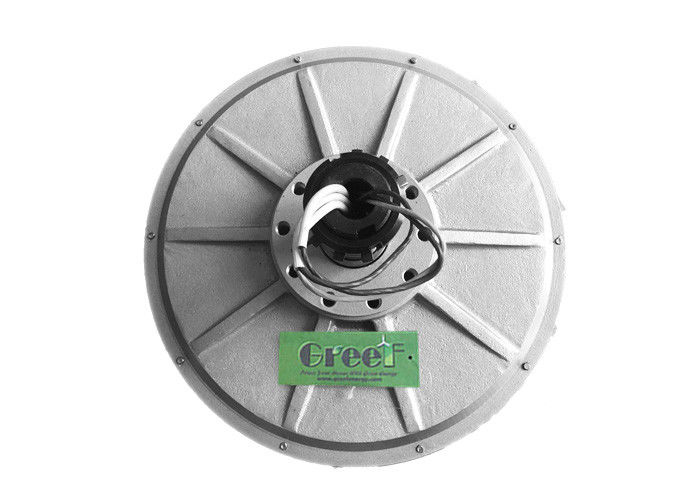

Disc Coreless Permanent Magnet Generator - Front View Disc Coreless Permanent Magnet Generator - Side View
Product Advantages

This Coreless Permanent Magnet generator is ideal for vertical axis wind turbines and other generator systems requiring very low start torque, low rated rotation speed, low start wind speed, lightweight construction, and compact size.

1 Torque Patent Technology: Uses newest "Precise Coil" technology. No hysteresis and gear notches effect make the start torque very low <0.1N.M
2 Original Structure: Uses disc coreless motor to replace traditional motor, resulting in reduced volume and weight
3 Higher Utilization: Uses special coreless motor technology to eliminate use bottlenecks of lower speed wind energy
4 Higher Reliability: Special structure provides bigger ratio of power to volume, power to weight, and has long life of 8 times longer than traditional motor
5 Gearless, direct drive, low RPM generator
6 High standard, quality components for use in harsh and extreme environments for wind turbines
7 High efficiency and low mechanical resistance energy loss
8 Excellent heat dissipation due to Aluminum alloy outer frame and special internal structure
Company Logo
Applications

We can provide complete generator systems including Controller and Inverter for various applications.

Off-grid Generator System
Off-grid Generator System Configuration Generator System Technical Diagram
Company Information
  • Bureau Audited Supplier
  • 10 years' experience engineer & QC team
  • 7 days × 24 hours on-time service
  • Focus on after-sale service
  • One stop customized system solution
  • Trade experience with more than 60 countries
  • CE, TUV, UL, RoHS, SAA certificated
  • OEM, ODM services accepted

Generators are free 3 years warranty, All lifelong technical support and part cost supply.

  • The warranty period starts from the date of shipment shown on the bill of loading or air waybill
  • Free maintenance services during warranty period - costs borne by the company
  • Outside warranty period, company will charge for labor costs and materials
  • During warranty, freight for company quality problems borne by company
  • Non-warranty or man-made damage, freight charges borne by customer
Company Certification and Quality Standards
Frequently Asked Questions
Q: Is it possible to get a sample?
A: Yes, we can provide just one generator to you.
Q: Can this coreless generator output Single Phase voltage?
A: No, it can only output 3-Phase voltage.
Q: Can we make 3 Phase 4 Wires for this coreless generator?
A: No, it can only make 3 Live Wires.
Q: Do you have more lower rpm for this coreless generator?
A: Please tell our sales your other requirements like power, we will check it for you.

If you have other requirements, please feel free to contact us directly!
