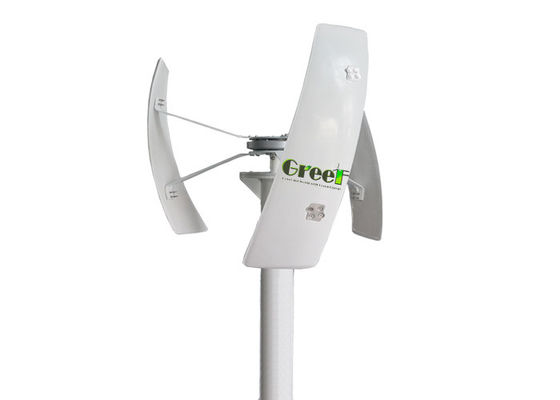

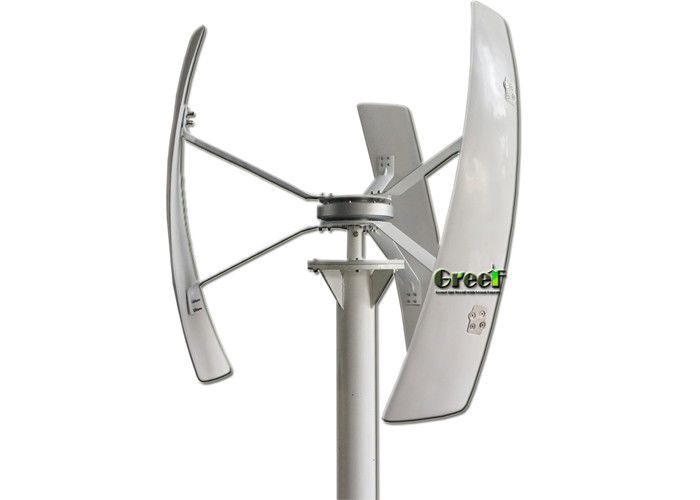

High Efficiency 500W Vertical Axis Wind Turbine , Micro Vawt Wind Turbine

High Efficiency 500W Vertical Axis Wind Turbine , Micro Vawt Wind Turbine

vertical rooftop wind turbine

500 watt vertical axis wind turbine

Place of Origin:

CHINA

Brand Name:

GreeF

Certification:

CE

Model Number:

GV-500W

Contact Us
Request A Quote
Product Details
Model:
GV-500W
Rated Power:
500W
Max Power:
650W
Start Wind Speed:
1m/s (2.24mph)
Rated Wind Speed:
10m/s(22.4mph)
Working Wind Speed:
1-25m/s (2.24-56 Mph)
Generator Type:
Axial Flux Coreless Disc Permanent Magnet Direct Drive Generator
Rated Rotor Speed:
200RPM
Blades Material:
FRP
Warranty:
3 Years
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Foam + Plywooden Case
Delivery Time
25-30 working days
Payment Terms
L/C, T/T, Western Union
Product Description



500W Vertical Axis Wind Turbine



Product Description



500W vertical axis wind mill are a type of wind turbine where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. they are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.



GreeF 500W vertical axis wind mill are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.





Model GV-500W
Performance
Rated Power 500W
Max Power 650W
Start Wind Speed 1m/s (2.24mph)
Rated Wind Speed 10m/s(22.4mph)
Working Wind Speed 1-25m/s (2.24-56 mph)
Safety Wind Speed 50m/s(112mph)
Physical Parameters
Blades Length 1.5M(4.92ft)
Blades Rotor Diameter 1.5M(4.92ft)
Blades Material &Quantity FRP /3PCS
Mill Weight 64kg
Tower Height 6m(19.68ft.) (Optional)
Generator Parameters
Generator Type

Axial Flux coreless disc permanent magnet direct drive generator

(outer rotor)

Rated Speed 200RPM
Start Torque <0.1N.M
Option Voltage 12-24V
Protection Method Electromagnetic Brake + PWM
Protection Grade IP54
Working Temperature -40-50℃
Life time 20 Years

All models



We can provide 300W-5kW Vertical Axis Wind Turbines, other models please click this picture and check:






Project Show





13 sets of Vertical Axis Wind Turbine  and other project:



.jpg





Application





We can provide different system for customers according their request.

For example, Off-Grid System:












Company Information



Our main Vertical Axis Wind Turbines are free 3 years warranty

All lifelong technical support and part cost supply.



(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
