Product Details:
Place of Origin: CHINA
Brand Name: GreeF
Certification: CE
Model Number: GV-3KW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Foam + Plywooden Case
Delivery Time: 25-35 Working Days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Rated Power: 3KW Start Wind Speed: 2.8m/s (6.27mph)
Rated Wind Speed: 12m/s(26.88mph) Generator Type: Disc Coreless Permanent Magnent Generator
Generator Material: Aluminium Body+copper Wire+Nd-Fe-B Rated Rotor Speed: 160RPM
Rated Option Voltage: 48-380V Blades Material: FRP
Blades Quantity: 3PCS Warranty: 3 Years
High Light:

magnetic vertical wind turbine

,

portable vertical axis wind turbine





3kW Vertical Axis Wind Turbine





We can provide 300W-5kW Vertical Axis Wind Turbines, other models please click this picture and check:

Product Description



3kW vertical axis wind mill are a type of wind turbine where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. they are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.



GreeF 3kW vertical axis wind mill are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.







Model

GV-3KW

Performance



Rated Power

3kW

Max Power

4kW

Start Wind Speed

2.8m/s   (6.27mph)

Rated Wind Speed

12m/s(26.88mph)

Physical Parameters



Blades Material &Quantity

FRP /3PCS

Mill Weight

355kg

Tower Height

8m(26.24ft.)

Generator Parameters



Generator Type

Axial Flux Coreless outer rotor disc permanent magnet direct drive generator

Rated Speed

160RPM

Start Torque

<1N.M

Option Voltage

48-380V

Protection Method

Electromagnetic   Brake +PWM

Protection Grade

IP54

Working Temperature

-40-50

Life time

20   Years





Detailed Images

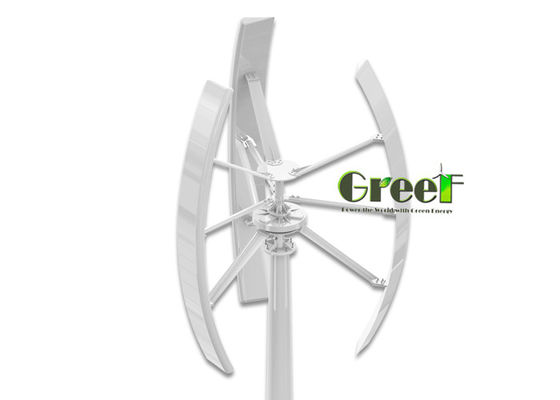

Small 3KW Vertical Wind Turbine , Portable Vertical Axis Wind Turbine 0
