| Product Name: | On Grid Wind Controller | Type: | AC To DC Converter |
|---|---|---|---|
| Function: | Rectifier, Control, DC Output | Display: | LCD Screen |
| Certification: | CE | Output Type: | DC |
| Packaging: | Carton Or Plywood Case | Application: | Wind Turbine |
| Color: | Yellow | ||
| High Light: | hybrid solar controller,wind turbine dump load controller |
||

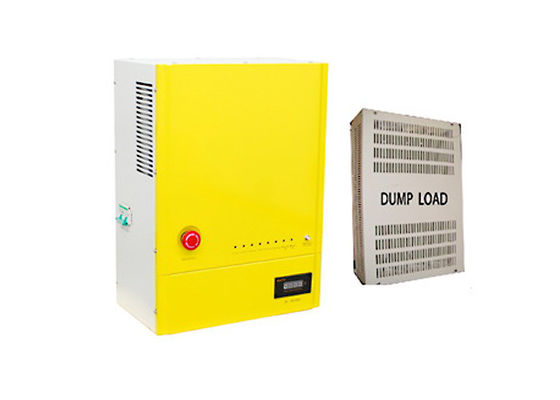

On Grid Wind Controller
| FKJ-GT ON GRID CONTROLLER Characteristics | |
| 1 | Big LCD Display real-time wind turbine voltage,current,solar panel voltage,current,DC output voltage,current,total power generation. (The main board is with button battery,in case of power failure, history data can be saved for 30 days) |
| 2 | PWM constant voltage system & Three-phase dump load system. |
| 3 | The controller can be equipped with mechanical yawing, rotate tail control, furled empennage, mechanical brake,hydraulic brake, electromagnetism brake and other brake functions foror the different wind turbine |
| 4 | Support WIFI and GPRS Customers can monitor the real-time working state via PC & mobile and query history working state. |
| 5 | Manual three-phase dump load switch The wind turbine will brake by using the switch. |
| 6 | Emergency stop switch The wind turbine will immediately brake when press down the emergency stop button |
ON-GRID Controller:
| Type | FKJ-GT 1.5KW | FKJ-GT 2KW | FKJ-GT 3KW |
| Wind turbine rated power | 1.5KW | 2KW | 3KW |
| Wind turbine Max. power | 3KW | 4KW | 6KW |
| Wind turbine rated voltage | AC220V | AC220V | AC220V |
| Function | Rectifier,control,DC output | ||
| Automatic protection function | Over voltage protection, network electric cut off protection, regulated supply output, arrester | ||
| Manual function | Manual brake, reset, emergency switch | ||
| Display mode | LCD | ||
| Display content | Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power. | ||
| PWM constant voltage | ≥320dc | ≥320dc | ≥320dc |
| Wind turbine 3-phase dump load voltage | 350±5Vdc | 350±5Vdc | 350±5Vdc |
| Wind turbine 3-phase dump load time-lapse | 12-20 min | 12-20 min | 12-20 min |
| PWM dump load fuse | 10A | 10A | 16A |
| Fuse of DC output | 16A | 16A | 20A |
| Work environment temperature | -30-60°C | ||
| Type | FKJ-GT5KW | FKJ-GT5KW | FKJ-GT10KW | |
| Wind turbine rated power | 5KW | 5KW | 10KW | |
| Wind turbine Max. power | 10KW | 10KW | 20KW | |
| Wind turbine rated voltage | AC220V | AC380-400V | AC380-400V | |
| Function | Rectifier,control,DC output | |||
| Automatic protection function | Over voltage protection, network electric cut off protection, regulated supply output, arrester | |||
| Manual function | Manual brake, reset, emergency switch | |||
| Display mode | LCD | |||
| Display content | Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power. | |||
| PWM constant voltage | ≥320dc | ≥520dc | ≥520dc | |
| Wind turbine 3-phase dump load voltage | 350±5Vdc | 540±5Vdc | 540±5Vdc | |
| Wind turbine 3-phase dump load time-lapse | 12-20 min | 12-20 min | 12-20 min | |
| PWM dump load fuse | 25A | 16A | 32A | |
| Fuse of DC output | 32A | 20A | 40A | |
| Work environment temperature | -30-60°C | |||
| Type | FKJ-GT15KW | FKJ-GT20KW | FKJ-GT30KW |
| Wind turbine rated power | 15KW | 20KW | 30KW |
| Wind turbine Max. power | 30KW | 40KW | 60KW |
| Wind turbine rated voltage | AC380V-400V | AC380V-400V | AC380V-400V |
| Function | Rectifier,control,DC output | ||
| Automatic protection function | Over voltage protection, network electric cut off protection, regulated supply output, arrester | ||
| Manual function | Manual brake, reset, emergency switch | ||
| Display mode | LCD | ||
| Display content | Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power. | ||
| PWM constant voltage | ≥520dc | ≥520dc | ≥520dc |
| wind turbine 3-phase dump load voltage1 |
540±5Vdc | 540±5Vdc | 540±5Vdc |
| wind turbine 3-phase dump load voltage2 |
------------ | 540±5Vdc | 550±5Vdc |
| Time-lapse of the wind turbine 3-phase dump load2 |
12-20 min | 12-20 min | 12-20 min |
| PWM dump load fuse | 50A | 63A | 80A |
| Fuse of DC output | 63A | 80A | 100A |
| Work environment temperature | -30-60°C | ||
On-Grid Controller
1. Greef controller use Carton or Plywooden case.
2. Pakage size and weight, please contact our sales.
3. Shipping by sea with FCL LCL or by air or by Express(DHL/FedEx/TNT/UPS etc.).
If you have any request in package and shipping please tell our sales we will do according to your request.
The controller is 1 year warranty for free, All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
