Place of Origin:
China
Brand Name:
GreeF
Certification:
CE
Model Number:
Rose-2.0

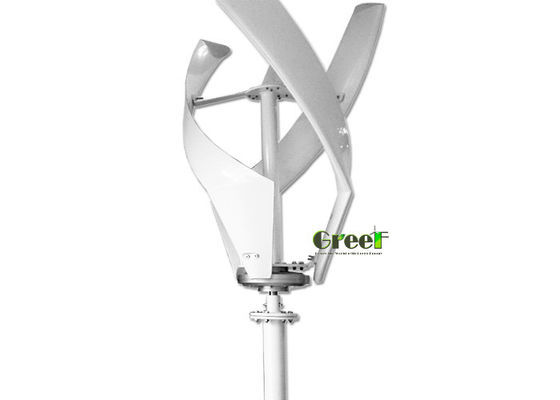

200W Vertical Axis Wind Turbine
Product Parameters
Model | ROSE-2.0 |
Performance | |
Rated Power | 200W |
Max Power | 250W |
Start Wind Speed | 1.0m/s (2.24mph) |
Rated Wind Speed | 10m/s(22.4mph) |
Working Wind Speed | 1-25m/s (2.24-56 mph) |
Safety Wind Speed | 50m/s(112mph) |
Physical Parameters | |
Blades Length | 1.16M(3.80ft) |
Blades Rotor Diameter | 0.75M(2.46ft) |
Blades Material &Quantity | FRP /3PCS |
Mill Weight | 33kg(11+22) |
Swept Area | 0.90㎡ |
Tower Height | 6m(19.68ft.) |
Generator Parameters | |
Generator Type | Axial Flux Coreless outer rotor disc permanent magnet direct drive generator |
Rated Speed | 200RPM |
Start Torque | <0.1N.M |
Option Voltage | 12-24V |
Protection Method | Electromagnetic Brake +PWM |
Protection Grade | IP54 |
Working Temperature | -40-50℃ |
Life time | 20 Years |
200W vertical axis wind mill are a type of wind turbine where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. they are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.
GreeF 200W vertical axis wind mill are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.
