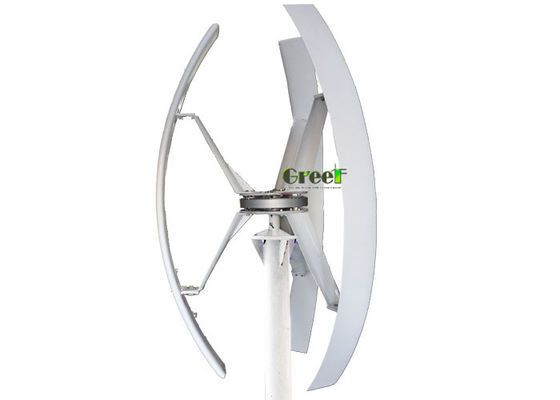

Vertical wind generator 500w to 5kW small home vertical wind turbine

Vertical wind generator 500w to 5kW small home vertical wind turbine

maglev vawt wind turbine

portable wind turbine

Place of Origin:

CHINA

Brand Name:

GreeF

Certification:

CE

Model Number:

GV-1KW

Contact Us
Request A Quote
Product Details
Rated Power:
1KW
Start Wind Speed:
2.8m/s
Rated Wind Speed:
11m/s(24.64mph)
Generator Type:
Coreless Disc Permanent Magnent Generator
Generator Material:
Aluminium Body+copper Wire+Nd-Fe-B
Rated Rotor Speed:
150rpm
Rated Voltage:
24V - 220V
Blades Material:
FRP
Blades Quantity:
3PCS
Warranty:
3 Years
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Foam + Plywooden Case
Delivery Time
25-30 Working Days
Payment Terms
L/C, T/T, Western Union
Product Description


1kW Vertical Axis Wind Turbine



Product Description



1kW vertical axis wind mill are a type of wind turbine where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. they are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.



GreeF1kW vertical axis wind mill are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.



Vertical wind generator 500w to 5kW small home vertical wind turbine 0Vertical wind generator 500w to 5kW small home vertical wind turbine 1




Model

GV-1KW

Performance



Rated Power

1kW

Max Power

1.5kW

Start Wind Speed

2.8m/s   (6.27mph)

Rated Wind Speed

11m/s(24.64mph)

Working Wind Speed

3-25m/s   (6.72-56 mph)

Safety Wind Speed

50m/s(112mph)

Physical Parameters



Blades Length

2.65M(8.69ft)

Blades Rotor Diameter

1.4M(4.59ft)

Blades Material &Quantity

FRP /3PCS

Mill Weight

175kg

Tower Height

6m(19.68ft.)

Generator Parameters



Generator Type

Axial Flux Coreless outer rotor disc permanent magnet direct drive generator

Rated Speed

150RPM

Start Torque

<0.3N.M

Option Voltage

24-220V

Protection Method

Electromagnetic   Brake +PWM

Protection Grade

IP54

Working Temperature

-40-50℃

Life time

20   Years







Application





We can provide different system for customers according their request.

For example, Off-Grid System, On-Grid System







Project Show





13 sets of Vertical Axis Wind Turbine  and other project:



.jpg







Company Information



Our main Vertical Axis Wind Turbines are free 3 years warranty

All lifelong technical support and part cost supply.



(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
