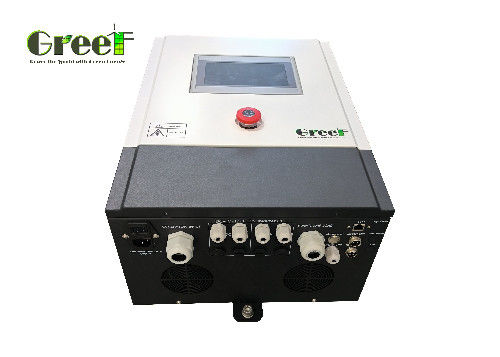

5kw On Grid Controller , Solar Power Charge Controller With Dump Load

5kw On Grid Controller , Solar Power Charge Controller With Dump Load

grid tie controller

wind turbine dump load controller

Place of Origin:

China

Brand Name:

GreeF

Certification:

CE

Model Number:

GT-PCTC

Contact Us
Request A Quote
Product Details
Product Name:
On Grid Wind Controller
Type:
AC To DC Converter
Function:
Rectifier, Control, DC Output
Display:
LCD Screen
Certification:
CE
Output Type:
DC
Packaging:
Carton Or Plywood Case
Application:
Wind Turbine
Color:
White And Black
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Carton or Plywooden Case
Delivery Time
5-20 working days
Payment Terms
T/T, Western Union, L/C
Product Description

 On Grid Wind Controller

Product Description

5kw On Grid Controller , Solar Power Charge Controller With Dump Load 0

SYSTEM



We can make customized solar generation system solutions according to your requirements

5kw On Grid Controller , Solar Power Charge Controller With Dump Load 1

5kw On Grid Controller , Solar Power Charge Controller With Dump Load 2



Technical Data

ON-GRID Controller:



5kw On Grid Controller , Solar Power Charge Controller With Dump Load 3

5kw On Grid Controller , Solar Power Charge Controller With Dump Load 4


Detail Pictures



5kw On Grid Controller , Solar Power Charge Controller With Dump Load 55kw On Grid Controller , Solar Power Charge Controller With Dump Load 65kw On Grid Controller , Solar Power Charge Controller With Dump Load 7



Packaging & Shipping



1. Greef controller use Carton or Plywooden case.

2. Pakage size and weight, please contact our sales.

3. Shipping by sea with FCL LCL or by air or by Express(DHL/FedEx/TNT/UPS etc.).

If you have any request in package and shipping please tell our sales we will do according to your request.



Our Services



What problem does GT-PCTC controller solve ?

Compared with PV grid-tied inverters, small wind turbine grid-tied inverters market supply have following problem :

◐ Few professional small wind turbine grid-tied invertor factories

◐ Small wind turbine grid-tied invertors are several times more expensive than PV inverters

◐ Quality is unstable, no after-sale service

◐ Low efficiency

◐ No grid connection certification



GREEF GT-PCTC series controller can works together with SOLIS brand PV grid-tied inverter , track and control the grid-tied power all the time.User can setting the wind turbine working power curve by themselves on the screen according to the wind turbine performance . it can Inspection the generator speed and according to the setting power curve speed VS power to let the invertor working accordingly





How does the protection systems working?



PWM Constant voltage + Three-phase dump load brake

  • PWM constant voltage is control the wind turbine output not exceed 120% of the wind turbine rated power .
  • If exceeding of PWM’s capacity, it means the wind turbine is over speed , then the three-phase dump load system will brake the wind turbine automatically & immediately.After10- 20 minutes, the brake will release , then the wind turbine will re-start to generation power.
  • When meet strong wind , the controller can conduct constant voltage output to ensure the inverter safety running.
  • When grid-tied inverter disconnected, the controller can conduct constant voltage output and wait for inverter resumption.
  • When the grid is cut off, the three-phase dump load will automatically start to brake the wind turbine and let the inverter stop output to grid. When the grid recover, the controller will also recover the wind turbine.



How about other functions ?

Surge protector: Limit the transient over-voltage that breaks into the wind turbine's power line to a voltage range that the equipment can withstand, or discharge a powerful lightning current into the ground to protect the equipment from lightning strikes.

Emergency stop switch: in case of emergency, press down the emergency stop button in the front panel to cut off all power supply of the controller and the wind turbine will immediately brake(three-phase dump load).

Manual Brake switch: To using this switch, the wind turbine will brake all the time .(three-phase dump load).








What other optional function?



Modbus Communication protocol is available. Convenient to carry out the secondary development.

RS485 is available. Adjusting the technical specification via RS485

❸Support WIFI and GPRS. Customers can monitor the real-time working state of the on grid wind power system via PC and mobile and query history working sate. Both Android and OS are compatible in Mobile.

5kw On Grid Controller , Solar Power Charge Controller With Dump Load 8
