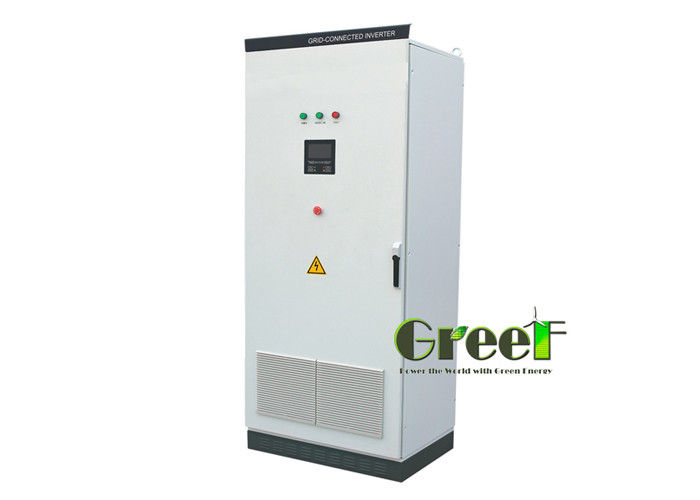

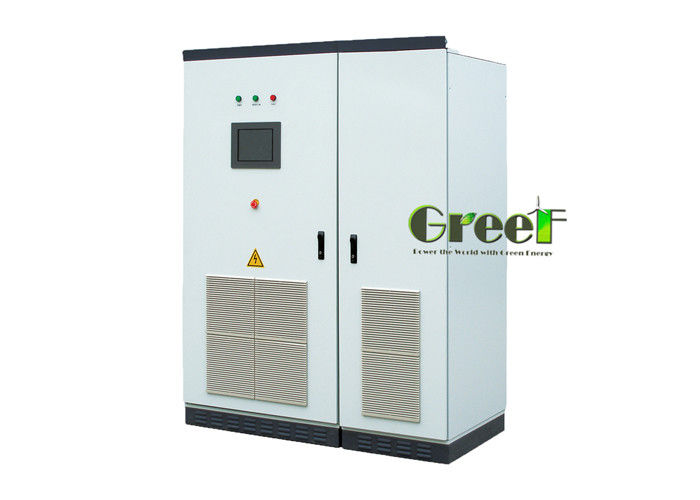

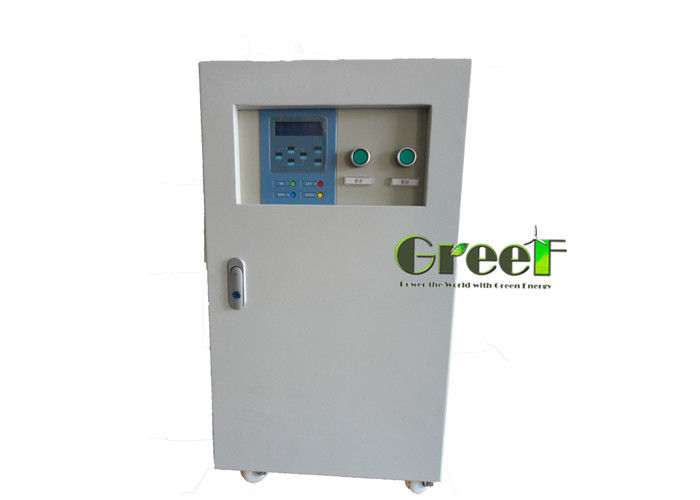

On Grid Tie Inverter For Hydro Project Wind Turbine System

Grid Tie /On Grid Inverter

The Grid tie Inverter is the core product for on-grid power system ,which will convert the DC to AC and feed the power into the grid.GREEF can provide customized inverter for your wind turbine system ,solar power system ,wind solar hybrid system ,hydro energy system etc. The power range can be from 3kW to 2500kW .

• Main circuit adopt USA TI company DSP chip and IGBT from Mitsubishi, driving protection is from Japan Mitsubishi chip
• SPWM pulse width modulation technology,pure sine wave output.
• Power factor approaches 1
• Inverting current close-cycle control
• Power to control and adjustable
• Wide input voltage range to adapt to the needs of different occasions
• Have a full range scheme of power protection
• Perfect self-detection and self-protection function.
• Automatic protection function when there’s something wrong with the system
• Circuit frame compact,  Max.Efficiency≥95%

GREEF provide whole system solution according to each customer's requirements .The Inverter can be customized for each customer .

Following is the system picture designed for our customers .

1.Plywooden case . And for delivery by sea we can use tray

2.Pakage size and weight please refer to our sales.

3.Shipping by sea with FCL LCL or by air  are available.

If you have any request in package and shipping please tell our sales we will do according to your request.

GREEF also provide on grid and off grid controller , solar wind hybrid on-grid invertor and solar on-grid invertor, please contact our sales to get details, we will reply you within 24 hours!
