PWM Off Grid Controller , Wind Generator Charge Controller WIFI Function

PWM Off Grid Controller , Wind Generator Charge Controller WIFI Function

off grid charge controller

off grid solar charge controller

Place of Origin:

CHINA

Brand Name:

GreeF

Certification:

CE

Model Number:

FKJ-GT-B

Contact Us
Request A Quote
Product Details
Product Name:
Off Grid Wind Turbine Controller
Type:
AC To DC Converter
Function:
Rectifier,control,DC Output
Display:
LCD Screen
Certification:
CE
Output Type:
DC
Packaging:
Carton Or Plywood Case
Application:
Wind Turbine Or Generator System
Warranty:
1 Year For Free
Color:
Blue
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Foam + Plywooden Case
Delivery Time
10-20 working days
Payment Terms
L/C, T/T, Western Union
Product Description

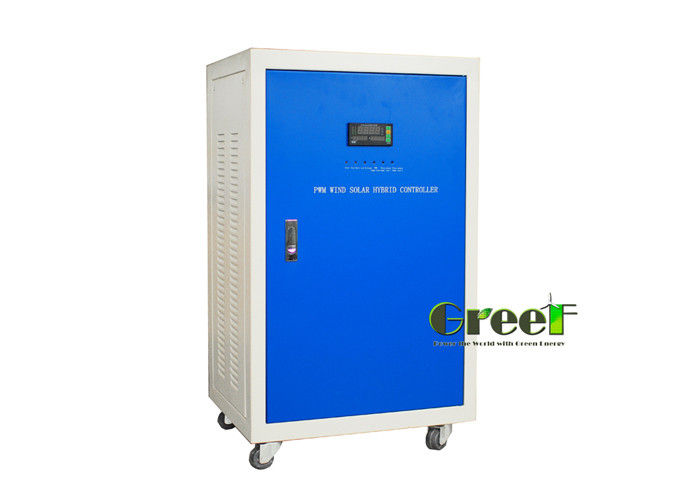

Off Grid Wind & Solar Hybrid Controller



Product Description



FKJ-B OFF GRID CONTROLLER  Characteristics

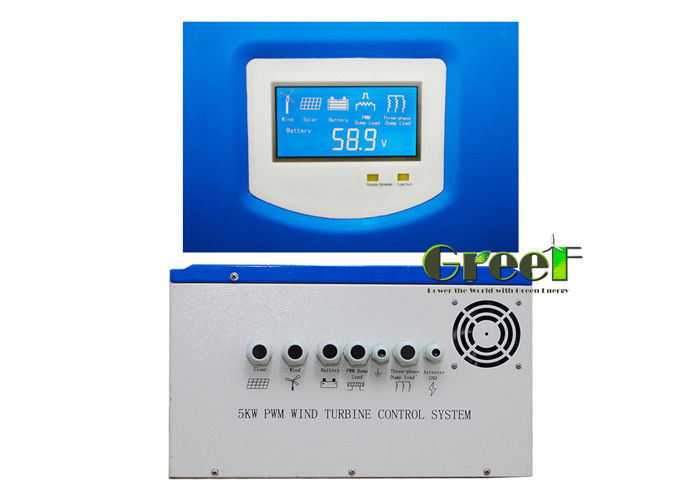

1 Big LCD Display
real-time wind turbine voltage, current, solar panel voltage, current, DC output voltage and current, total power generation.
(The main board is with button battery, in case of power failure, history data can be saved for 30 days)
2 PWM constant voltage system & Three-phase dump load system.
3 The controller can be equipped with mechanical yawing, rotate tail control, furled empennage, mechanical brake,hydraulic brake, electromagnetism brake and other brake functions foror the different wind turbine
4 Support WIFI and GPRS
Customers can monitor the real-time working state via PC & mobile and query history working state.

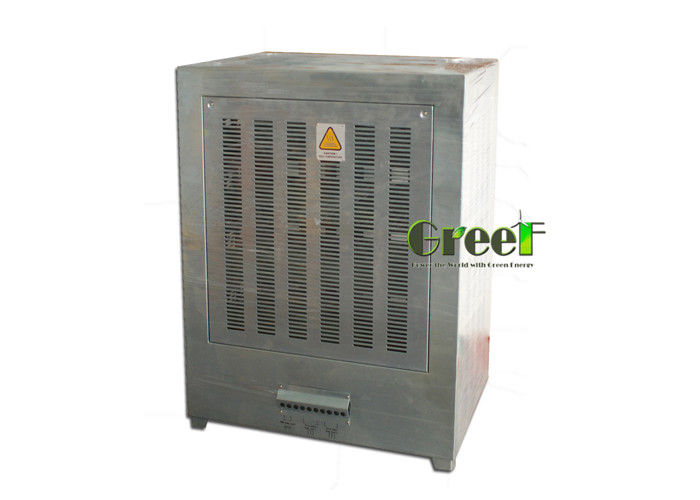

5 Manual three-phase dump load switch
The wind turbine will brake by using the switch.
6 Emergency stop switch
The wind turbine will immediately brake  when press down the emergency stop button







Technical Data

Type FKJ-B 500W FKJ-B 1KW FKJ-B 3KW
Wind turbine rated power 500W 1KW 3KW
Wind turbine Max. power 1KW 2KW 6KW
Battery 12VDC 24VDC 48VDC 24 48 96 110 220VDC
Function Rectifier,charge, control,DC output
Automatic protection function Over voltage protection, network electric cut off protection, regulated supply output, arrester
Manual function Manual brake, reset, emergency switch
Display mode LCD+LED
Display content Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.
PWM constant voltage ≥14Vdc ≥29Vdc ≥116Vdc
Wind turbine 3-phase dump load voltage 15±1Vdc 30±1Vdc 120±2Vdc
Solar control stop charging voltage 15±1Vdc 29±1Vdc 120±2Vdc
PWM fuse 50A 50A 40A
Fuse of DC output 63A 63A 63A
Work environment temperature -30-60°C



Type FKJ-B 5KW FKJ-B 10KW FKJ-B 20KW
Wind turbine rated power 5KW 10KW 20KW
Wind turbine Max. power 10KW 20KW 40KW
Wind turbine rated voltage 48-240VDC 120-240VDC 420VDC
Function Rectifier,charge, control,DC output
Automatic protection function Over voltage protection, network electric cut off protection, regulated supply output, arrester
Manual function  Manual brake, reset, emergency switch
Display mode LCD+LED
Display content Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.
PWM constant voltage ≥48-240Vdc ≥145-290Vdc ≥507dc
Wind turbine 3-phase dump load voltage 300±5Vdc 300±5Vdc 520±5Vdc
Solar control stop charging voltage 300±5Vdc 300±5Vdc 520±5Vdc
PWM fuse 32A 63A 80A
Fuse of DC output 40A 100A 125A
Work environment temperature -30-60°C



Type FKJ-B 30KW FKJ-B 50KW
Wind turbine rated power 30KW 50KW
Wind turbine Max. power 50KW 480KW
Wind turbine rated voltage 420VDC 420VDC
Function Rectifier,charge, control,DC output
Automatic protection function Over voltage protection, network electric cut off protection, regulated supply output, arrester
Manual function  Manual brake, reset, emergency switch
Display mode LCD+LED
Display content Wind turbine voltage, current, power; Solar voltage, current, power; DC output voltage, DC output current, DC output power, total power.
PWM constant voltage ≥507dc ≥520dc
wind turbine 3-phase
dump load voltage1
520±5Vdc 520±5Vdc
Solar control stop charging voltage 520±5Vdc 520±5Vdc
PWM fuse 100A 100A
Fuse of DC output 180A 200A
Work environment temperature -30-60°C


Detail Pictures









Packaging & Shipping



1. Greef generator use inner foam protection, outer Plywooden case.

2. Package size and weight, please contact our sales.

3. Shipping by sea with FCL LCL or by air or by Express (DHL/FedEx/TNT/UPS etc.).

If you have any request in package and shipping, please tell our sales.

We will do according to your request.






Our Services



The controller is 1 year warranty for free, All lifelong  technical support and part cost supply.



(1) The warranty period is start from the date of shipment which show on the Bill of Loading or Air Waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.



2KW wind turbine system.jpg    3KW+2KW 48Vdc.jpg
