Pure Sine Wave Off Grid Power Inverter / Off Grid Solar Inverter

Pure Sine Wave Off Grid Power Inverter / Off Grid Solar Inverter

off grid micro inverter

grid tie power inverter

Place of Origin:

China

Brand Name:

GreeF

Certification:

CE

Model Number:

WI

Contact Us
Request A Quote
Product Details
Output Wave:
Pure Sine Wave
Display Mode:
LCD
Over-load Capacity:
120% 1min,150% 10s
Invert Efficiency:
90% Max
Isolating Mode:
Toroidal Transformer
Noise (1m):
≤40dB
Ambient Temperature:
-20~+55℃
Working Altitude:
≤4000m
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Carton or Plywooden Case
Delivery Time
10-25 Working days
Payment Terms
T/T, Western Union, L/C
Product Description



Off-Grid Pure Sine Wave Inverter





Description



Off-grid pure sine wave inverter is intelligent equipment which can transform the direct current to stable alternating current. The apparatus is used to supply for Traffic inconvenience, the harsh environment of the mountain area, a pasturing area, border, islands and other areas without electricity.



The apparatus has decent appearance, easy operation, and visual indication of LCD, with the perfect protection function, high charging efficiency, and low no-load loss.



Advantages

  • Reliability:Intelligentized, modularized, simple structure design with powerful function and stable performance; the high-quality components and the strict production process make the inverter suitable for severe environment. It also has reliable performance and long lifespan.
  • Pure Sine Wave Output: Compared with square wave and modified sine wave, the inverter has stronger load capacity. The apparatus can drive inductive load and any other AC load within the required power.
  • LCD Display: The LCD display battery voltage, AC output voltage and status parameters.(Remark: If inverter output capacity ≤1kVA, AC output voltage will not display )
  • High Efficiency Transformer Isolation: Power frequency toroidal transformer, which ensures high efficiency and low no-load loss of the inverter.
  • Perfect Protection Function: Battery over voltage, over discharge, anti-reverse protection; output over load, short circuit, over temperature protection; lightning protection etc.
  • Optional by-pass function: When the battery is over discharge, the inverter will intelligently switch to Utility grid to drive load.
  • Optional light control and time control function: According to illumination intensity, the inverter can control output without manual operation. This function is available with our matched controller.



Product Model WI50-48-1N01

WI100-110-3N01

WI200-220-3N01

WI300-240-3N01

Rated Output Capacity 5kVA

10kVA

20kVA

30kVA

Rated Battery Voltage 48VDC

110VDC

220VDC

240VDC

Over Voltage Shutoff 68VDC

156VDC

312VDC

340VDC

Over Voltage Recovery 66VDC

151VDC

302VDC

330VDC

Under Voltage Shutoff 43.2VDC

99VDC

198VDC

216VDC

Under Voltage Recovery 48VDC

110VDC

220VDC

240VDC

No-load Loss ≤1.3A

≤1.0A

≤0.9A

≤1.6A

Output Wave Pure sine Wave

Pure sine Wave

Pure sine Wave

Pure sine Wave

Display Mode LCD

LCD

LCD

LCD

Cooling Fan

Fan

Fan

Fan

Rated Output Voltage 110VAC

220VAC

220VAC

220VAC

Wave Distortion ≤4%

≤4%

≤4%

≤4%

Output Frequency 60±0.5Hz

50±0.5Hz

50±0.5Hz

50±0.5Hz

Dynamic Response 5%

5%

5%

5%


Detailed Pictures

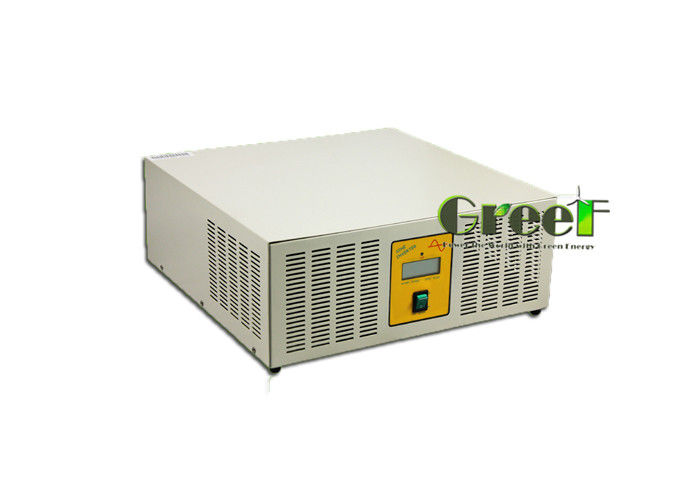

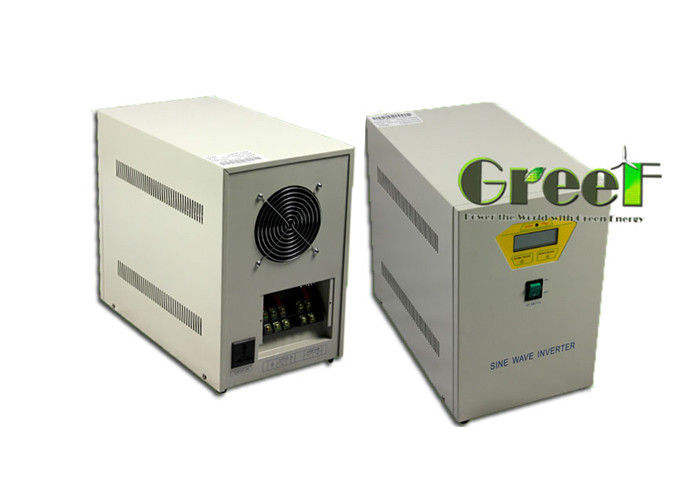

Pure Sine Wave Off Grid Power Inverter / Off Grid Solar Inverter 0Pure Sine Wave Off Grid Power Inverter / Off Grid Solar Inverter 1

Company's Picture



The inverter is 1 year warranty for free, All lifelong technical support and part cost supply.



(1) The warranty period is start from the date of shipment which show on the Bill of Loading or Air Waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.

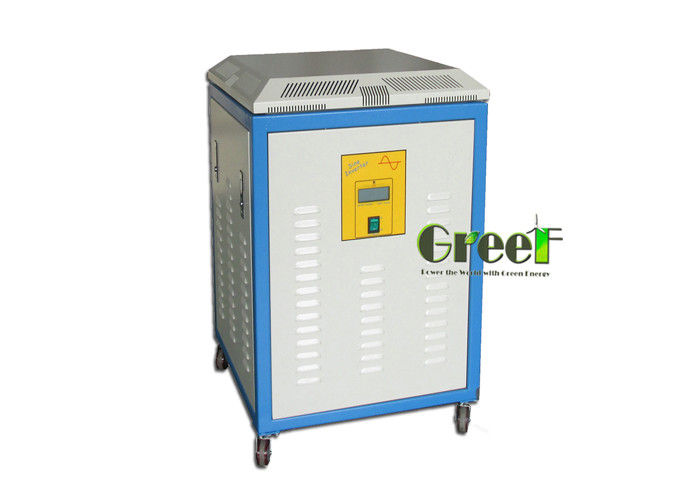

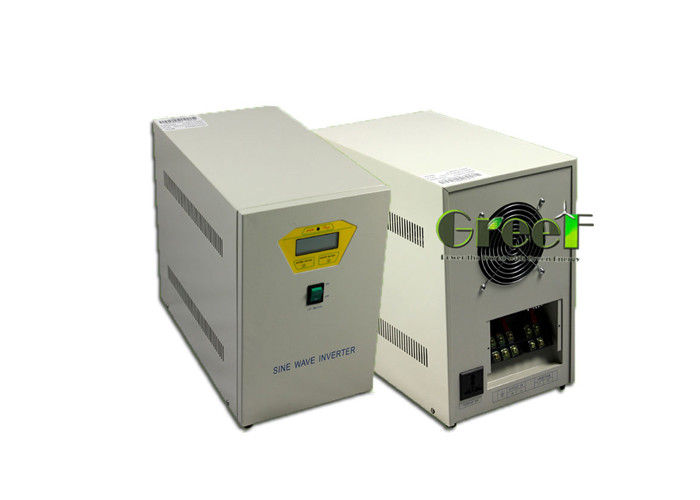

Pure Sine Wave Off Grid Power Inverter / Off Grid Solar Inverter 2     Pure Sine Wave Off Grid Power Inverter / Off Grid Solar Inverter 3







GREEF also provide on grid / off grid controller and on-grid invertor, please contact our sales to get details, we will reply you within 24 hours!
