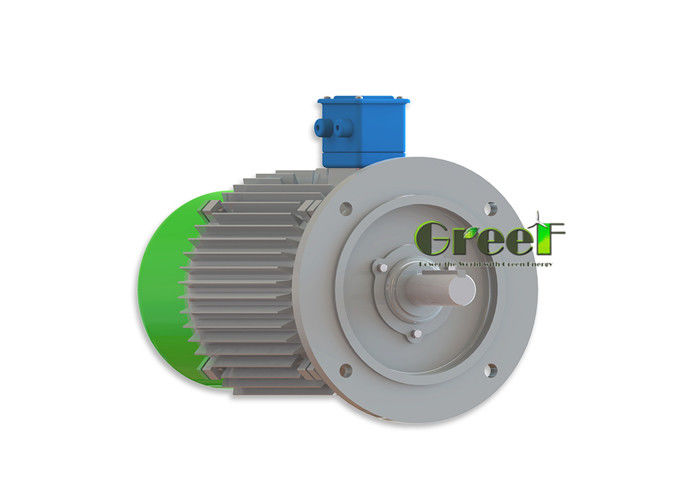

Vertical 50kW Brushless Permanent Magnet Alternator

Vertical 50kW Brushless Permanent Magnet Alternator
Vertical 50kW Brushless Permanent Magnet Alternator Vertical 50kW Brushless Permanent Magnet Alternator

Large Image :  Vertical 50kW Brushless Permanent Magnet Alternator

Product Details:
Place of Origin: CHINA
Brand Name: GreeF
Certification: CE
Model Number: GDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Foam + Plywooden Case
Delivery Time: 20-25 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 400 sets per month
Detailed Product Description
Rated Power: 50kW Rated Rotate Speed: 20rpm-3000rpm
Winding Material: 100% Copper Shaft Material: Steel
Generator Material: Aluminium Body+Cooper Wire Bearing: SKF Bearing
Installation: Horizontal / Vertical Wending Method: Star/Y
High Light:

Brushless Permanent Magnet Alternator

,

50kW Permanent Magnet Alternator

,

Vertical Permanent Magnet Alternator

50kW Brushless Permanent Magnet Alternator



Permanent magnet alternator

Permanent magnet generator (PMG), also known as permanent magnet alternator (PMA), uses the magnetic field of the rotor to provide stable and reliable power. The 5000kw alternator can provide excellent voltage stability, so no further adjustment is required in most applications. PMG is often used in industrial applications such as turbines and engines to generate commercial electricity. These brushless permanent magnet alternators can respond quickly to major load changes and produce output waveforms without spikes and spikes. EMI generation is very low; in most cases, it can be considered zero.

Advantages:


 1. Rare earth Nd-Fe-B permanent magnet generator. energy save energy more than 15% than ordinary generators.

2. Permanent magnet rotor structure, no excitation winding, no carbon brushes, no slip rings, no need gear box. Simple structure, reliable ,durable and Maintenance free.

3. Multi poles design, improve the frequency and efficiency of rectifiers and inverters. Saving cost .

4. Started directly, without control cabinet, replace the asynchronous motor totally.

5. H class insulation, vacuum pressure impregnation.

6. Use SKF bearings

7. Power factor close to 1,no need add power factor compensation equipment.

8. Small heat, aslo can add fan cooling or water cooling

9. Long life time >20years, Strong rotors, could run at high speed.24hours 365days running.

10. Energy-saving, return investment within 1-2years.



Technical Data

Drawing Sample





Vertical 50kW Brushless Permanent Magnet Alternator 0

Features of 50kw permanent magnet generator

Low startup speed;
Low torque
Gearless, direct drive, low-speed generator.
Suitable for all environments
Excellent heat dissipation
High-quality bearings and magnets are easy to dissipate heat and maintain magnetism.
The designed service life is 20 years.


                        Vertical 50kW Brushless Permanent Magnet Alternator 1
