On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator

On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator

On Grid Pitch Mechanism Wind Turbine

20kW Wind Driven Generator

900RRM Pitch Mechanism Wind Turbine

Place of Origin:

QINGDAO

Brand Name:

GREEF

Certification:

CEC

Model Number:

AH-5KW-30KW

Contact Us
Request A Quote
Product Details
Type:
Wind Power Generator
Rated Power:
300w-30kw
Rated Voltage:
12V / 24V / 48V
Generator Type:
3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine
Application:
Electricity Generation
Warranty:
2 Years
Portection Grade:
IP 54
Color:
Multicolor
Tolerance:
+/-0.1mm Or According To Customer Request
Life Time:
20 Years
Size:
Customized Magnet Size
Rated Rotor Speed:
20-900RRM
Generator:
3-Phase Permanent Magnet Generator AC Alternator
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Inner Foam + Plywooden case
Delivery Time
25DAY
Payment Terms
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
25 Units
Product Description
Why choose AH-20KW wind turbine?



Leading technology-intelligent control, strong system scalability
1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.

High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.

A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 0
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-20KW
Wind rotor diameter (m)
9.8
Blade material and quantity
Fiber glass reinforced * 3
Rated power (w)
20,000
Rated wind speed (m/s)
11
Rated rotate speed (rpm)
175
Working wind speed (m/s)
3-25
Start up wind speed (m/s)
2.5
Survived wind speed (m/s)
59.5
Working voltage (v)
DC450V
Speed regulation method
Pitch control + Active yawing +electromagnet brake
Stop method
Pitch controlled brake +Active yawing
Generator style
Three phase, permanent magnet
Wind turbine weight (kg)
1210
Products Description
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 1
Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 2
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 3
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 4
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 5
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 6
Project case

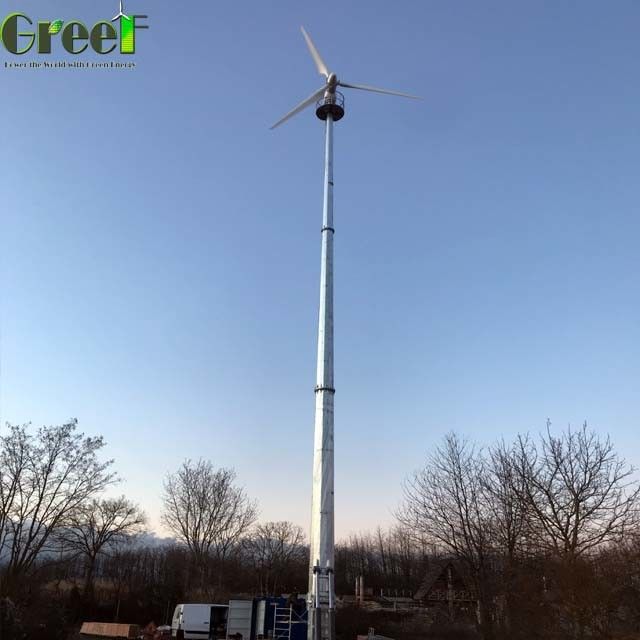

20kW In France


On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 7
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 8

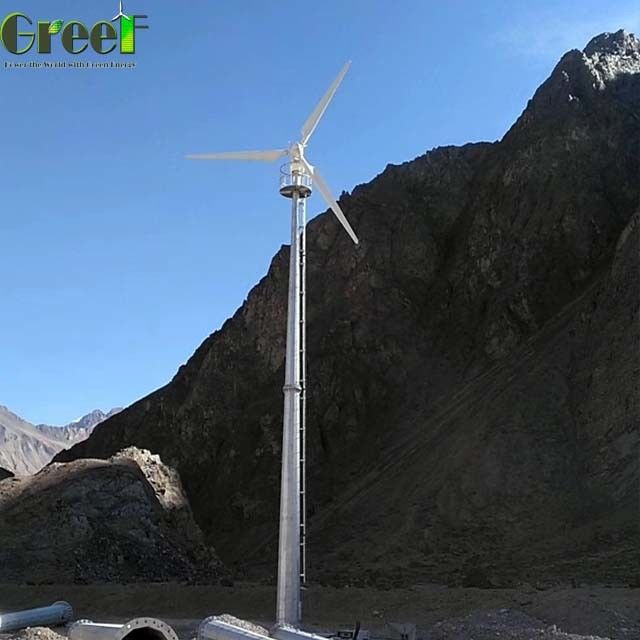

20kW In Kashgar


On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 9
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 10

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 11
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 12
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 13
Systems
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 14
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 15
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 16
On Grid Pitch Mechanism Wind Turbine 20kW Wind Driven Generator 17
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
