Product Details:
Payment & Shipping Terms:
|
| Type: | Wind Power Generator,50kw To 500KW Permanent Magnet Alternator | Rated Power: | 300w-30kw |
|---|---|---|---|
| Rated Voltage: | 12V / 24V / 48V | Generator Type: | 3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine |
| Application: | Electricity Generation | Warranty: | 1 Year Or More |
| Color: | Customized Color | Material: | Customized Material |
| Tolerance: | +/-0.1mm Or According To Customer Request | Life Time: | 20-50years |
| Grade: | R9.5X21 | ||
| High Light: | 5KW Low Rpm Pmg Alternator,10KW Low Rpm Pmg Alternator,10KW pmg generator low rpm |
||

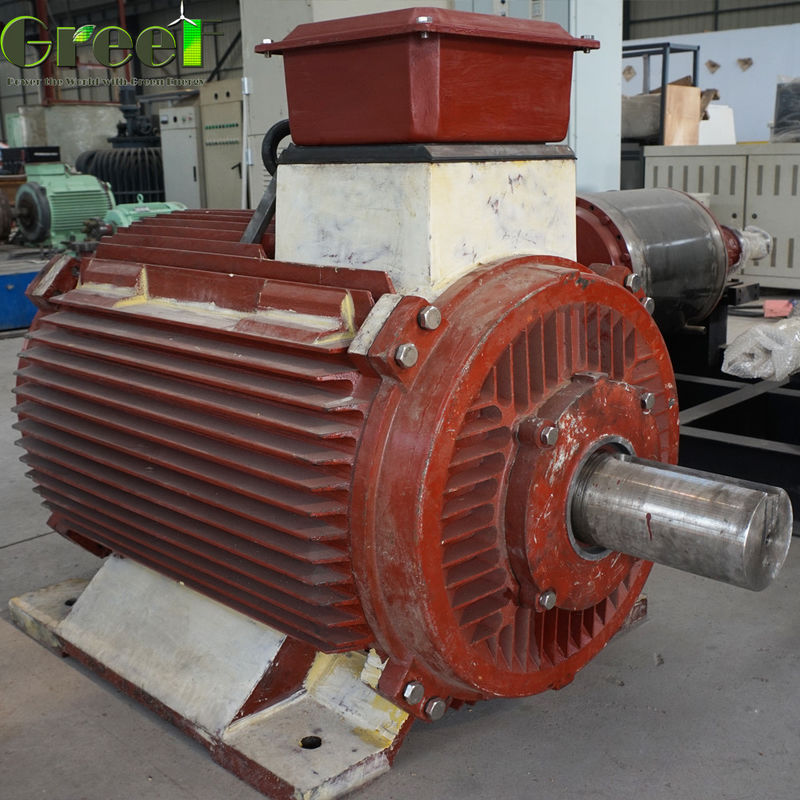

5KW 10KW AC three phase low rpm pmg alternator, pmg generator
PMG Parameters
| Rated power | 5KW 10KW |
| Rated rotate speed | 20RPM - 3000RPM |
| Rated voltage | 120VAC - 690VAC |
| Wending Method | Y |
| Generator type | Permanent Magnet AC |
| Number of phase | Three phase |
| Classification of degrees | IP54 |
| Generator shell material | Steel |
One model drawing for your reference:
| 1 | Rare earth Nd-Fe-B permanent magnets |
| 2 | Low Speed |
| 3 | Direct Drive ,no use gear-box |
| 4 | SKF bearing |
| 5 | Power factor close to 1 |
| 6 | Maintenance free , can be used in all environments . |
| 7 | Long life time >20years, could run at high speed 24 hours 365 days . |
| 8 | Multi poles design, improve the frequency and efficiency of rectifiers and inverters. |
| 9 | Customized : Voltage, Speed, Power, Frequency etc. |
| 10 | H class insulation, vacuum pressure impregnation. |
| 11 | Excellent heat dissipation , also can add fan cooling |
GREEF Technical Team can provide the complete ON-grid and Off-grid solution for the project which used our permanent magnet generator .
All the equipments can be produced according to customer's specific requirements
GreeF company supply variety of permanent magnet generators which is suitable for driven by following equipments to
| 1 | Driven by Wind Power --------Wind turbine |
| 2 | Driven by Water Power ------- Hydro generator |
| 3 | Driven by Belt with Motors |
| 4 | Driven by Motor |
| 5 | Dirven by perpetual motion machine |
| 6 | Dirven by test plant |
| 7 | Dirven by yourselves creation |
| 8 | Driven the permanent magnet generator and make it rotate then it can generate power |
