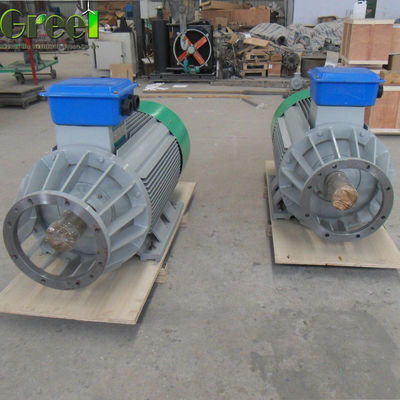

150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW

150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW
150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW 150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW 150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW 150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW

Large Image :  150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW

Product Details:
Place of Origin: QINGDAO
Brand Name: GREEF
Certification: CE
Model Number: GDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAY
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 Units
Detailed Product Description
Type: Wind Power Generator,50kw To 500KW Permanent Magnet Alternator Rated Power: 300w-30kw
Rated Voltage: 12V / 24V / 48V Generator Type: 3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine
Application: Electricity Generation Warranty: 1 Year Or More
Color: Customized Color Material: Customized Material
Tolerance: +/-0.1mm Or According To Customer Request Life Time: 20-50years
Grade: R9.5X21
High Light:

AC Three Phase Permanent Magnet Synchronous Generator

,

150rpm Permanent Magnet Synchronous Generator

,

1KW Permanent Magnet Synchronous Generator

150rpm AC Three Phase Permanent magnet synchronous generator 1KW 5KW 10KW 50KW 100KW 500KW 1MW 1.5MW 2MW 5MW

Product Description
Permanent Magnet Generators offer high efficiency energy conversion, particularly at partial load, and require no separate field excitation system. Our permanent magnet generators are lighter, more efficient, and require less assembly labor than competing designs.
Permanent Magnet Generators are used in a large number of applications such as Wind Turbines, Hydro Turbines, motors and others.
150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW 0
1
Rare earth Nd-Fe-B permanent magnets
2
Low Speed
3
Direct Drive ,no use gear-box
4
SKF bearing
5
Power factor close to 1
6
Maintenance free , can be used in all environments .
7
Long life time >20years, could run at high speed 24 hours 365 days .
8
Customized : Voltage, Speed, Power, Frequency etc.
9
Multi poles design, improve the frequency and efficiency of rectifiers and inverters.
10
H class insulation, vacuum pressure impregnation.
11
Excellent heat dissipation , also can add fan cooling
Rated power
0.5--5000
kW
Rated rotate speed
20--3000
rpm
Rated voltage
48--1140
Vac
Frequency
60/50
Hz
Number of Poles
24
Generator type
3phase AC Synchronous generator
Magnet type
NdFeB
Winding Method
Y
Magnet temperature level
Max.120℃
Winding temperature level
Max.180℃
Effienciency
>95%
Insulate Grade
H
Insulating resistance
100Mohm Min(500Vdc)
Classification of degrees
IP54
Generatror shell material
Cast Iron
Winding material
100% Copper
Shaft material
Steel
Iron Core
Cold rolled silicon steel sheet
Bearing brand
SKF
Cooling Method
Fan Cooling
Weight (N.W /G.W )
132kg /152kg
Packing Size
870*470*570mm
Installation
Horizontal
Advantages
Alternative Energy Generators
GREEF Company provide customized generator according to each customer 's requirements of Voltage, Speed, Power, Frequency etc.
RATED POWER
RATED SPEED
RATED VOLTAGE
FREQUENCY
0.5KW
20rpm~400rpm
12V~220Vac
10Hz~60Hz
1KW
20rpm~600rpm
12V~220Vac
10Hz~60Hz
2KW
20rpm~1000rpm
12V~400Vac
10Hz~60Hz
3KW
20rpm~1500rpm
48V~690Vac
10Hz~60Hz
5KW
20rpm~1500rpm
48V~690Vac
10Hz~60Hz
10KW
20rpm~1500rpm
120V~690Vac
10Hz~60Hz
15KW
20rpm~3000rpm
120V~690Vac
10Hz~60Hz
20KW
20rpm~3000rpm
120V~690Vac
10Hz~60Hz
25KW
20rpm~3000rpm
120V~1140Vac
10Hz~60Hz
30KW
20rpm~3000rpm
120V~1140Vac
10Hz~60Hz
50KW
20rpm~3000rpm
220V~1140Vac
10Hz~60Hz
80KW
20rpm~3000rpm
220V~1140Vac
10Hz~60Hz
100KW
20rpm~3000rpm
220V~1140Vac
10Hz~60Hz
150KW
20rpm~3000rpm
380V~1140Vac
10Hz~60Hz
200KW
20rpm~3000rpm
380V~1140Vac
10Hz~60Hz
250KW
20rpm~3000rpm
380V~1140Vac
10Hz~60Hz
300KW
20rpm~3000rpm
380V~1140Vac
10Hz~60Hz
500KW
20rpm~3000rpm
380V~1140Vac
10Hz~60Hz
700KW
20rpm~3000rpm
690V~1140Vac
10Hz~60Hz
800KW
20rpm~3000rpm
690V~1140Vac
10Hz~60Hz
1MW
200rpm~3000rpm
690V~1140Vac
10Hz~60Hz
2MW
200rpm~3000rpm
690V~1140Vac
10Hz~60Hz
3MW
200rpm~3000rpm
690V~1140Vac
10Hz~60Hz
20KW
20rpm~3000rpm
120V~690Vac
10Hz~60Hz
4MW
600rpm~3000rpm
690V~1140Vac
10Hz~60Hz
5MW
600rpm~3000rpm
690V~1140Vac
10Hz~60Hz
150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW 1
Systems
150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW 2
150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW 3
Customer Photos
150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW 4
150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW 5
150rpm AC Three Phase Permanent Magnet Synchronous Generator 1KW 5KW 10KW 50KW 100KW 6
