30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator

Certification
China Qingdao Greef New Energy Equipment Co., Ltd certification
China Qingdao Greef New Energy Equipment Co., Ltd certification
Customer Reviews
greef team is the best! i love them, they give professional and timely after-service. because of my unprofessional operation, the generator went wrong, but greef team helped me to solve this issue very patiently, the generator is good now, thanks again.

—— Jeam Mareie from Canada

¡Perfecto! Ayer, recibí este generador en Bogotá, muy buen generador. ¡Gracias

—— Stephen Brinker from Colombia

I ordered 10kW 100RPM model at the year of 2017, i ordered 1kW 180rpm this year, the disc generator has small torque,it is easy to rotate,thanks Greef new energy, I hope to do more buisness with more cheaper price on the year of 2019.

—— Prime Leisure from US

I'm Online Chat Now

30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator

30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator
30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator

Large Image :  30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator

Product Details:
Place of Origin: QINGDAO
Brand Name: GREEF
Certification: CE
Model Number: GH-30KW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $299-12999
Delivery Time: 25DAY
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50
Detailed Product Description
Type: Wind Power Generator,50kw To 500KW Permanent Magnet Alternator Rated Power: 5kw-30kw
Rated Voltage: 12V / 24V / 48V Generator Type: 3 Phase AC Permanent-magnet,1-3kw Vertical Axis Wind Turbine
Application: Electricity Generation Warranty: 3 Years
Portection Grade: IP 54
High Light:

Pitch Control Wind Turbine Generator 30kW

,

230v Pitch Control Wind Turbine Generator

,

ip54 horizontal wind generator

Why choose AH-30KW wind turbine?



Leading technology-intelligent control, strong system scalability
1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.

High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-30KW
Rotor diameter (m)
13.1
Blade material & Qty.
FRP *3
Rated power (kW)
30
Rated wind speed (m/s)
11
Rated rotating speed (r/min)
95
Generator type
3-phase PMG
Working wind speed (m/s)
3-30
Start-up wind speed(m/s)
2.5
Cut-in wind speed(m/s)
3
Survival wind speed (m/s)
60
Rated voltage (VDC)
450
Speed regulation method
Auto yawing+pitch-controlled
Wind answering method
Up wind+yawing
Stop method
Auto brake
Gale protection
Smart control+unattended
weight (kg)
2800
Noise level (dB)
≤65
Tower height (m)
≥20
Tower type
Free stand tower
Working temperature
-20℃~+50℃
Products Description
30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 0

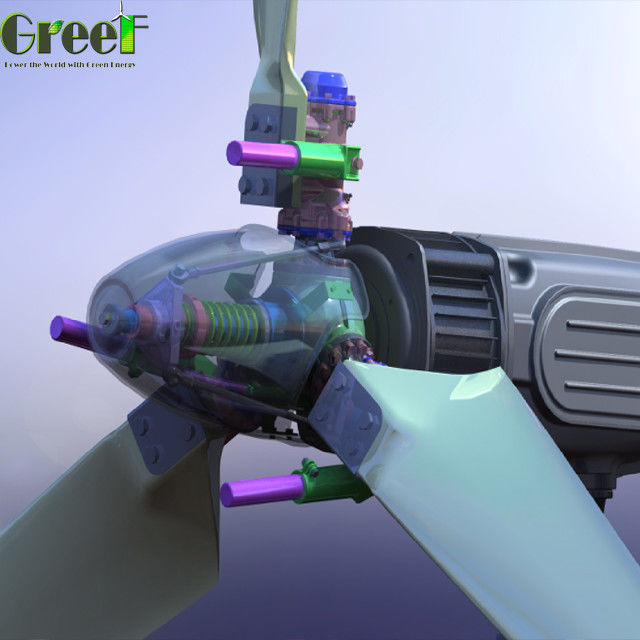

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 1
Project case

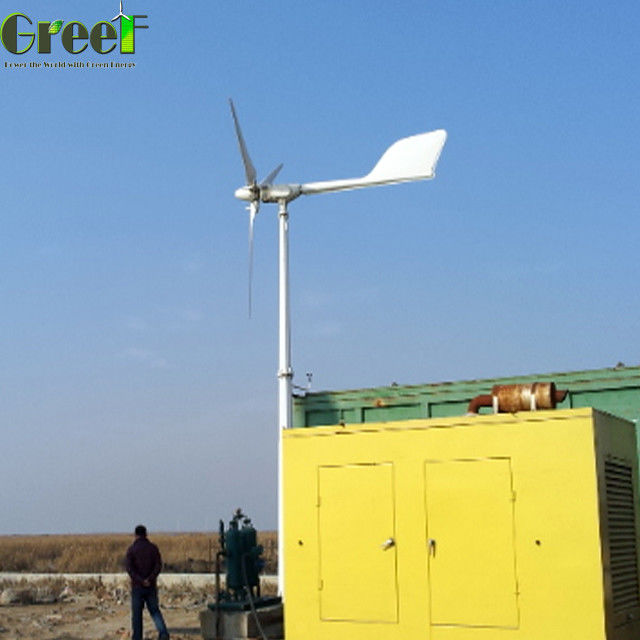

Seawater Desalination Project in Dafeng City Project at Xiliguole League in Inner Mongolia


30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 2
30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 3

28 Farm On-grid Systems in Italy


30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 4
30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 5

More projects


Systems
30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 6
30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 7
30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 8
30kW Horizontal Axis 230v Pitch Control Wind Turbine Generator 9
