Product Details:
Payment & Shipping Terms:
|
| Type: | Wind Power Generator,50kw To 500KW Permanent Magnet Alternator | Rated Power: | 300w-30kw |
|---|---|---|---|
| Rated Voltage: | 12V / 24V / 48V | Generator Type: | 3 Phase AC Permanent-magnet,1-3kw Vertical Axis Wind Turbine |
| Application: | Electricity Generation | Warranty: | 3 Years |
| Portection Grade: | IP 54 | ||
| High Light: | 30KW Pitch Control Wind Turbine Generator,500kw Pitch Control Wind Turbine Generator,30KW Wind Energy System |
||

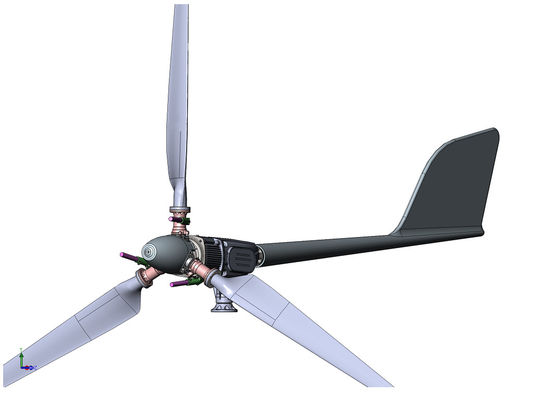

Horizontal Axis Wind Turbine Catalogue
Model: 30KW Horizontal axis wind turbine |Off-grid system |on-grid system| Folding tower
Overview
GREEF GH-30KW wind generator is the conversion of wind energy into mechanical energy first and electric energy afterwards. This equipment can fully make use of wind power to recharge a battery, and also can saved energy into ac source alternating current. Without the necessity of fuel, the GH-30KW wind generator is pollution free and far away from noise. The GH-30KW wind generator is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The GH-30KW generator can supply lighting, the television set, the searchlight, the communication equipment, the power tool and other household appliances.
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
| Model | GH-30KW |
| Rated Power | 30KW |
| Max Power | 35KW |
| Start Wind Speed | 2.5m/s(6.72mph) |
| Rated Wind Speed | 11m/s(22.4mph) |
| Working Wind Speed | 3-30m/s(8.96-56 mph) |
| Safety Wind Speed | 60m/s(112mph) |
| Blades Rotor Diameter | 13.1M(17.7ft) |
| Blades Material &Quantity | FRP /3PCS |
| Top Weight | 2800kg |
| Tower Height | ≥20m(26.24ft.) Free folding tower |
| Generator Type | Free stand tower |
| Rated voltage | 450RPM |
| Rated rotating speed | 95RPM |
| Speed regulation method | Auto yawing+pitch-controlled |
| Wind answering method | Up wind+yawing |
| Working Temperature | -20℃~+50℃ |
Annual Energy Production
This data will have ±10% difference according to real condition.
Automatic Speed Reduction Protection
Pictures
Why Choose GREEF ?
1. Q: How your permanent magnet generator work?
A: Our generator need to be drive by other energy, like wind power, water power, belt, etc, then it can generating power.
2. Q: Can your magnetic generator produce al power by itself?
A: No, please refer A1.
3. Q: What is the power of your generator?
A: We can manufacture from 100w to 5000kw.
4. Q: What is the rotate speed of your generator?
A: From 20rpm to 3000rpm.
5. Q: Can you manufacture customized product?
A: Yes, we can.
Please tell your detailed request (power, rpm, voltage, size, color) to our sales, we will made the generator according to your request.
6. Q: Can your company provide OEM service?
A: Yes, we can.
