Name: 20kW 30kW Off Grid Wind Turbine Generator Wind Power Generator
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AH-5KW-30KW
Price: 12999.00 USD
Availability: InStock

Home > products > Pitch Control Wind Turbine >

20kW 30kW Off Grid Wind Turbine Generator Wind Power Generator

30kW Off Grid Wind Turbine Generator

20kW Off Grid Wind Turbine Generator

20kW Wind Power Generator

Place of Origin:

QINGDAO

Brand Name:

GREEF

Certification:

CEC

Model Number:

AH-5KW-30KW

Request A Quote

20kW 30kW Off Grid Wind Turbine Generator Wind Power Generator

Product Details

Type:

Wind Power Generator

Rated Power:

300w-30kw

Rated Voltage:

12V / 24V / 48V

Generator Type:

3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine

Application:

Electricity Generation

Warranty:

2 Years

Portection Grade:

IP 54

Color:

Multicolor

Tolerance:

+/-0.1mm Or According To Customer Request

Life Time:

20 Years

Size:

Customized Magnet Size

Rated Rotor Speed:

20-900RRM

Generator:

3-Phase Permanent Magnet Generator AC Alternator

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Inner Foam + Plywooden case

Delivery Time

25DAY

Payment Terms

L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability

25 Units

Product Description

20kW 30kWOff Grid Wind Turbine Generator Wind Power Generator

Why choose AH-20KW wind turbine?

Leading technology-intelligent control, strong system scalability1. The world's best wind power control technology is combined with the self-developed variable pitch technology.

2. The hardware design uses international well-known brands, and the software uses redundant control strategies.

3. It can achieve good compatibility with various well-known brand converters and remote modules.

High security-continuous operation around the clock to achieve unattended operation

1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.

2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.

A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%

1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.

2. The working wind speed range is large (3-25m/s), and the effective running time is long.

Recommended for:

· Household,Garden,Farm,Urban ,Rooftop

· Telecom sites.

· Rural electrification programs. Island , sentry, island, sight lighting

· Automatic speed reduction protection

Technical specification

Model	AH-20KW
Wind rotor diameter (m)	9.8
Blade material and quantity	Fiber glass reinforced * 3
Rated power (w)	20,000
Rated wind speed (m/s)	11
Rated rotate speed (rpm)	175
Working wind speed (m/s)	3-25
Start up wind speed (m/s)	2.5
Survived wind speed (m/s)	59.5
Working voltage (v)	DC450V
Speed regulation method	Pitch control + Active yawing +electromagnet brake
Stop method	Pitch controlled brake +Active yawing
Generator style	Three phase, permanent magnet
Wind turbine weight (kg)	1210

Products Description

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more

(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s; (2) Below the rated wind speed, the wind turbine outputs efficiently;

(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.

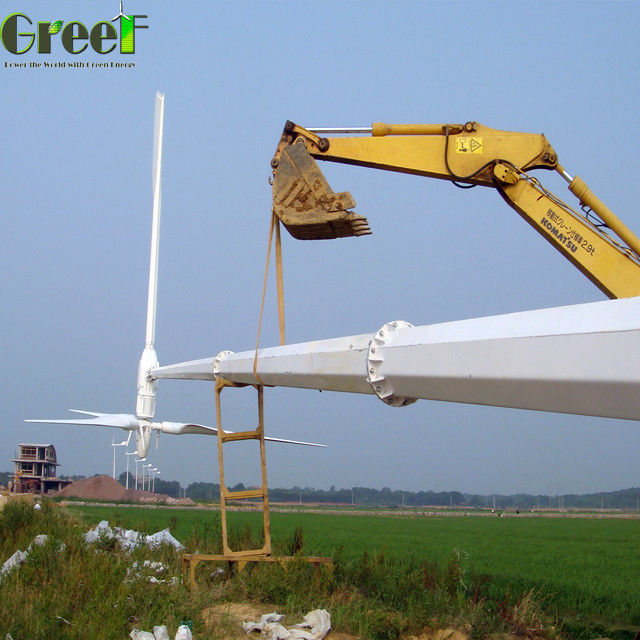

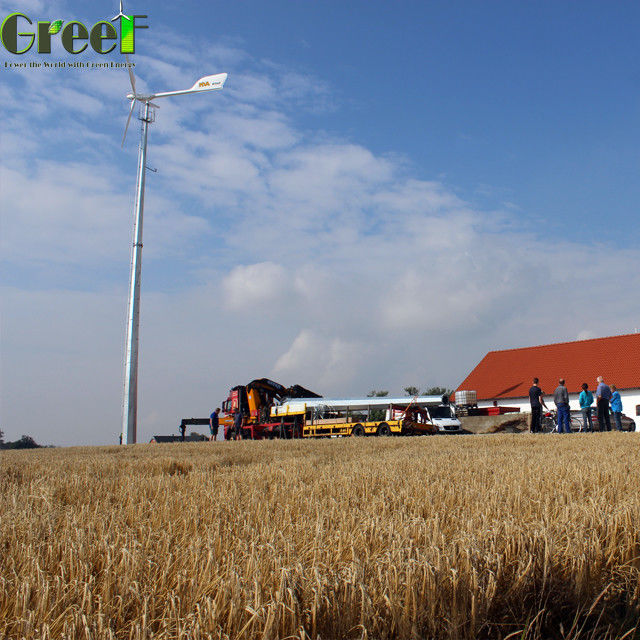

Project case

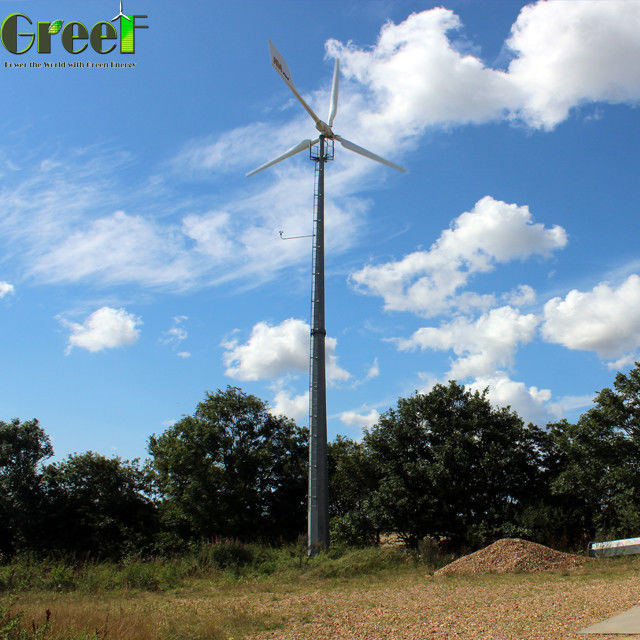

20kW In France

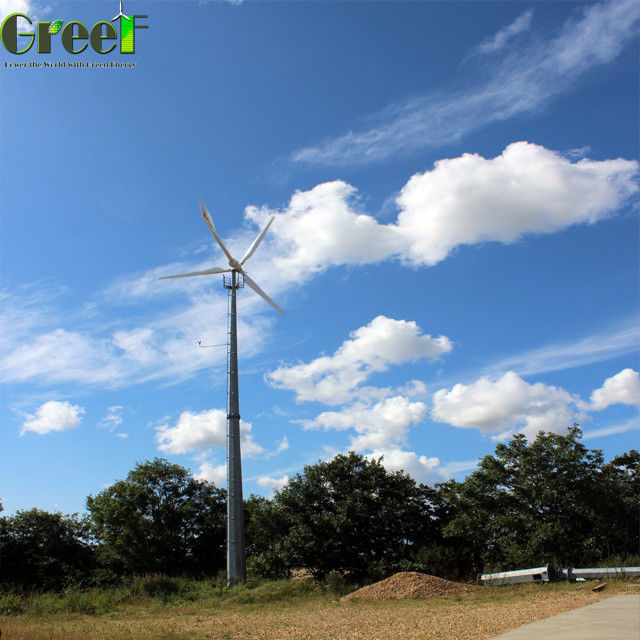

20kW In Kashgar

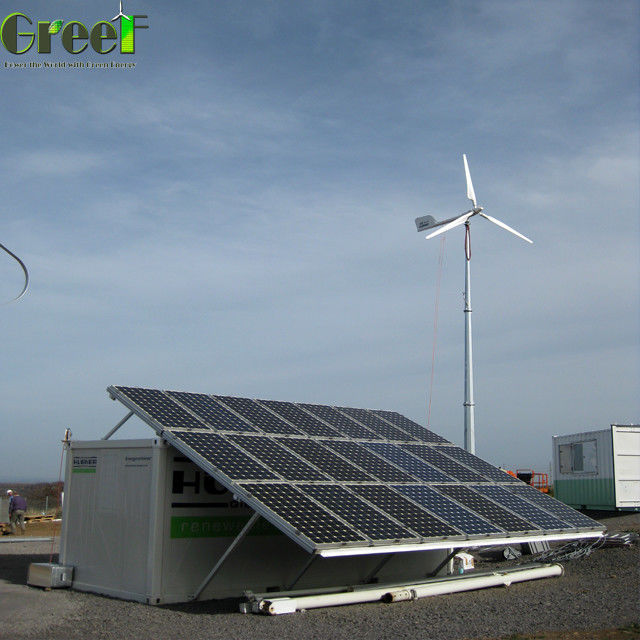

Systems

Why Choose Us

We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.

"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!

Believe in us, we can accompany you forever.
