Low RPM 500W Vertical Axis Wind Turbine For Residential

Low RPM 500W Vertical Axis Wind Turbine For Residential

Low RPM 500W Vertical Axis Wind Turbine

Residential 500W Vertical Axis Wind Turbine

500W residential vertical axis wind turbine

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Rated Power:
Max Power:
Start Wind Speed:
1m/s (2.24mph)
Rated Wind Speed:
Working Wind Speed:
1-25m/s (2.24-56 Mph)
Generator Type:
Axial Flux Coreless Disc Permanent Magnet Direct Drive Generator
Rated Rotor Speed:
Blades Material:
3 Years
Payment & Shipping Terms
Minimum Order Quantity
1 Set

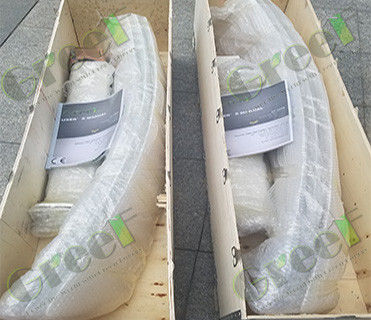

Packaging Details
Foam + Plywooden Case
Delivery Time
25-30 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Product Description

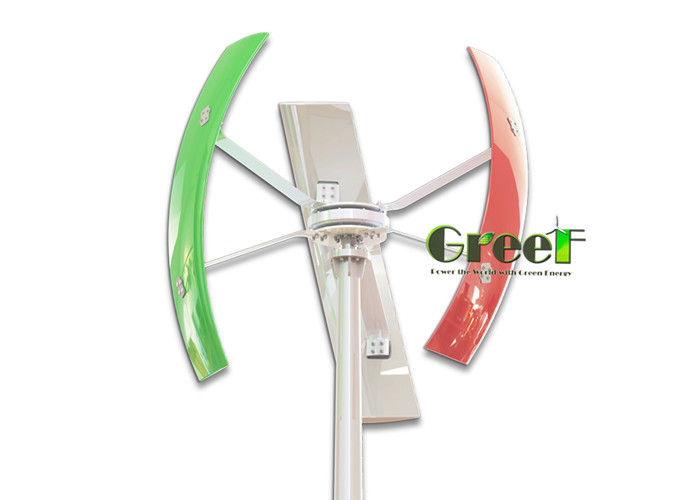

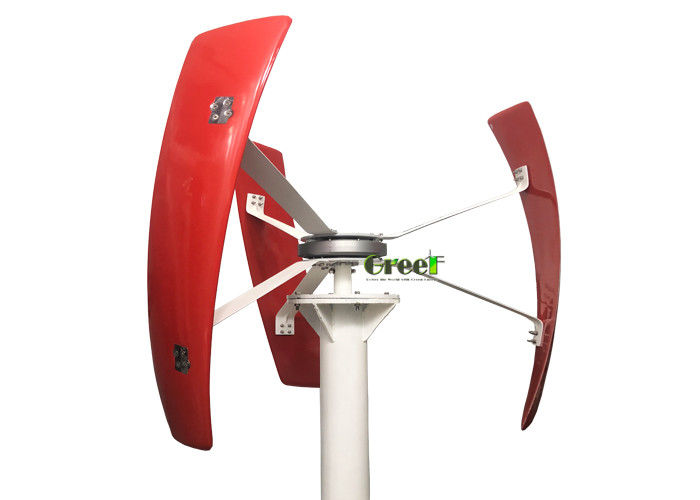

500W Vertical Axis Wind Turbine
Product Description


500W vertical axis wind mill are a type of wind turbine where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. they are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.


GreeF 500W vertical axis wind mill are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.


Project Show


13 sets of Vertical Axis Wind Turbine  and other project:






Model GV-500W
Rated Power 500W
Max Power 650W
Start Wind Speed 1m/s (2.24mph)
Rated Wind Speed 10m/s(22.4mph)
Working Wind Speed 1-25m/s (2.24-56 mph)
Safety Wind Speed 50m/s(112mph)
Physical Parameters
Blades Length 1.5M(4.92ft)
Blades Rotor Diameter 1.5M(4.92ft)
Blades Material &Quantity FRP /3PCS
Mill Weight 64kg
Tower Height 6m(19.68ft.) (Optional)
Generator Parameters
Generator Type

Axial Flux coreless disc permanent magnet direct drive generator

(outer rotor)

Rated Speed 200RPM
Start Torque <0.1N.M
Option Voltage 12-24V
Protection Method Electromagnetic Brake + PWM
Protection Grade IP54
Working Temperature -40-50℃
Life time 20 Years

We can provide different system for customers according their request.

For example, Off-Grid System:




Our Services

Generators are free 3 years warranty, All lifelong  technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
