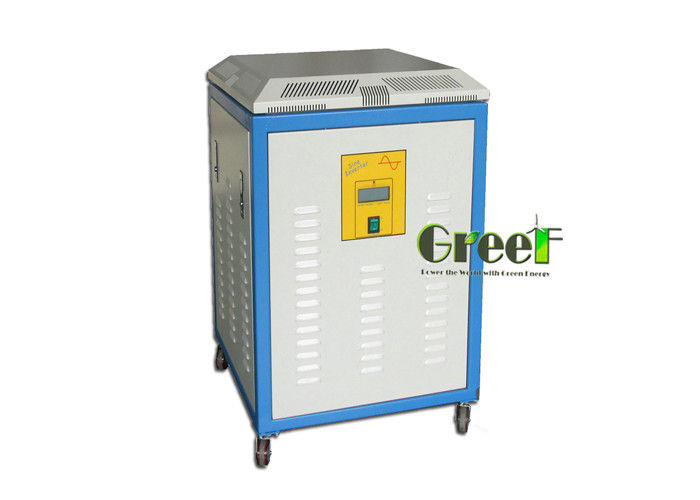

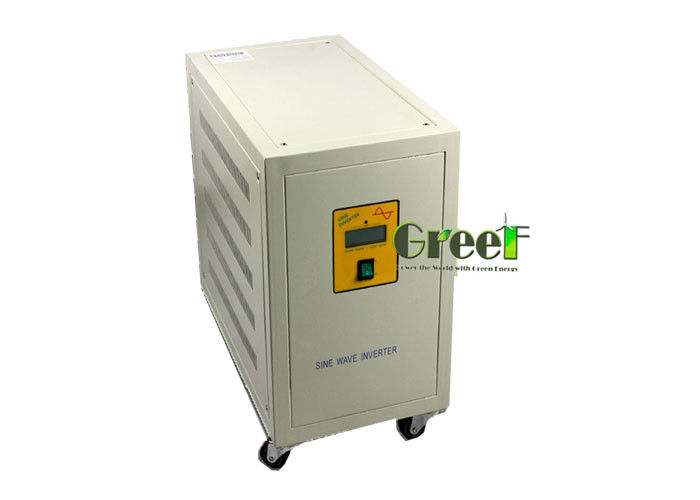

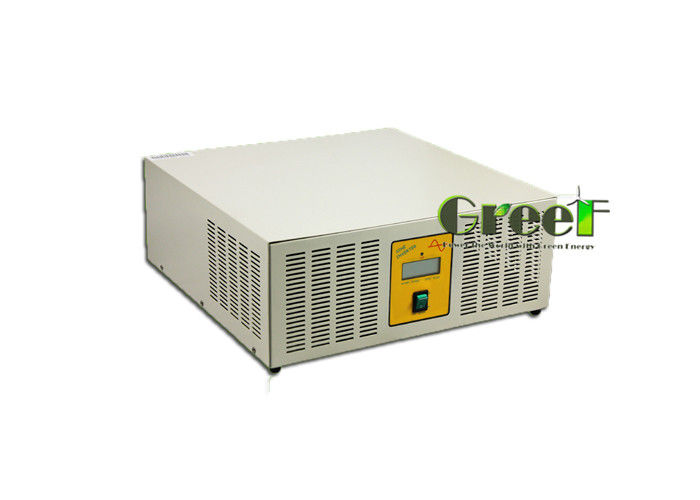

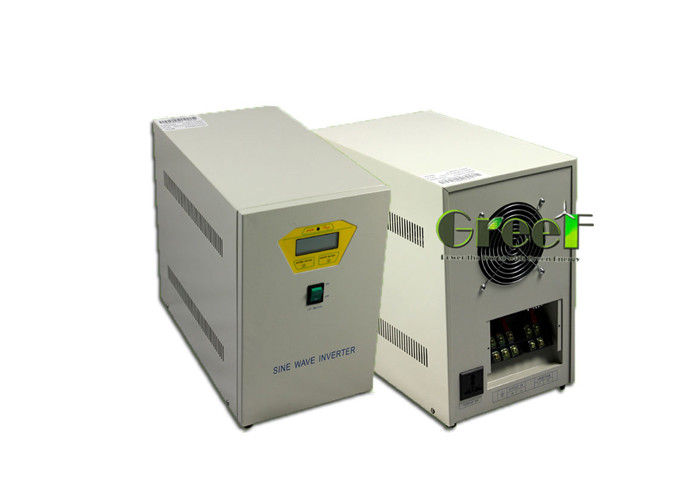

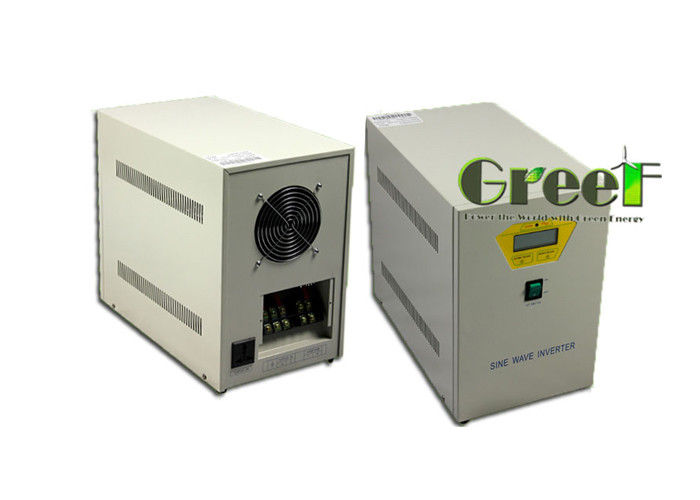

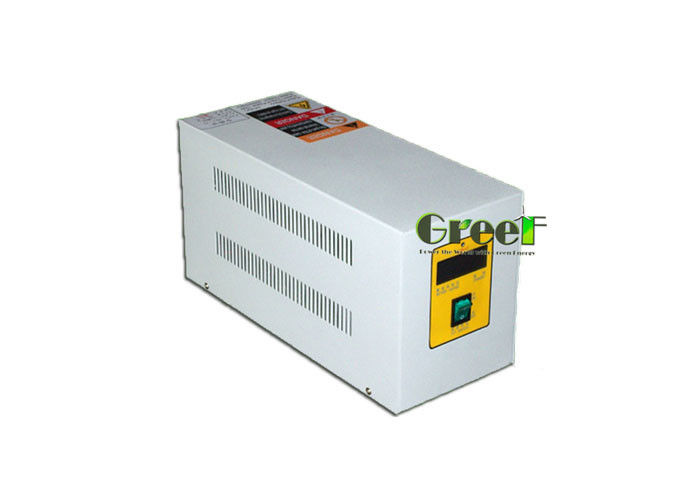

3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors

3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors

800kw Off Grid Invertor Inverter

3kw Off Grid Invertor Inverter

Three Phase 3kw off grid inverter

Place of Origin:

China

Brand Name:

GreeF

Certification:

CE

Model Number:

BNXG

Contact Us
Request A Quote
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors
Product Details
Type:
DC/AC Inverters
Capacity:
3kW-2500kW
Input Voltage:
120V/220V/240V/380V
Output Voltage:
220V/380V/400V
Output Frequency:
50/60Hz
Output Waveform:
Pure Sine Wave Output
Efficiency:
95%
Certificate:
CE
Display:
LCD
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
1 Set
Packaging Details
Foam + Plywooden Case
Delivery Time
25-30 Working days
Payment Terms
T/T, Western Union, L/C
Supply Ability
100 Sets
RELATED PRODUCTS
Good price Innovative Grid Connected Inverter With Humidity 0-90%RH At 95% Efficiency online

Innovative Grid Connected Inverter With Humidity 0-90%RH At 95% Efficiency

Get Best Price
Good price 3KW 5KW 15KW 30KW 50KW Grid Tied Solar Inverter For House online

3KW 5KW 15KW 30KW 50KW Grid Tied Solar Inverter For House

Get Best Price
Good price 3KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home online

3KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home

Get Best Price
Good price 3KW 5KW On Grid Wind Turbine Inverter For Grid Tie Wind Turbine For Home online

3KW 5KW On Grid Wind Turbine Inverter For Grid Tie Wind Turbine For Home

Get Best Price
Contact Us
Contact Now
Product Description

3kw-800kw Off-grid invertor inverter for single /three phase motors



00:05

00:46

OFF-GRID INVERTER
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 0

Product Overview

Wind off-grid power system consists of the wind turbine, controller, battery, wind off grid inverter and distribution system. Wind generate AC power through the wind turbine generator driven by the wind, and then converted to be DC power. The wind turbine off grid inverter will inverte the DC power to be the right voltage , frequency and pure sine wave AC power to the local load.When the wind speed is very hight to cause high dc voltage, the controller will start beyond full energy by unloading, removing.
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 1
Product Description
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 2
Technical Specification
Model
GI-3K
GI-5K
GI-10K
GI-15K
GI-20K
GI-30K
GI-40K
GI-50K
GI-60K
Power
3kW
5kW
10kW
15kW
20kW
30kW
40kW
50kW
60kW
Input Voltage Range
DC 176-380V
DC 304-480V
Input Rated Voltage
DC 220V
DC 380V
Rated Input Current
13A
22A
45A
68A
90A
135A
180A
131A
157A
Operating Phase
Single phase two wire system
Rated Output Voltage
AC 220V
Rated Output Frequency
50Hz
Output Current Rating
13A
22A
45A
68A
90A
135A
180A
225A
270A
Overload Capacity
120% 1min,150% 10s
Output Voltage Stability
≤±1%
Output Frequency Stability
≤0.01%
Output Voltage Distortion
THDu≤2%
Inversion Efficiency
≥90%
Defensive Function
Input undervoltage, overvoltage, overheat protection; Output overload and short circuit protection
Display Function
Main control touch screen: 7 inches, resolution 800*480 (HD)
Communicating Function
RS485(standard)/RS232(optional)/ Ethernet Port (optional)
Work Environment
Ambient temperature -5 ~45, relative humidity 0~95% under the condition of full load 24 hours non-stop work
Level Of Protection
IP21
Type Of Cooling
Fan forced air cooling
Altitude
≤5000m
Compression Strength
AC1500V 1min,leak current<10mA
Insulation Resistance
≥100MΩ
Noise
≤55dB(A)
Size
(Width * Depth * Height)
482*420*223
350*560*600
400*660*700
500*830*1000
520*1160*1250
650*1420*1365
Weight(kg)
30
55
85
170
190
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 3
Technical Specification
Model
GIT-10K
GIT-20K
GIT-30K
GIT-40K
GIT-50K
GIT-60K
GIT-90K
Power
10kW
20kW
30kW
40kW
50kW
60kW
90kW
Input VoltageRange
DC 176-380V
DC 304-480V
Input Rated Voltage
DC 220V
DC 380V
Rated Input Current
45A
90A
135A
180A
131A
157A
236A
Operating Phase
Three phase four wire system
Rated Output Voltage
AC 380V
Rated Output Frequency
50Hz
Output Current Rating
15A
30A
45A
60A
75A
90A
135A
Overload Capacity
120% 1min,150% 10s
Output Voltage Stability
≤±1%
Output Frequency Stability
≤0.01%
Output Voltage Distortion
THDu≤2%
Inversion Efficiency
≥90%
Defensive Function
Input undervoltage, overvoltage, overheat protection; Output overload and short circuit protection
Display Function
Main control touch screen: 7 inches, resolution 800*480 (HD)
Communicating Function
RS485(standard)/RS232(optional)/ Ethernet Port (optional)
Work Environment
Ambient temperature -5 ~45, relative humidity 0~95% under the condition of full load 24 hours non-stop work
Level Of Protection
IP21
Type Of Cooling
Fan forced air cooling
Altitude
≤5000m
Compression Strength
AC1500V 1min,leak current<10mA
Insulation Resistance
≥100MΩ
Noise
≤55dB(A)
Equipment
(Width * Depth * Height)
500*830*1000
520*1160*1250
650*1420*1365
Weight(kg)
150
185
340
410
410
510
510
Model
GIT-100K
GIT-120K
GIT-150K
GIT-200K
GIT-300K
GIT-400K
GIT-600K
GIT-800K
Power
100kW
120kW
150kW
200kW
300kW
400kW
600kW
800kW
Input Voltage Range
DC 384-780V
Input Rated Voltage
DC 480V
Rated Input Current
208A
250A
312A
416A
625A
833A
1250A
1666A
Operating Phase
Three phase four wire system
Rated Output Voltage
AC 380V
Rated Output frequency
50Hz
Output Current Rating
150A
180A
225A
300A
450A
600A
900A
1200A
Overload Capacity
120% 1min,150% 10s
Output Voltage Stability
≤±1%
Output Frequency Stability
≤0.01%
Output Voltage Distortion
THDu≤2%
Inversion Efficiency
≥90%
Defensive Function
Input undervoltage, overvoltage, overheat protection; Output overload and short circuit protection
Display Function
Main control touch screen: 7 inches, resolution 800*480 (HD)
Communicating Function
RS485(standard)/RS232(optional)/ Ethernet Port (optional)
Work Environment
Ambient temperature -5 ~45, relative humidity 0~95% under the condition of full load 24 hours non-stop work
Level Of Protection
IP21
Type Of Cooling
Fan forced air cooling
Altitude
≤5000m
Compression Strength
AC1500V 1min,leak current<10mA
Insulation Resistance
≥100MΩ
Noise
≤55dB(A)
Size
(Width * Depth * Height)
650*1420*1365
1550*850*1880
1910*1160*1940
3100*900*2080
Weight(kg)
700
1080
2250
3600
System Solution
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 4
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 5
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 6
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 7
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 8
Why Choose Us
Our vertical wind generator and battery are free 3 years warranty, controller and invertor are 1 years warranty.All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 9
3kw - 800kw Off Grid Invertor Inverter For Single / Three Phase Motors 10
