Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT

Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT
Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT

Large Image :  Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT

Product Details:
Place of Origin: CHINA
Brand Name: GreeF
Certification: CE
Model Number: GV-3KW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $299-32999
Packaging Details: Foam + Plywooden Case
Delivery Time: 25-35 Working Days
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
Rated Power: 3KW Start Wind Speed: 2.8m/s (6.27mph)
Rated Wind Speed: 12m/s(26.88mph) Generator Type: Disc Coreless Permanent Magnent Generator
Generator Material: Aluminium Body+copper Wire+Nd-Fe-B Rated Rotor Speed: 160RPM
Rated Option Voltage: 48-380V Blades Material: FRP
Blades Quantity: 3PCS Warranty: 3 Years
High Light:

3kw Vertical Axis Wind Turbine

,

Low Speed Vertical Axis Wind Turbine

,

VAWT 3KW Vertical Wind Turbine



●Simple structure ,1hour installation
Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT 0



Technical specification
Model
GV-2KW
GV-3KW
Rated Power
2kW
3kW
Max Power
2.5kW
4kW
Start Wind Speed
2.8m/s (6.27mph)
Rated Wind Speed
11m/s(24.64mph)
12m/s(26.88mph)
Working Wind Speed
3-25m/s (6.72-56 mph)
Safety Wind Speed
50m/s(112mph)
Blades Length
3.65M(11.97ft)
Blades Rotor Diameter
2.3M(7.54ft)
Blades Material &Quantity
FRP /3PCS
Mill Weight
285kg
300kg
Swept Area
8.395㎡
8.1㎡
Tower Height
6m(19.68ft.)
8m(26.24ft.)
Generator Type
Axial Flux Coreless outer rotor disc permanent magnet direct drive generator
Rated Speed
160RPM
Start Torque
<0.3N.M
<1N.M
Option Voltage
24-380V
48-380V
Protection Method
Electromagnetic Brake +PWM
Protection Grade
IP54
Working Temperature
-40-50℃
Life time
20 Years

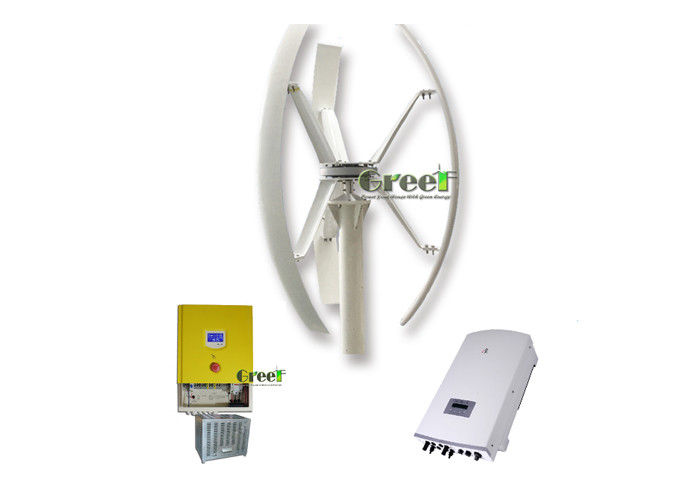

System Solution
Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT 1
Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT 2
Buyer Feedback
The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT 3
Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT 4
Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT 5
Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT 6
Why Choose Us
Our vertical wind generator and battery are free 3 years warranty, controller and invertor are 1 years warranty.
All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
Low Speed 3kw Vertical Axis Wind Turbine Windmill Generator VAWT 7
