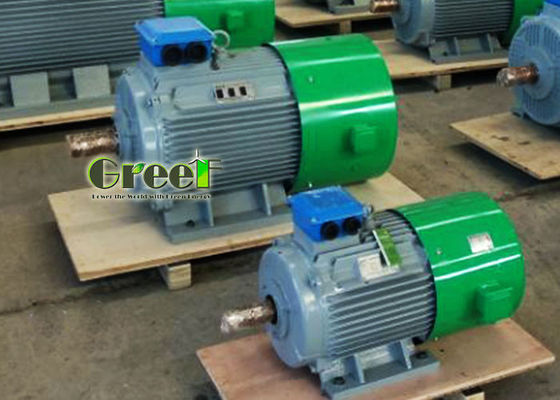

10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing

10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing
10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing 10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing 10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing 10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing 10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing 10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing

Large Image :  10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing

Product Details:
Place of Origin: CHINA
Brand Name: GREEF
Certification: CE
Model Number: GDF
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Foam+plywooden case
Delivery Time: 25 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 400 sets per month
Detailed Product Description
Rated Power: 0.5kw-5000kw Shaft Material: Steel
Rated Voltage: Custmoized Rated Rotate: 20-900rpm
Classification Of Degrees: IP54 Baering Brand: SKF
High Light:

20rpm High Efficiency Permanent Magnet Generator

,

10kw High Efficiency Permanent Magnet Generator

,

20rpm 10kw Permanent Magnet Generator

10kw 20rpm high efficiency SKF Bearing Permanent Magnet Generator



10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing 0











   Product Description



Permanent Magnet Generator is an electrical machine making the conversion from mechanical energy to electricalenergy.

They generate elecric  power at every rotational speed,with the electric power,voltage and frequency depending depending on rpm.

Direct drive gearless technology delivers real energy solutions driectly to your distributed utility, or specific application through our advanced technology wind turbine, hydro turbine and others.



Rated power 0.5kW-5000kW
Rated rotate speed 20rpm-3000rpm
Rated voltage 48VAC - 1140VAC
Wending Method Y
Generator type Permanent Magnet AC
Number of phase Three phase
Classification of degrees IP54
Generator shell material Steel


10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing 1


            Advantages

Permanent Magnet Generators

GREEF Company provide customized generator according to each customer 's requirements of Voltage, Speed, Power, Frequency etc.



Rated power
0.5--5000
kw
Rated rotate speed
20--900
rpm
Rated voltage
12--1140
Vac
Frequency
60/50
Hz
Number of Poles
24
Generator type
3phase AC Synchronous generator
Magnet type
NdFeB
Winding Method
Y
Magnet temperature level
Max.120℃
Winding temperature level
Max.180℃
Effienciency
>95%
Insulate Grade
H
Insulating resistance
100Mohm Min(500Vdc)
Classification of degrees
IP54
Generatror shell material
Cast Iron
Winding material
100% Copper
Shaft material
Steel
Iron Core
Cold rolled silicon steel sheet
Bearing brand
SKF
Cooling Method
Fan Cooling
Weight (N.W /G.W )
132kg /152kg
Packing Size
870*470*570mm
Installation
Horizontal



          Product Display



          System Solution



GREEF Technical Team can provide the complete ON-grid and Off-grid solution for the project which used our permanent magnet generator .

All the equipments can be produced according to customer's specific requirements



10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing 5

OFF-GRID System (2).jpg



   Permanent Magnet Generator Packaging & Shipping

1. The permanent magnet generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.

2.Pakage size and weight please refer to our sales.

3.Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request



10kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing 710kw 20rpm High Efficiency Permanent Magnet Generator SKF Bearing 81.JPG






        Our Services



OEM service

Our magnetic generator is free 3 years warranty, All lifelong technical support and part cost supply.



(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.



      Company Information



Company Information



Qingdao Greef New Energy Equipment Co., Ltd are global supplier which focus on



Permanent Magnet generator, wind and solar hybrid generator systems solution,wind turbine



blades, controller, invertor etc.



GREEF have its own engineer design team which design products ourselves.



HOT! Low speed Axial Flux Coreless Permanent Magnetic generator, 5kw permanent magnet generator!




               FAQ

1. Q: How your permanent magnet generator work?

A: Our generator need to be drive by other energy, like wind power, water power, belt, etc, then it can generating electric power.



2. Q: Can your magnetic generator produce electrical power by itself?

A: No, please refer A1.


3. Q: What is the power of your generator?
A: We can manufacture from 100w to 5000kw.


4. Q: What is the rotate speed of your generator?
A: From 20rpm to 3000rpm.


5. Q: Can you manufacture customized product?
A: Yes, we can.

Please tell your detailed request (power, rpm, voltage, size, color) to our sales, we will made the generator according to your request.


6. Q: Can your company provide OEM service?





        Why Choose Us



(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
