Product Details:
Payment & Shipping Terms:
|
| Warranty: | 3 Years | Frequency: | 50hz/60hz |
|---|---|---|---|
| Bearing: | SKF Bearing | Life Time: | More Than 20 Years |
| Generator: | 3 Phase Permanent Magnet Synchronous Generator | ||
| High Light: | Alternative Energy Permanent Magnet Generator,150rpm Permanent Magnet Generator,150rpm permanent magnet alternator |
||
| 1 | Rare earth Nd-Fe-B permanent magnets |
| 2 | Low Speed |
| 3 | Direct Drive ,no use gear-box |
| 4 | bearing |
| 5 | Power factor close to 1 |
| 6 | Maintenance free , can be used in all environments . |
| 7 | Long life time >20years, could run at high speed 24 hours 365 days . |
| 8 | Multi poles design, improve the frequency and efficiency of rectifiers and inverters. |
| 9 | Customized : Voltage, Speed, Power, Frequency etc. |
| 10 | H class insulation, vacuum pressure impregnation. |
| 11 | Excellent heat dissipation , also can add fan cooling |
GREEF Company provide customized generator according to each customer 's requirements of Voltage, Speed, Power, Frequency etc.
| RATED POWER | RATED SPEED | RATED VOLTAGE | FREQUENCY |
| 0.5KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
| 1KW | 20rpm~600rpm | 12V~220Vac | 10Hz~60Hz |
| 2KW | 20rpm~1000rpm | 12V~400Vac | 10Hz~60Hz |
| 3KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
| 5KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
| 10KW | 20rpm~1500rpm | 120V~690Vac | 10Hz~60Hz |
| 15KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
| 20KW | 20rpm~3000rpm | 120V~690Vac | 10Hz~60Hz |
| 25KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
| 30KW | 20rpm~3000rpm | 120V~1140Vac | 10Hz~60Hz |
| 50KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
| 80KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
| 100KW | 20rpm~3000rpm | 220V~1140Vac | 10Hz~60Hz |
| 150KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 200KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 250KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 300KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 500KW | 20rpm~3000rpm | 380V~1140Vac | 10Hz~60Hz |
| 700KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 800KW | 20rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 1MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 2MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 3MW | 200rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 4MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
| 5MW | 600rpm~3000rpm | 690V~1140Vac | 10Hz~60Hz |
PMG Parameters
| Rated power | 5kW-5000kW |
| Rated rotate speed | 20-3000rpm |
| Rated voltage | 48VAC -1140VAC |
| Wending Method | Y |
| Generator type | Permanent Magnet AC |
| Number of phase | Three phase |
| Classification of degrees | IP54 |
| Generator shell material | Steel |

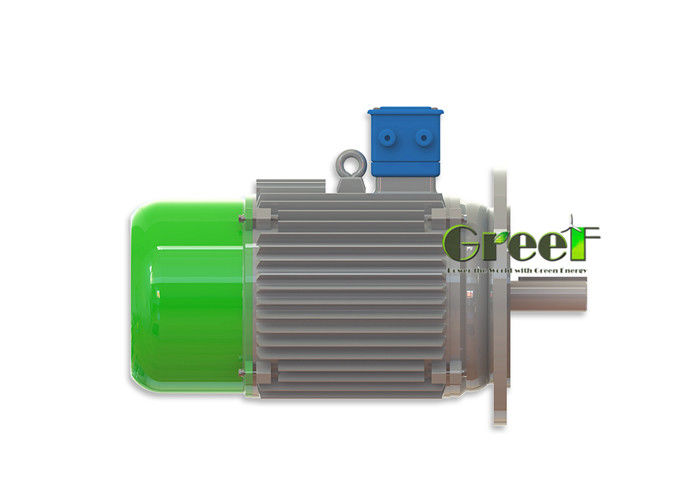

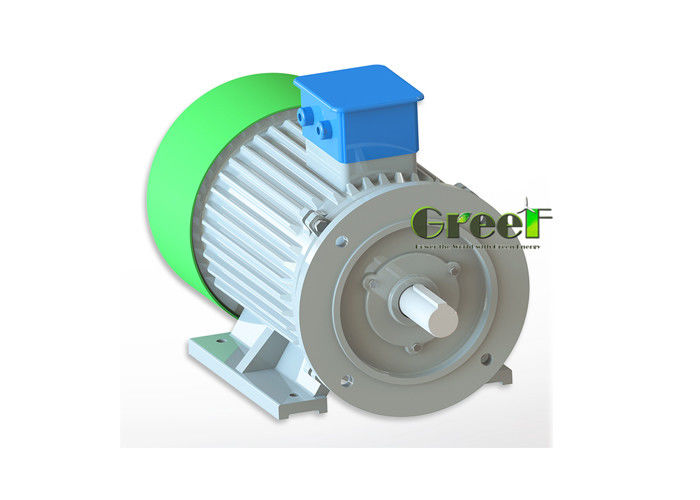

One model drawing for your reference:
GREEF Technical Team can provide the complete ON-grid and Off-grid solution for the project which used our permanent magnet generator .
All the equipments can be produced according to customer's specific requirements
1. Greef generator use inner foam protection, outer Plywooden case.
2. Package size and weight, please contact our sales.
3. Shipping by sea with FCL / LCL to your nearest port
Or Shipping by air to your nearest airport
Or Shipping by DHL/FedEx/UPS/TNT to your door
If you have any requests in package and shipping , please contact us directly.
All GREEF Generators are 3 years warranty for free, All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
Qingdao Greef New Energy Equipment Co., Ltd are global supplier which
Permanent Magnet generator, wind and solar hybrid generator systems solution,wind turbine
blades, controller, invertor etc.
GREEF have its own engineer design team which design products ourselves.
