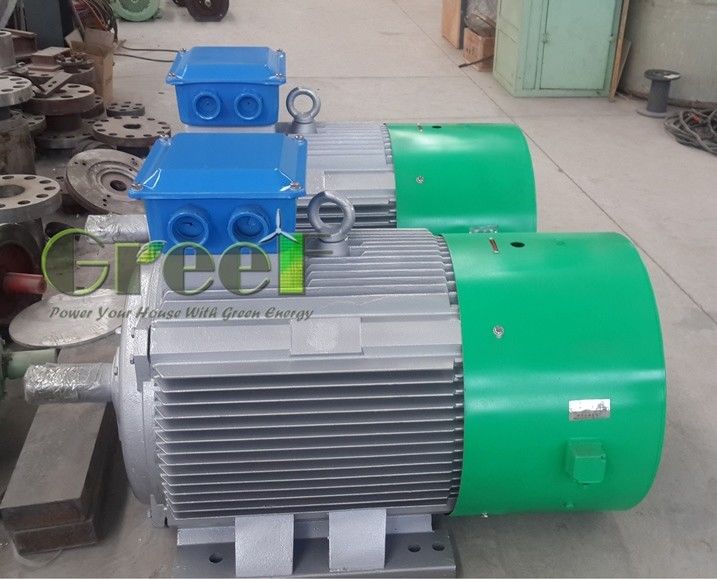

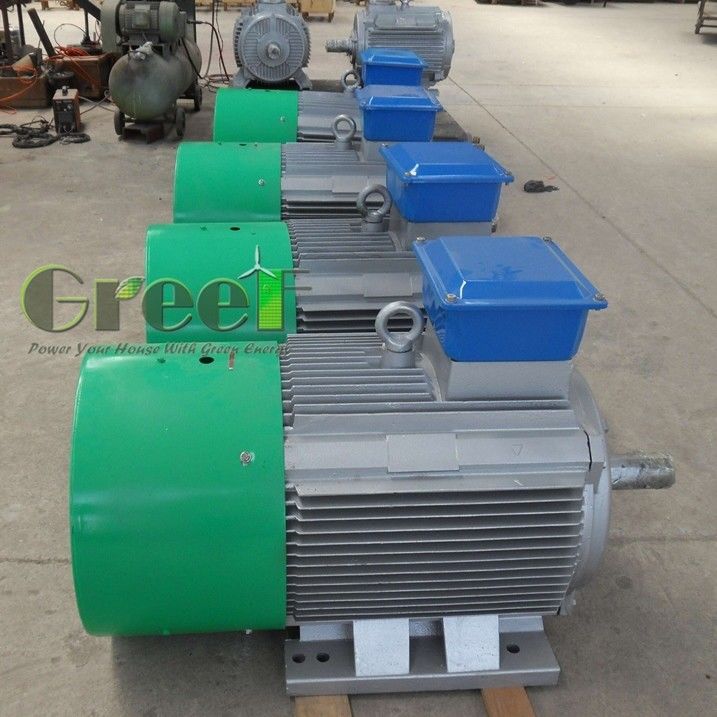

Low Start 12kw Permanent Magnet Generator Free Energy Torque SKF Bearing

Name: Low Start 12kw Permanent Magnet Generator Free Energy Torque SKF Bearing
Brand: GREEF
SKU: GDF
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (115 reviews)

Large Image : Low Start 12kw Permanent Magnet Generator Free Energy Torque SKF Bearing

Product Details:

Place of Origin:	CHINA
Brand Name:	GREEF
Certification:	CE
Model Number:	GDF

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	Negotiable
Packaging Details:	Foam+plywooden case
Delivery Time:	25 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	400 sets per month

Contact Now

Detailed Product Description

Rated Voltage:	12V / 24V / 48V	Rated Power:	300w-30kw
Type:	Wind Power Generator,50kw To 500KW Permanent Magnet Alternator	Application:	Electricity Generation
Generator Type:	3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine
High Light:	12kw Permanent Magnet Generator , Low Start Permanent Magnet Generator , Low Start pmg generator

Low Start 12kw Free Energy Torque SKF Bearing Permanent Magnet Generator

Product Description

Permanent Magnet Generators offer high efficiency energy conversion, particularly at partial load, and require no separate field excitation system. Our permanent magnet generators are lighter, more efficient, and require less assembly labor than competing designs.
Permanent Magnet Generators are used in a large number of applications such as Wind Turbines, Hydro Turbines, motors and others.

Product Parameters

PMG Parameters

Rated power	0.5kW-5000kW
Rated rotate speed	20rpm-3000rpm
Rated voltage	48VAC - 1140VAC
Wending Method	Y
Generator type	Permanent Magnet AC
Number of phase	Three phase
Classification of degrees	IP54
Generator shell material	Steel

RATED POWER	RATED SPEED	RATED VOLTAGE	FREQUENCY
0.5KW	20rpm~400rpm	12V~220Vac	10Hz~60Hz
1KW	20rpm~600rpm	12V~220Vac	10Hz~60Hz
2KW	20rpm~1000rpm	12V~400Vac	10Hz~60Hz
3KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
5KW	20rpm~1500rpm	48V~690Vac	10Hz~60Hz
10KW	20rpm~1500rpm	120V~690Vac	10Hz~60Hz
15KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
20KW	20rpm~3000rpm	120V~690Vac	10Hz~60Hz
25KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz

30KW	20rpm~3000rpm	120V~1140Vac	10Hz~60Hz
50KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
80KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
100KW	20rpm~3000rpm	220V~1140Vac	10Hz~60Hz
150KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
200KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
250KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
300KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
500KW	20rpm~3000rpm	380V~1140Vac	10Hz~60Hz
700KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz

800KW	20rpm~3000rpm	690V~1140Vac	10Hz~60Hz
1MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
2MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
3MW	200rpm~3000rpm	690V~1140Vac	10Hz~60Hz
4MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz
5MW	600rpm~3000rpm	690V~1140Vac	10Hz~60Hz

Advantages

Alternative Energy Generators
GREEF Company provide customized generator according to each customer 's requirements of Voltage, Speed, Power, Frequency etc.

Product Advantage

1	Rare earth Nd-Fe-B permanent magnets
2	Low Speed
3	Direct Drive ,no use gear-box
4	SKF bearing
5	Power factor close to 1
6	Maintenance free , can be used in all environments .
7	Long life time >20years, could run at high speed 24 hours 365 days .
8	Multi poles design, improve the frequency and efficiency of rectifiers and inverters.
9	Customized : Voltage, Speed, Power, Frequency etc.
10	H class insulation, vacuum pressure impregnation.
11	Excellent heat dissipation , also can add fan cooling

System Solution

GREEF Technical Team can provide the complete ON-grid and Off-grid solution for the project which used our permanent magnet generator .

All the equipments can be produced according to customer's specific requirements

Low Speed Permanent Magnet Nd-Fe-B generator made in China

Packing & Delivery

1. Greef generator use inner foam protection, outer Plywooden case.

2. Package size and weight, please contact our sales.

3. Shipping by sea with FCL / LCL to your nearest port

Or Shipping by air to your nearest airport

Or Shipping by DHL/FedEx/UPS/TNT to your door

If you have any requests in package and shipping , please contact us directly.

Buyer Reviews

Permanent Magnet Generators are 3 years warranty for free, all lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period: company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.

Why Choose Us

We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
