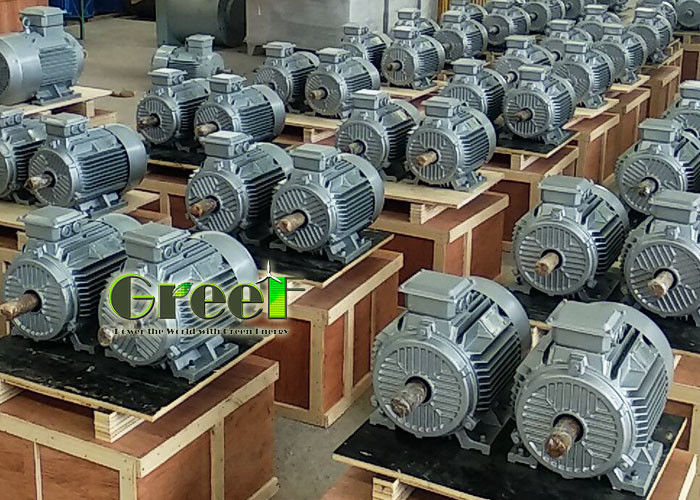

1kw 5kw 10kw 20kw 50kw 400v Low Rpm Pmg Generator Free Energy

1kw 5kw 10kw 20kw 50kw 400v Low Rpm Pmg Generator Free Energy

50kw 400v Low Rpm Pmg Generator

1kw 400v Low Rpm Pmg Generator

5kw 400v Low Rpm Pmg Generator

Place of Origin:

CHINA

Brand Name:

GREEF

Certification:

CE

Model Number:

GDF

Contact Us
Request A Quote
Product Details
Protection Grade:
IP54
Magnet Type:
NdFeB
Generator Material:
Aluminium Body+Cooper Wire
Bearing:
SKF Bearing
Rated Power:
Rated Power
Rated Rotate Speed:
20rpm-3000rpm
Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Foam+plywooden case
Delivery Time
25 working days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
400 sets per month
Product Description

1kw 5kw 10kw 20kw 50kw 400v Low Rpm permanent magnetic generator free energy

Product Parameters

PMG Parameters



Rated power 0.5kW-5000kW
Rated rotate speed 20rpm-3000rpm
Rated voltage 48VAC - 1140VAC
Wending Method Y
Generator type Permanent Magnet AC
Number of phase Three phase
Classification of degrees IP54
Generator shell material

Steel





RATED POWER RATED SPEED RATED VOLTAGE FREQUENCY
0.5KW 20rpm~400rpm 12V~220Vac 10Hz~60Hz
1KW 20rpm~600rpm 12V~220Vac 10Hz~60Hz
2KW 20rpm~1000rpm 12V~400Vac 10Hz~60Hz
3KW 20rpm~1500rpm 48V~690Vac 10Hz~60Hz
5KW 20rpm~1500rpm 48V~690Vac 10Hz~60Hz
10KW 20rpm~1500rpm 120V~690Vac 10Hz~60Hz
15KW 20rpm~3000rpm 120V~690Vac 10Hz~60Hz
20KW 20rpm~3000rpm 120V~690Vac 10Hz~60Hz
25KW 20rpm~3000rpm 120V~1140Vac 10Hz~60Hz
30KW 20rpm~3000rpm 120V~1140Vac 10Hz~60Hz
50KW 20rpm~3000rpm 220V~1140Vac 10Hz~60Hz
80KW 20rpm~3000rpm 220V~1140Vac 10Hz~60Hz
100KW 20rpm~3000rpm 220V~1140Vac 10Hz~60Hz
150KW 20rpm~3000rpm 380V~1140Vac 10Hz~60Hz
200KW 20rpm~3000rpm 380V~1140Vac 10Hz~60Hz
250KW 20rpm~3000rpm 380V~1140Vac 10Hz~60Hz
300KW 20rpm~3000rpm 380V~1140Vac 10Hz~60Hz
500KW 20rpm~3000rpm 380V~1140Vac 10Hz~60Hz
700KW 20rpm~3000rpm 690V~1140Vac 10Hz~60Hz
800KW 20rpm~3000rpm 690V~1140Vac 10Hz~60Hz
1MW 200rpm~3000rpm 690V~1140Vac 10Hz~60Hz
2MW 200rpm~3000rpm 690V~1140Vac 10Hz~60Hz
3MW 200rpm~3000rpm 690V~1140Vac 10Hz~60Hz
4MW 600rpm~3000rpm 690V~1140Vac 10Hz~60Hz
5MW 600rpm~3000rpm 690V~1140Vac 10Hz~60Hz



Product Advantage





1 Rare earth Nd-Fe-B permanent magnets
2 Low Speed
3 Direct Drive ,no use gear-box
4 SKF bearing
5 Power factor close to 1
6 Maintenance free , can be used in all environments .
7 Long life time >20years, could run at high speed 24 hours 365 days .
8 Multi poles design, improve the frequency and efficiency of rectifiers and inverters.
9 Customized : Voltage, Speed, Power, Frequency etc.
10 H class insulation, vacuum pressure impregnation.
11 Excellent heat dissipation , also can add fan cooling








GreeF company supply variety of permanent magnet generators which is suitable for driven by following equipments to

1 Driven by Wind Power --------Wind turbine
2 Driven by Water Power ------- Hydro generator
3 Driven by Belt with Motors
4 Driven by Motor
5 Dirven by perpetual motion machine
6 Dirven by test plant
7 Dirven by yourselves creation
8 Driven the permanent magnet generator and make it rotate then it can generate power




System Solution

GREEF Technical Team can provide the complete ON-grid and Off-grid solution for the project which used our permanent magnet generator .

All the equipments can be produced according to customer's specific requirements

ON-GRID System.jpgOFF-GRID System (2).jpg

Packaging & Shipping





1. Greef generator use inner foam protection, outer Plywooden case.

2. Package size and weight, please contact our sales.

3. Shipping by sea with FCL / LCL to your nearest port

Or Shipping by air to your nearest airport

Or Shipping by DHL/FedEx/UPS/TNT to your door

If you have any requests in package and shipping , please contact us directly.

Company Information



Qingdao Greef New Energy Equipment Co., Ltd are global supplier which focus on



Permanent Magnet generator, wind and solar hybrid generator systems solution,wind turbine



blades, controller, invertor etc.



GREEF have its own engineer design team which design products ourselves.





.jpg



Our Services





All GREEF Generators are 3 years warranty for free, All lifelong technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
