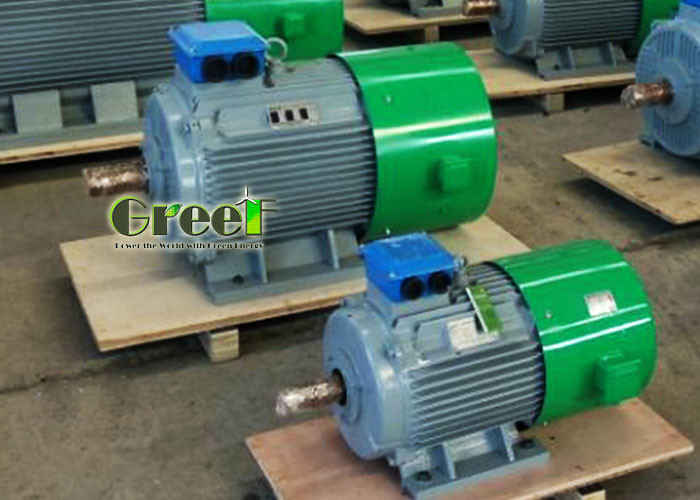

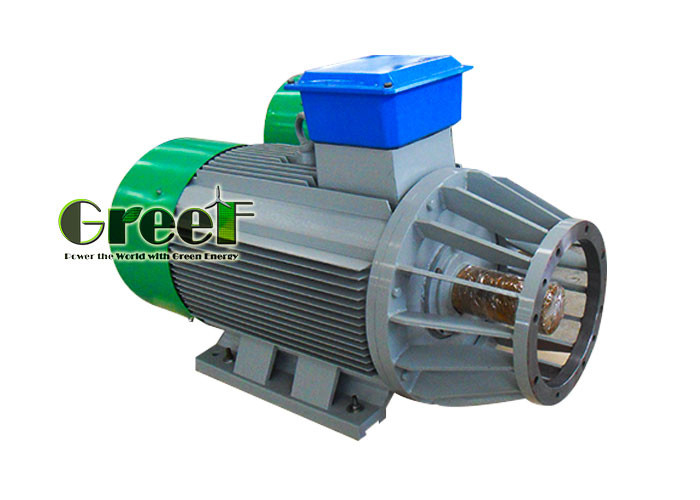

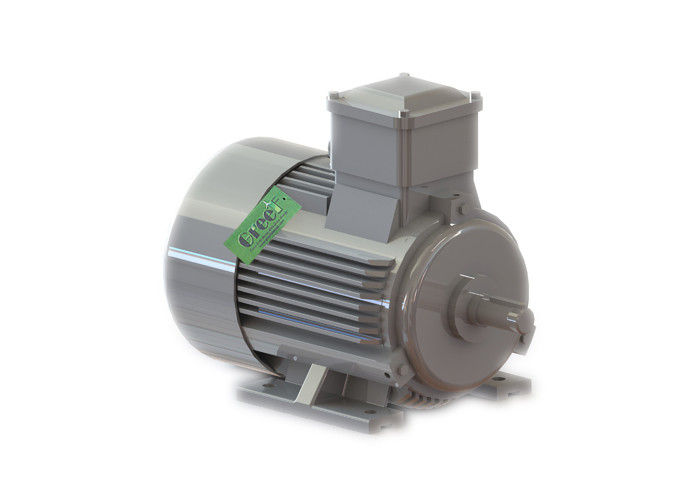

5kw 6kw 10kw 220v 400v 50Prm Low Speed Permanent Magnet Alternator High Efficiency

5kw 6kw 10kw 220v 400v 50Prm Low Speed Permanent Magnet Alternator High Efficiency
5kw 6kw 10kw 220v 400v 50Prm Low Speed Permanent Magnet Alternator High Efficiency 5kw 6kw 10kw 220v 400v 50Prm Low Speed Permanent Magnet Alternator High Efficiency 5kw 6kw 10kw 220v 400v 50Prm Low Speed Permanent Magnet Alternator High Efficiency 5kw 6kw 10kw 220v 400v 50Prm Low Speed Permanent Magnet Alternator High Efficiency

Large Image :  5kw 6kw 10kw 220v 400v 50Prm Low Speed Permanent Magnet Alternator High Efficiency

Product Details:
Place of Origin: CHINA
Brand Name: GREEF
Certification: CE
Model Number: GDF
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Foam+plywooden case
Delivery Time: 25 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 400 sets per month
Detailed Product Description
Bearing: SKF Bearing Generator Material: Aluminium Body+Cooper Wire
Protection Grade: IP54 Rated Voltage: Customized
Magnet Type: NdFeB Rated Rotate Speed: 20rpm-3000rpm
High Light:

50rpm Low Speed Permanent Magnet Alternator

,

5kw Low Speed Permanent Magnet Alternator

,

10kw Low Speed Permanent Magnet Alternator

5kw 6kw 10kw 220v 400v 50Prm Low Speed High Efficiency Greef Energy Permanent Magnet Generator

Product Parameters



PMG Parameters




Rated power 0.5kW-5000kW
Rated rotate speed 20rpm-3000rpm
Rated voltage 48VAC - 1140VAC
Wending Method Y
Generator type Permanent Magnet AC
Number of phase Three phase
Classification of degrees IP54
Generator shell material Steel



1
Rare earth Nd-Fe-B permanent magnets
2
Low Speed
3
Direct Drive ,no use gear-box
4
SKF bearing
5
Power factor close to 1
6
Maintenance free , can be used in all environments .
7
Long life time >20years, could run at high speed 24 hours 365 days .
8
Customized : Voltage, Speed, Power, Frequency etc.
9
Multi poles design, improve the frequency and efficiency of rectifiers and inverters.
10
H class insulation, vacuum pressure impregnation.
11
Excellent heat dissipation , also can add fan cooling
Rated power
0.5--5000
kW
Rated rotate speed
20--3000
rpm
Rated voltage
48--1140
Vac
Frequency
60/50
Hz
Number of Poles
24
Generator type
3phase AC Synchronous generator
Magnet type
NdFeB
Winding Method
Y
Magnet temperature level
Max.120℃
Winding temperature level
Max.180℃
Effienciency
>95%
Insulate Grade
H
Insulating resistance
100Mohm Min(500Vdc)
Classification of degrees
IP54
Generatror shell material
Cast Iron
Winding material
100% Copper
Shaft material
Steel
Iron Core
Cold rolled silicon steel sheet
Bearing brand
SKF
Cooling Method
Fan Cooling
Weight (N.W /G.W )
132kg /152kg
Packing Size
870*470*570mm
Installation
Horizontal



Product Advantage





1 Rare earth Nd-Fe-B permanent magnets
2 Low Speed
3 Direct Drive ,no use gear-box
4 SKF bearing
5 Power factor close to 1
6 Maintenance free , can be used in all environments .
7 Long life time >20years, could run at high speed 24 hours 365 days .
8 Multi poles design, improve the frequency and efficiency of rectifiers and inverters.
9 Customized : Voltage, Speed, Power, Frequency etc.
10 H class insulation, vacuum pressure impregnation.
11 Excellent heat dissipation , also can add fan cooling




System Solution

GREEF Technical Team can provide the complete ON-grid and Off-grid solution for the project which used our permanent magnet generator .

All the equipments can be produced according to customer's specific requirements

OFF-GRID System (2).jpgON-GRID System.jpg



Packaging & Shipping





1. Greef generator use inner foam protection, outer Plywooden case.

2. Package size and weight, please contact our sales.

3. Shipping by sea with FCL / LCL to your nearest port

Or Shipping by air to your nearest airport

Or Shipping by DHL/FedEx/UPS/TNT to your door




Company Information



Qingdao Greef New Energy Equipment Co., Ltd are global supplier which focus on



Permanent Magnet generator, wind and solar hybrid generator systems solution,wind turbine



blades, controller, invertor etc.



GREEF have its own engineer design team which design products ourselves.





Our Services



All GREEF Generators are 3 years warranty for free, All lifelong technical support and part cost supply.

(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.





FAQ

1. Q: How your permanent magnet generator work?

A: Our generator need to be drive by other energy, like wind power, water power, belt, etc, then it can generating electric power.



2. Q: Can your magnetic generator produce electrical power by itself?

A: No, please refer A1.


3. Q: What is the power of your generator?
A: We can manufacture from 100w to 5000kw.


4. Q: What is the rotate speed of your generator?
A: From 20rpm to 3000rpm.


5. Q: Can you manufacture customized product?
A: Yes, we can.

Please tell your detailed request (power, rpm, voltage, size, color) to our sales, we will made the generator according to your request.


6. Q: Can your company provide OEM service?
A: Yes, we can.
