Product Details:
Payment & Shipping Terms:
|
| Application: | Electricity Generation | Warranty: | 1 Year Or More |
|---|---|---|---|
| Color: | Customized Color | Life Time: | 20-50years |
| Grade: | R9.5X21 | Generator Type: | 3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine |
| Tolerance: | +/-0.1mm Or According To Customer Request | ||
| High Light: | 240kw Permanent Magnet Generator,450rpm Permanent Magnet Generator,800rpm Permanent Magnet Generator |
||

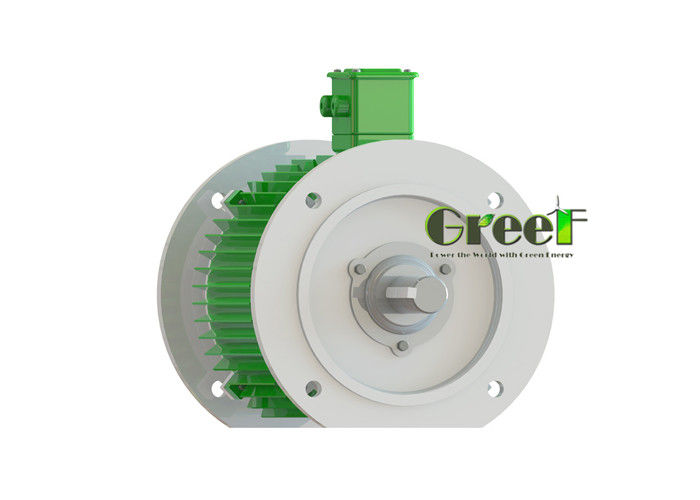

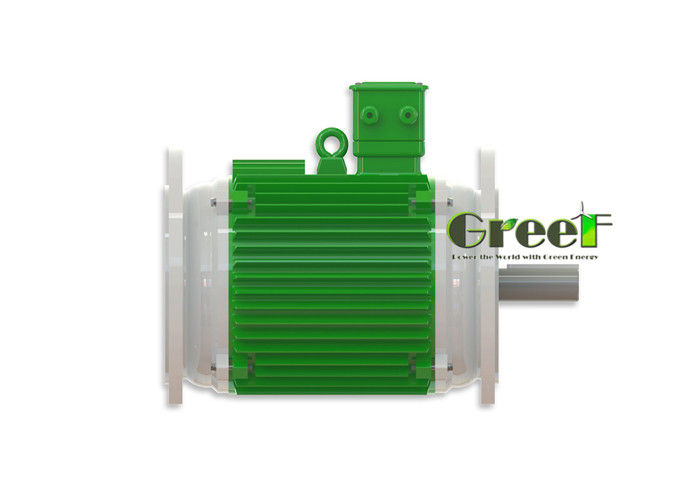

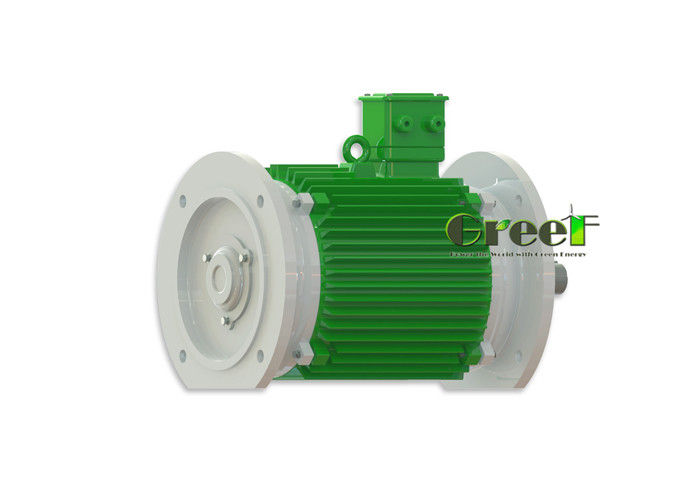

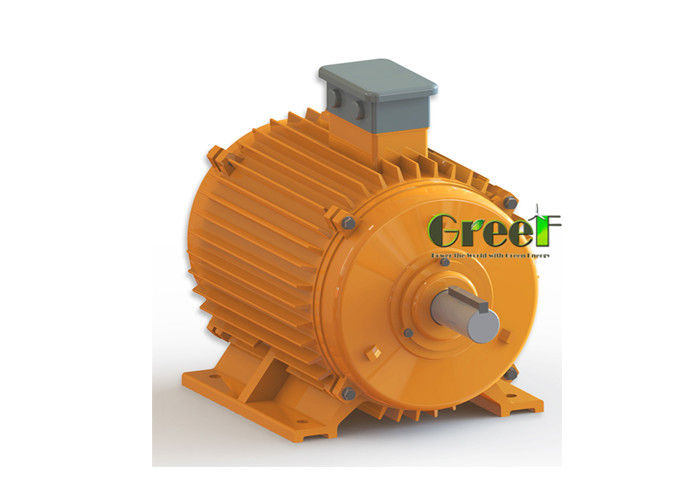

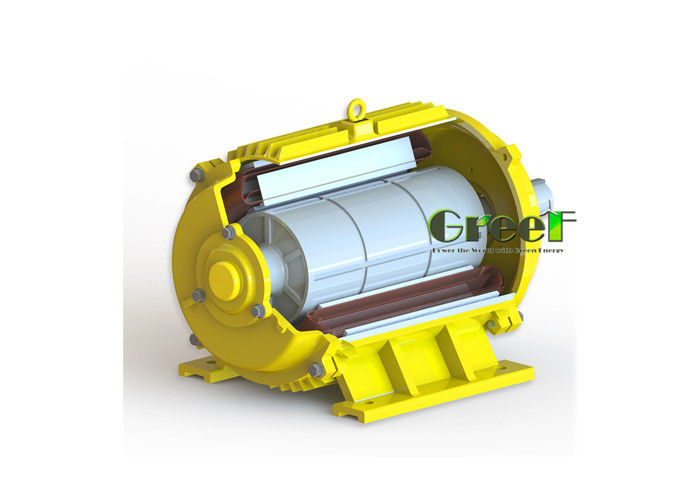

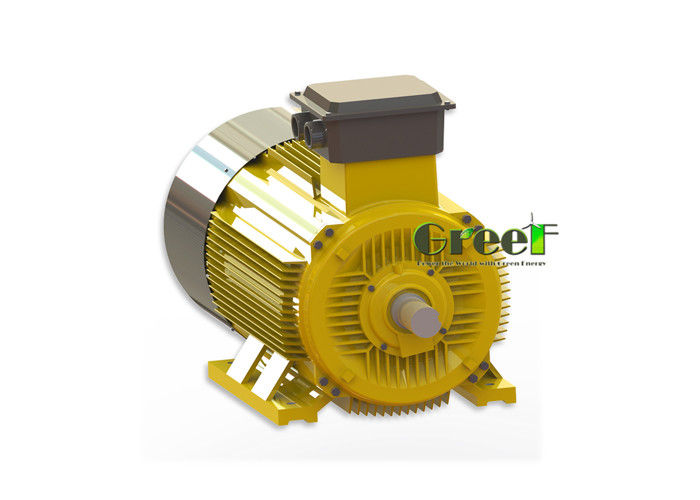

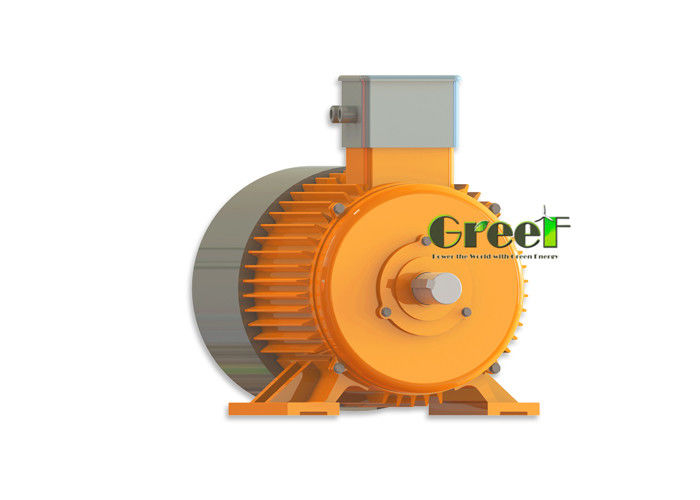

5kw 240kw 450rpm 800rpm Low Speed Freie Energie Permanent Magnet Generator
PMG Parameters
| Rated power | 5KW 10KW |
| Rated rotate speed | 20RPM - 3000RPM |
| Rated voltage | 120VAC - 690VAC |
| Wending Method | Y |
| Generator type | Permanent Magnet AC |
| Number of phase | Three phase |
| Classification of degrees | IP54 |
| Generator shell material | Steel |
|
1
|
Rare earth Nd-Fe-B permanent magnets |
| 2 | Low Speed |
| 3 |
Direct Drive ,no use gear-box
|
| 4 | SKF bearing |
| 5 | Power factor close to 1 |
| 6 |
Maintenance free , can be used in all environments .
|
| 7 | Long life time >20years, could run at high speed 24 hours 365 days . |
| 8 |
Customized : Voltage, Speed, Power, Frequency etc.
|
| 9 |
Multi poles design, improve the frequency and efficiency of rectifiers and inverters.
|
| 10 | H class insulation, vacuum pressure impregnation. |
| 11 | Excellent heat dissipation , also can add fan cooling |
| Rated power | 0.5--5000 | kW |
|
Rated rotate speed
|
20--3000 | rpm |
| Rated voltage | 48--1140 | Vac |
| Frequency | 60/50 | Hz |
| Number of Poles | 24 | |
| Generator type | 3phase AC Synchronous generator | |
| Magnet type | NdFeB | |
| Winding Method | Y | |
| Magnet temperature level | Max.120℃ | |
| Winding temperature level | Max.180℃ | |
| Effienciency | >95% | |
| Insulate Grade | H | |
| Insulating resistance | 100Mohm Min(500Vdc) | |
| Classification of degrees | IP54 | |
| Generatror shell material | Cast Iron | |
| Winding material | 100% Copper | |
| Shaft material | Steel | |
| Iron Core | Cold rolled silicon steel sheet | |
| Bearing brand | SKF | |
| Cooling Method |
Fan Cooling
|
|
| Weight (N.W /G.W ) | 132kg /152kg | |
| Packing Size | 870*470*570mm | |
| Installation | Horizontal | |
Permanent Magnet Generators are 3 years warranty for free, all lifelong technical support and part cost supply.
1. Greef generator use inner foam protection, outer Plywooden case.
2. Package size and weight, please contact our sales.
3. Shipping by sea with FCL / LCL to your nearest port
Or Shipping by air to your nearest airport
Or Shipping by DHL/FedEx/UPS/TNT to your door
If you have any requests in package and shipping , please contact us directly.
