Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home

Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home

Large Image :  Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home

Product Details:
Place of Origin: CHINA
Brand Name: GREEF
Certification: CE
Model Number: AH-5KW
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $299-12999
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAY
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 12
Detailed Product Description
Gale Protection: Smart Control+unattended Rated Power(kW): 5
Rated Voltage(VDC): 400/240/custom Made Rotor Diameter(m): 5.6
Blade Material & Qty.: FRP*3
High Light:

Auto Brake Pitch Regulated Wind Turbine

,

5kw Pitch Regulated Wind Turbine

,

220V Pitch Control Wind Turbine

5kw 220V Wind Turbine For Home High Quality Small Wind Turbine



Technical specification
Model
AH-5KW
Rotor diameter(m)
5.6
Blade material & Qty.
FRP*3
Rated power(kW)
5
Rated wind speed(m/s)
11
Rated rotating speed(r/min)
240
Generator type
3-phase PMG
Working wind speed(m/s)
3-30
Start-up wind speed(m/s)
2.5
Survival wind speed(m/s)
60
Rated voltage(VDC)
400/240/custom made
Speed regulation method
Pitch-controlled
Wind answering method
Up wind
Stop method
Auto brake
Gale protection
Smart control+unattended
weight(kg)
400
Noise level(dB)
≤65
Tower height(m)
≥8
Tower model
Tilt-up tower
Working temperature
-20℃~+50℃
Products Description
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 0

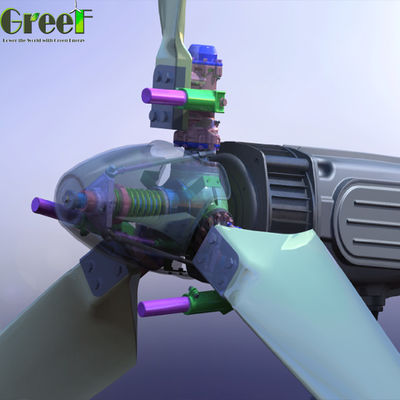

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
Project case

25kW Wind-solar-diesel Complementary Power Supply Project at Barracks of Garrison on Yongxing Island of Paracel Islands


Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 1
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 2

New Energy Power Supply System at Communication Base Stations in Danish


Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 3
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 4

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 5
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 6
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 7
Systems
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 8
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 9

Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 10
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 11
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 12
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 13
Auto Brake Pitch Regulated Wind Turbine Small 5kw 220V For Home 14
