Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household

Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household
Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household

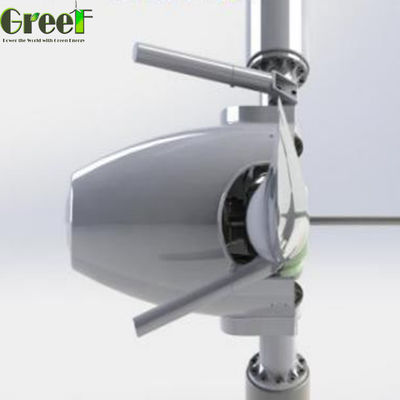

Large Image :  Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household

Product Details:
Place of Origin: CHINA
Brand Name: GREEF
Certification: CE
Model Number: AH-20KW
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $299-12999
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAY
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 25 Units
Detailed Product Description
Rated Power: 300w-30kw Rated Voltage: 12V / 24V / 48V
Type: Wind Power Generator Application: Electricity Generation
Portection Grade: IP 54 Warranty: 2 Years
Color: Multicolor Tolerance: +/-0.1mm Or According To Customer Request
Size: Customized Magnet Size Rated Rotor Speed: 20-900RRM
Generator: 3-Phase Permanent Magnet Generator AC Alternator
High Light:

20kw Pitch Wind Turbines

,

48V Household Pitch Wind Turbines

,

Permanent Magnet Pitch Control Wind Turbine

20kw Low Strat Wind Speed Variable Pitch Wind Turbines For Home Use Price List



Why choose AH-20KW wind turbine?
Leading technology-intelligent control, strong system scalability
1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household 0
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-20KW
Wind rotor diameter (m)
9.8
Blade material and quantity
Fiber glass reinforced * 3
Rated power (w)
20,000
Rated wind speed (m/s)
11
Rated rotate speed (rpm)
175
Working wind speed (m/s)
3-25
Start up wind speed (m/s)
2.5
Survived wind speed (m/s)
59.5
Working voltage (v)
DC450V
Speed regulation method
Pitch control + Active yawing +electromagnet brake
Stop method
Pitch controlled brake +Active yawing
Generator style
Three phase, permanent magnet
Wind turbine weight (kg)
1210
Products Description
Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household 1

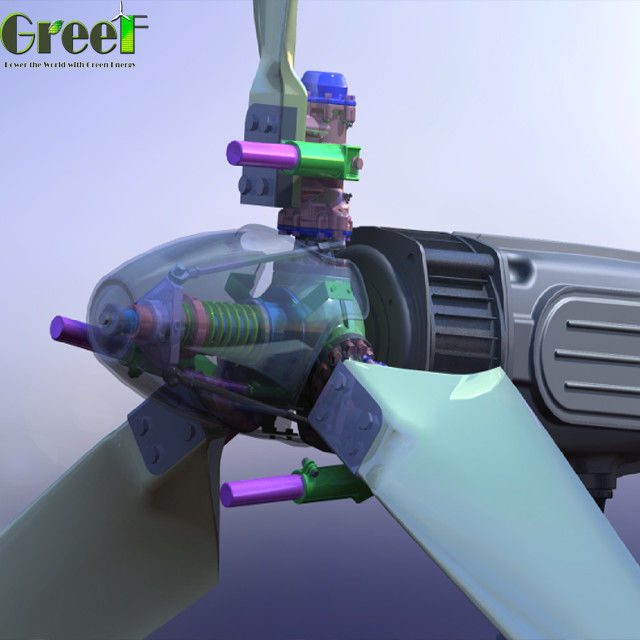

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
Project case

20kW In France


Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household 2
Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household 3

20kW In Kashgar


Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household 4
Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household 5



Systems
Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household 6
Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household 7
Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household 8
Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household 9
Low Start Wind Speed Pitch Wind Turbines Variable 20kw For Household 10
