20kw Rooftop Wind Turbine Generator System For Home Use

20kw Rooftop Wind Turbine Generator System For Home Use
20kw Rooftop Wind Turbine Generator System For Home Use 20kw Rooftop Wind Turbine Generator System For Home Use 20kw Rooftop Wind Turbine Generator System For Home Use 20kw Rooftop Wind Turbine Generator System For Home Use 20kw Rooftop Wind Turbine Generator System For Home Use 20kw Rooftop Wind Turbine Generator System For Home Use

Large Image :  20kw Rooftop Wind Turbine Generator System For Home Use

Product Details:
Place of Origin: CHINA
Brand Name: GREEF
Certification: CE
Model Number: AH-20KW
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: $299-12999
Packaging Details: Foam+plywooden case
Delivery Time: 25 DAY
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 25 Units
Detailed Product Description
Type: Wind Power Generator Application: Electricity Generation
Warranty: 2 Years Portection Grade: IP 54
Color: Multicolor Tolerance: +/-0.1mm Or According To Customer Request
Size: Customized Magnet Size Generator: 3-Phase Permanent Magnet Generator AC Alternator
High Light:

20kw Wind Turbine Generator System

,

IP54 Wind Turbine Generator System

,

Rooftop Pitch Control Wind Turbine

20kw Rooftop Kinds Of Wind Turbine Generator System For Home Use



Why choose AH-20KW wind turbine?
Leading technology-intelligent control, strong system scalability
1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
20kw Rooftop Wind Turbine Generator System For Home Use 0
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-20KW
Wind rotor diameter (m)
9.8
Blade material and quantity
Fiber glass reinforced * 3
Rated power (w)
20,000
Rated wind speed (m/s)
11
Rated rotate speed (rpm)
175
Working wind speed (m/s)
3-25
Start up wind speed (m/s)
2.5
Survived wind speed (m/s)
59.5
Working voltage (v)
DC450V
Speed regulation method
Pitch control + Active yawing +electromagnet brake
Stop method
Pitch controlled brake +Active yawing
Generator style
Three phase, permanent magnet
Wind turbine weight (kg)
1210
Products Description
20kw Rooftop Wind Turbine Generator System For Home Use 1

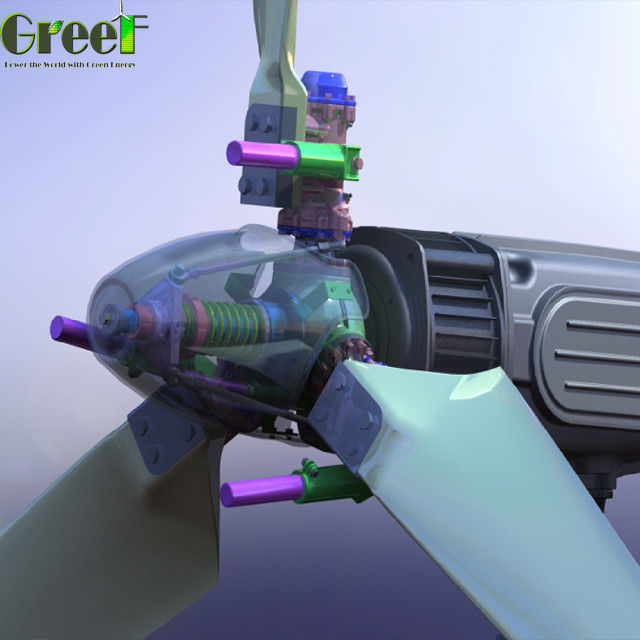

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
Project case

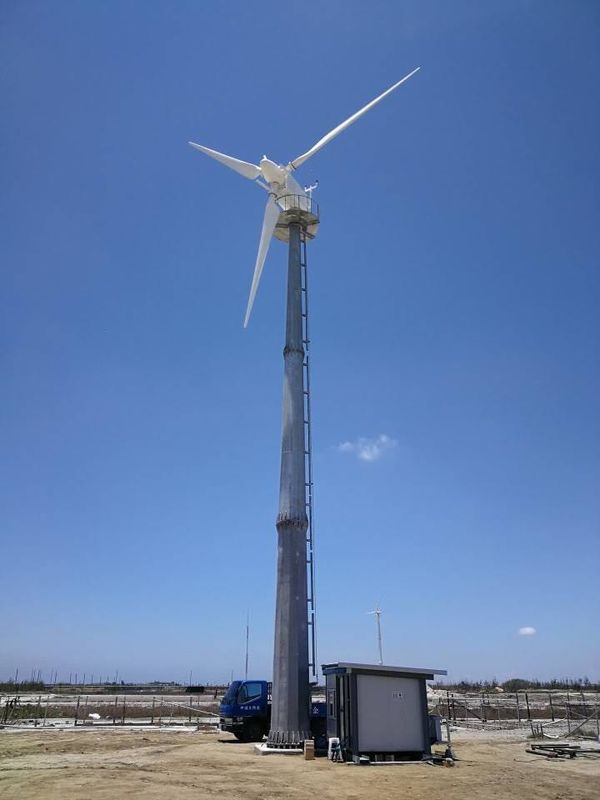

20kW In France


20kw Rooftop Wind Turbine Generator System For Home Use 2
20kw Rooftop Wind Turbine Generator System For Home Use 3

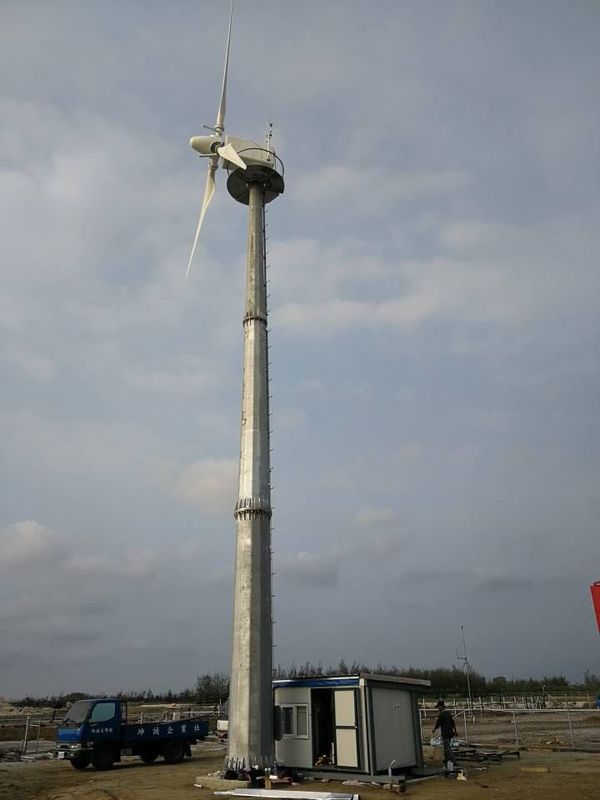

20kW In Kashgar


20kw Rooftop Wind Turbine Generator System For Home Use 4
20kw Rooftop Wind Turbine Generator System For Home Use 5



Systems
20kw Rooftop Wind Turbine Generator System For Home Use 6
20kw Rooftop Wind Turbine Generator System For Home Use 7
20kw Rooftop Wind Turbine Generator System For Home Use 8
20kw Rooftop Wind Turbine Generator System For Home Use 9
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
20kw Rooftop Wind Turbine Generator System For Home Use 10
20kw Rooftop Wind Turbine Generator System For Home Use 11
