30kw Pitch Control Tesup Wind Turbine For Rural Electrification Programs

Name: 30kw Pitch Control Tesup Wind Turbine For Rural Electrification Programs
Brand: GREEF
SKU: AH-30KW
Price: 299 USD
Availability: InStock
Rating: 4.8 (181 reviews)

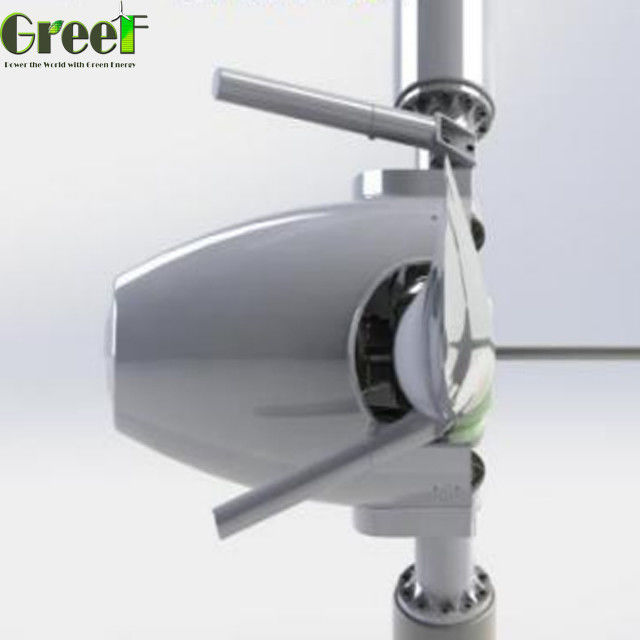

Large Image : 30kw Pitch Control Tesup Wind Turbine For Rural Electrification Programs

Product Details:

Place of Origin:	CHINA
Brand Name:	GREEF
Certification:	CE
Model Number:	AH-30KW

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	$299-12999
Packaging Details:	Foam+plywooden case
Delivery Time:	25 DAY
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	12

Contact Now

Detailed Product Description

Rated Power:	5kw-30kw	Type:	Wind Power Generator,50kw To 500KW Permanent Magnet Alternator
Generator Type:	3 Phase AC Permanent-magnet,1-3kw Vertical Axis Wind Turbine	Application:	Electricity Generation
Portection Grade:	IP 54	Warranty:	3 Years
High Light:	Pitch Control Tesup Wind Turbine , 30kw Tesup Wind Turbine

30kw Variable Wind Turbine Tes Up Wind Turbine For Sale

Why choose AH-30KW wind turbine?

Leading technology-intelligent control, strong system scalability 1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.

High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.

Recommended for:

· Household,Garden,Farm,Urban ,Rooftop

· Telecom sites.

· Rural electrification programs. Island , sentry, island, sight lighting

· Automatic speed reduction protection

Technical specification

Model	AH-30KW
Rotor diameter (m)	13.1
Blade material & Qty.	FRP *3
Rated power (kW)	30
Rated wind speed (m/s)	11
Rated rotating speed (r/min)	95
Generator type	3-phase PMG
Working wind speed (m/s)	3-30
Start-up wind speed(m/s)	2.5
Cut-in wind speed(m/s)	3
Survival wind speed (m/s)	60
Rated voltage (VDC)	450
Speed regulation method	Auto yawing+pitch-controlled
Wind answering method	Up wind+yawing
Stop method	Auto brake
Gale protection	Smart control+unattended
weight (kg)	2800
Noise level (dB)	≤65
Tower height (m)	≥20
Tower type	Free stand tower
Working temperature	-20℃～+50℃

Products Description

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.

(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s; (2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
