5kw Rooftop Low Speed Horizontal Pitch Control Wind Turbine For Home Use

Name: 5kw Rooftop Low Speed Horizontal Pitch Control Wind Turbine For Home Use
Brand: GREEF
SKU: AH-5KW
Price: 299 USD
Availability: InStock
Rating: 4.8 (194 reviews)

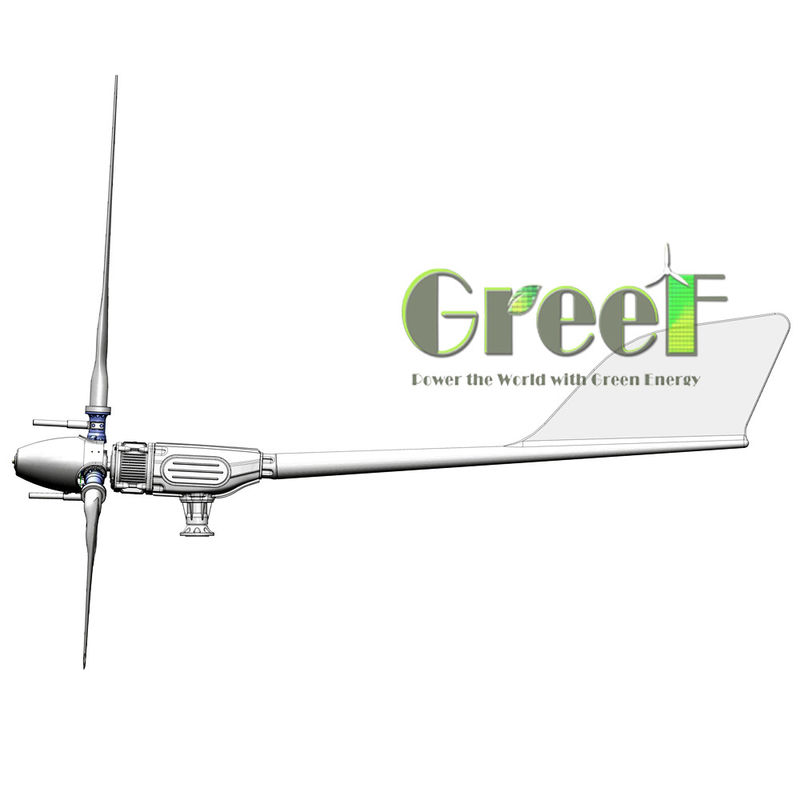

Large Image : 5kw Rooftop Low Speed Horizontal Pitch Control Wind Turbine For Home Use

Product Details:

Place of Origin:	CHINA
Brand Name:	GREEF
Certification:	CE
Model Number:	AH-5KW

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	$299-12999
Packaging Details:	Foam+plywooden case
Delivery Time:	25 DAY
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	50

Contact Now

Detailed Product Description

Rotor Diameter(m):	5.6	Blade Material & Qty.:	FRP*3
Generator Type:	3-phase PMG	Rated Wind Speed(m/s):	11
Working Wind Speed(m/s):	3-30	Rated Rotating Speed(r/min):	240
High Light:	5kw Pitch Control Wind Turbine , Rooftop Pitch Control Wind Turbine , 5kw horizontal wind generators for home use

5kw Rooftop Low Speed High Efficiency Pitch Control Horizontal Wind Turbine For Home Use

Model: 5KW variable wind turbine |Off-grid system | Folding tower

Leading technology-intelligent control, strong system scalability1. The world's best wind power control technology is combined with the self-developed variable pitch technology.

2. The hardware design uses international well-known brands, and the software uses redundant control strategies.

3. It can achieve good compatibility with various well-known brand converters and remote modules.

High security-continuous operation around the clock to achieve unattended operation

1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.

2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.

A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%

1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.

2. The working wind speed range is large (3-25m/s), and the effective running time is long.

Recommended for:

· Household,Garden,Farm,Urban ,Rooftop

· Telecom sites.

· Rural electrification programs. Island , sentry, island, sight lighting

· Automatic speed reduction protection

Technical specification

Model	AH-5KW
Rotor diameter(m)	5.6
Blade material & Qty.	FRP*3
Rated power(kW)	5
Rated wind speed(m/s)	11
Rated rotating speed(r/min)	240
Generator type	3-phase PMG
Working wind speed(m/s)	3-30
Start-up wind speed(m/s)	2.5
Survival wind speed(m/s)	60
Rated voltage(VDC)	400/240/custom made
Speed regulation method	Pitch-controlled
Wind answering method	Up wind
Stop method	Auto brake
Gale protection	Smart control+unattended
weight(kg)	400
Noise level(dB)	≤65
Tower height(m)	≥8
Tower model	Tilt-up tower
Working temperature	-20℃～+50℃

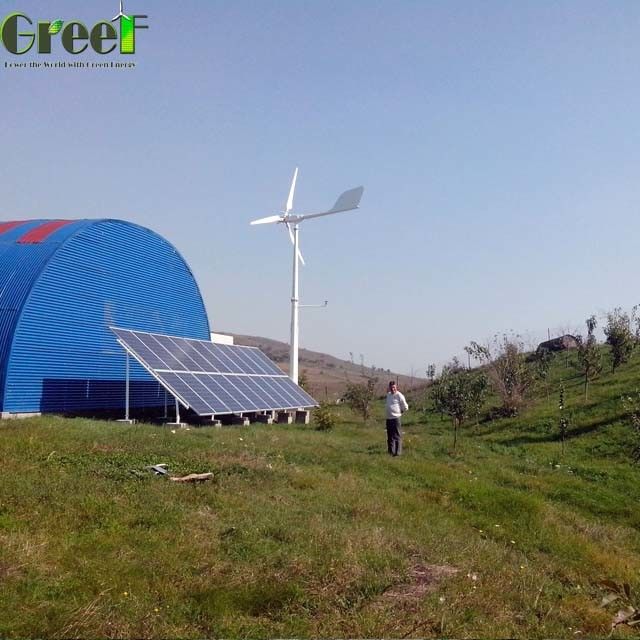

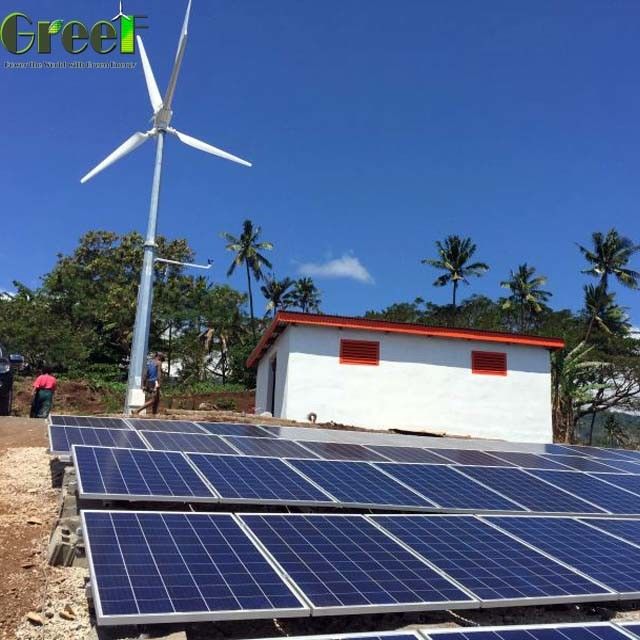

Project case

25kW Wind-solar-diesel Complementary Power Supply Project at Barracks of Garrison on Yongxing Island of Paracel Islands

New Energy Power Supply System at Communication Base Stations in Danish

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.

Systems
