5kw Windmill Low Start Up wind turbine pitch system For Home Use

5kw Windmill Low Start Up wind turbine pitch system For Home Use

5kw Wind Turbine Pitch System

Low Start Wind Turbine Pitch System

5kw pitch mechanism wind turbine

Place of Origin:

CHINA

Brand Name:

GREEF

Certification:

CE

Model Number:

AH-5KW

Contact Us
Request A Quote
5kw Windmill Low Start Up wind turbine pitch system For Home Use 5kw Windmill Low Start Up wind turbine pitch system For Home Use 5kw Windmill Low Start Up wind turbine pitch system For Home Use 5kw Windmill Low Start Up wind turbine pitch system For Home Use 5kw Windmill Low Start Up wind turbine pitch system For Home Use 5kw Windmill Low Start Up wind turbine pitch system For Home Use
Product Details
Rotor Diameter(m):
5.6
Blade Material & Qty:
FRP*3
Rated Wind Speed(m/s):
11
Generator Type:
3-phase PMG
Working Wind Speed(m/s):
3-30
Payment & Shipping Terms
Minimum Order Quantity
1set
Price
$299-12999
Packaging Details
Inner Foam + Plywooden case
Delivery Time
25DAY
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
25 Units
RELATED PRODUCTS
Good price 5.6M Rotor Diameter Home Wind Turbine System For Customer Requirements online Video

5.6M Rotor Diameter Home Wind Turbine System For Customer Requirements

Get Best Price
Good price Up Wind Yawing Pitch Control Wind Turbine 11.5 M/S Rated Wind Speed 60m/S 133.8mph online Video

Up Wind Yawing Pitch Control Wind Turbine 11.5 M/S Rated Wind Speed 60m/S 133.8mph

Get Best Price
Good price Start Torque 0.3N.M Three Phase Permanent AC Magnet Generator For Wind Electric Generator online Video

Start Torque 0.3N.M Three Phase Permanent AC Magnet Generator For Wind Electric Generator

Get Best Price
Good price Start Torque 0.3N.M Pitch Control Wind Turbine with FRP Blades Material Quantity 3PCS online Video

Start Torque 0.3N.M Pitch Control Wind Turbine with FRP Blades Material Quantity 3PCS

Get Best Price
Contact Us
Contact Now
Product Description

5kw windmill low start up wind turbine for home use

Model: 5KW variable wind turbine |Off-grid system | Folding tower

Leading technology-intelligent control, strong system scalability
1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
5kw Windmill Low Start Up wind turbine pitch system For Home Use 0
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-5KW
Rotor diameter(m)
5.6
Blade material & Qty.
FRP*3
Rated power(kW)
5
Rated wind speed(m/s)
11
Rated rotating speed(r/min)
240
Generator type
3-phase PMG
Working wind speed(m/s)
3-30
Start-up wind speed(m/s)
2.5
Survival wind speed(m/s)
60
Rated voltage(VDC)
400/240/custom made
Speed regulation method
Pitch-controlled
Wind answering method
Up wind
Stop method
Auto brake
Gale protection
Smart control+unattended
weight(kg)
400
Noise level(dB)
≤65
Tower height(m)
≥8
Tower model
Tilt-up tower
Working temperature
-20℃～+50℃

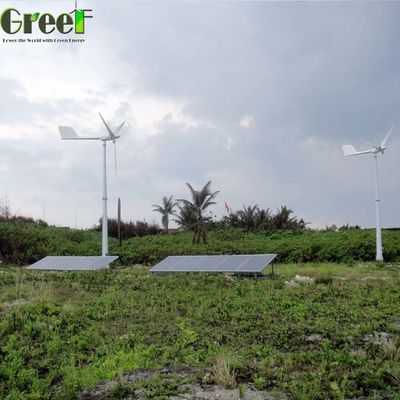

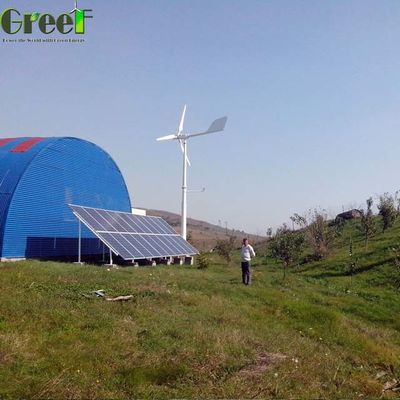

Project case

25kW Wind-solar-diesel Complementary Power Supply Project at Barracks of Garrison on Yongxing Island of Paracel Islands


5kw Windmill Low Start Up wind turbine pitch system For Home Use 1
5kw Windmill Low Start Up wind turbine pitch system For Home Use 2

New Energy Power Supply System at Communication Base Stations in Danish


5kw Windmill Low Start Up wind turbine pitch system For Home Use 3
5kw Windmill Low Start Up wind turbine pitch system For Home Use 4

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
5kw Windmill Low Start Up wind turbine pitch system For Home Use 5
5kw Windmill Low Start Up wind turbine pitch system For Home Use 6
5kw Windmill Low Start Up wind turbine pitch system For Home Use 7
Systems
5kw Windmill Low Start Up wind turbine pitch system For Home Use 8
5kw Windmill Low Start Up wind turbine pitch system For Home Use 9
5kw Windmill Low Start Up wind turbine pitch system For Home Use 10
5kw Windmill Low Start Up wind turbine pitch system For Home Use 11
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
5kw Windmill Low Start Up wind turbine pitch system For Home Use 12
5kw Windmill Low Start Up wind turbine pitch system For Home Use 13
5kw Windmill Low Start Up wind turbine pitch system For Home Use 14
5kw Windmill Low Start Up wind turbine pitch system For Home Use 15
5kw Windmill Low Start Up wind turbine pitch system For Home Use 16
