20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use

20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use
20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use

Large Image :  20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use

Product Details:
Place of Origin: CHINA
Brand Name: GREEF
Certification: CE
Model Number: AH-20KW
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $299-12999
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAY
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 25 Units
Contact Now
Detailed Product Description
Rated Power: 300w-30kw Rated Voltage: 12V / 24V / 48V
Type: Wind Power Generator Application: Electricity Generation
Warranty: 2 Years Generator Type: 3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine
Color: Multicolor
High Light:

3 Phase Pitch Control Wind Turbine

,

Pitch Control Wind Turbine 20kw

,

20kw wind turbine pitch control system

20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use

Why choose AH-20KW wind turbine?
Leading technology-intelligent control, strong system scalability
1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.

A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 0
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-20KW
Wind rotor diameter (m)
9.8
Blade material and quantity
Fiber glass reinforced * 3
Rated power (w)
20,000
Rated wind speed (m/s)
11
Rated rotate speed (rpm)
175
Working wind speed (m/s)
3-25
Start up wind speed (m/s)
2.5
Survived wind speed (m/s)
59.5
Working voltage (v)
DC450V
Speed regulation method
Pitch control + Active yawing +electromagnet brake
Stop method
Pitch controlled brake +Active yawing
Generator style
Three phase, permanent magnet
Wind turbine weight (kg)
1210
Products Description

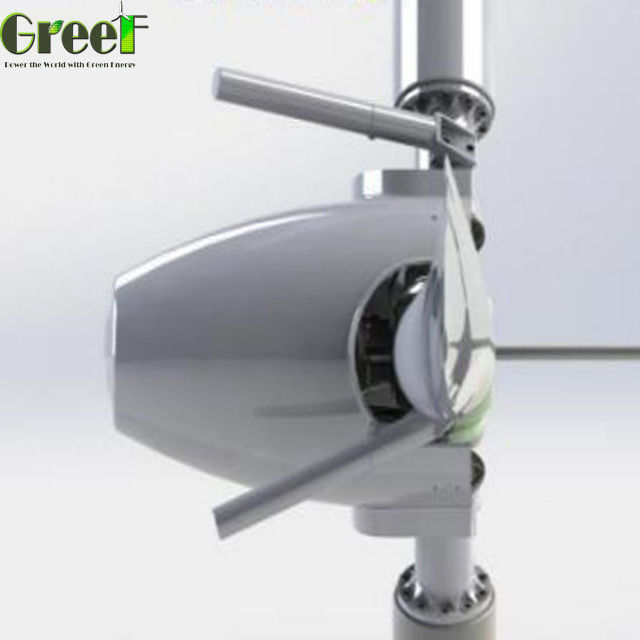

20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 1
Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
Project case

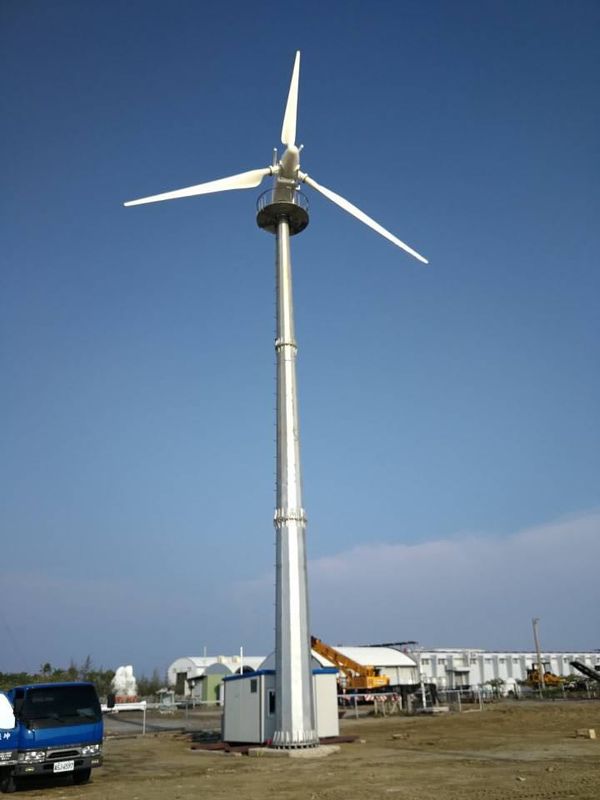

20kW In France


20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 2
20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 3

20kW In Kashgar


20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 4
20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 5

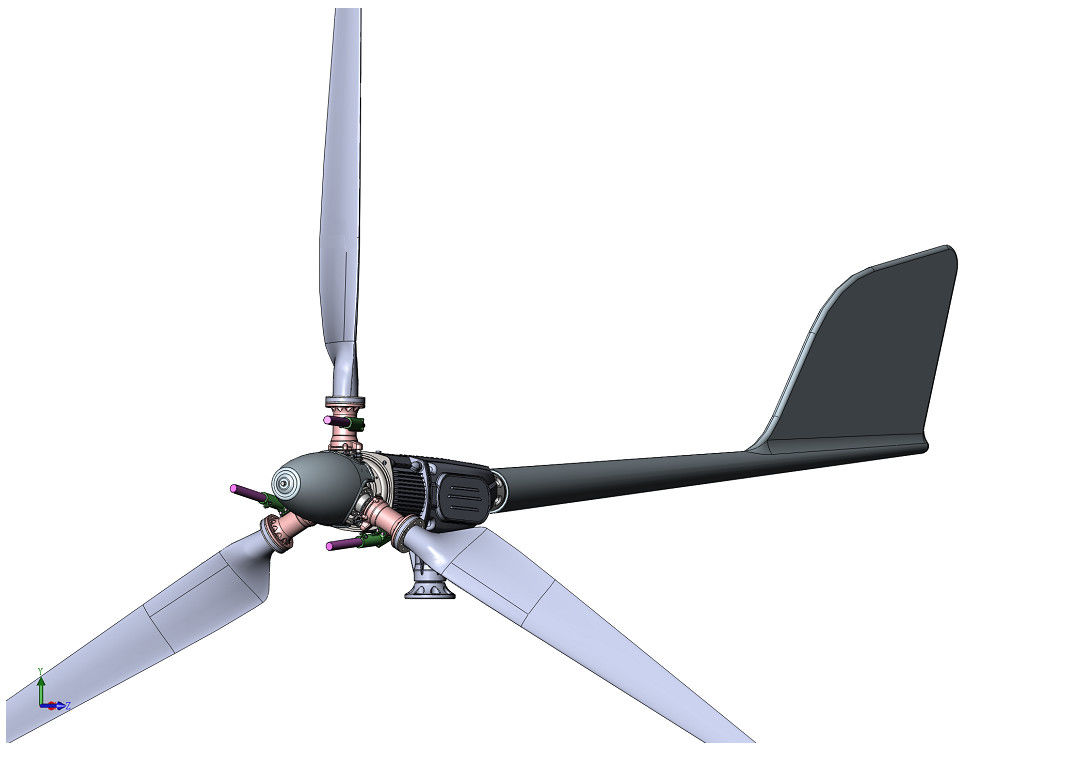

Systems
20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 6
20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 7
20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 8
20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 9
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 10
20kw 3 Phase Low Start Wind Speed Pitch Control Wind Turbine For Home Use 11
